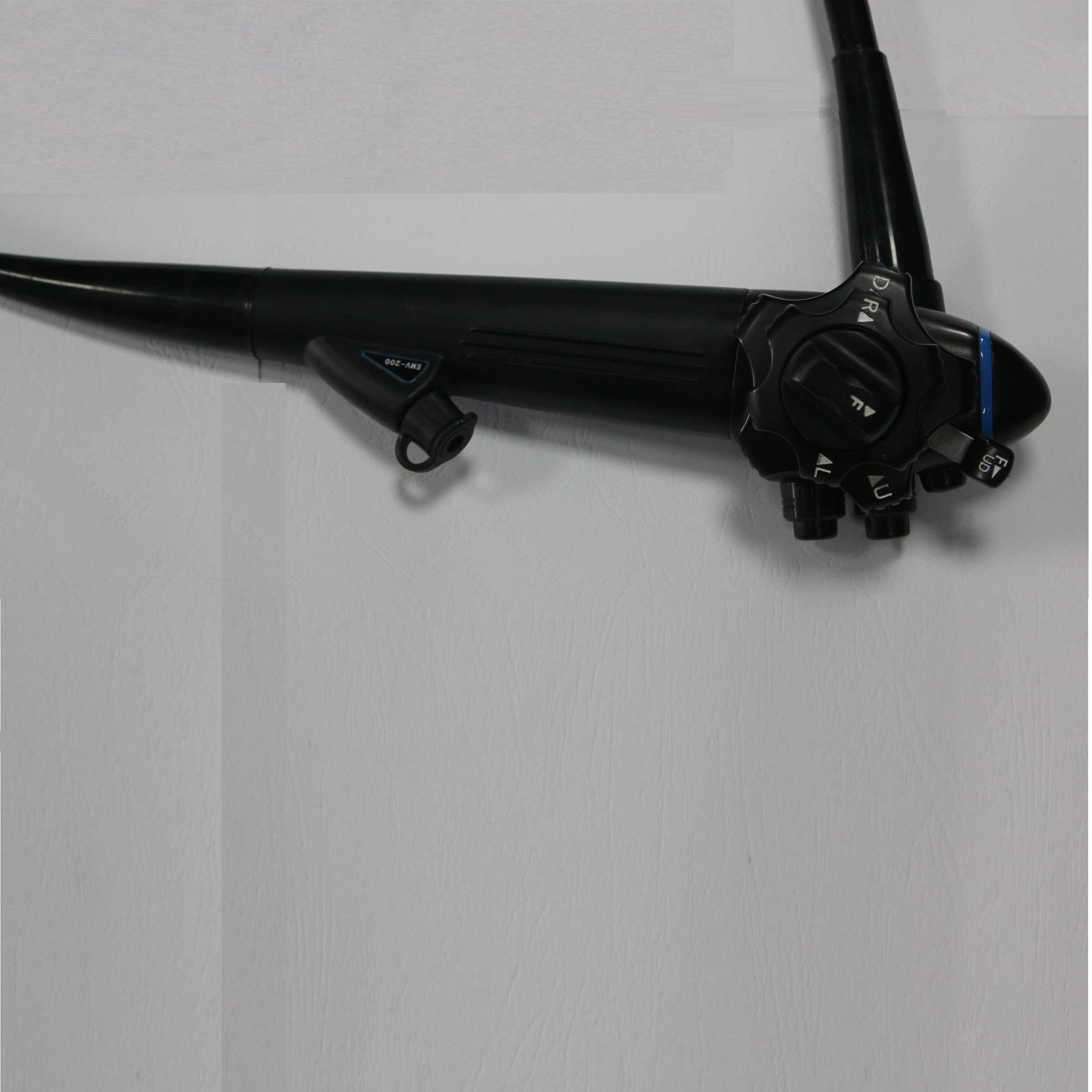

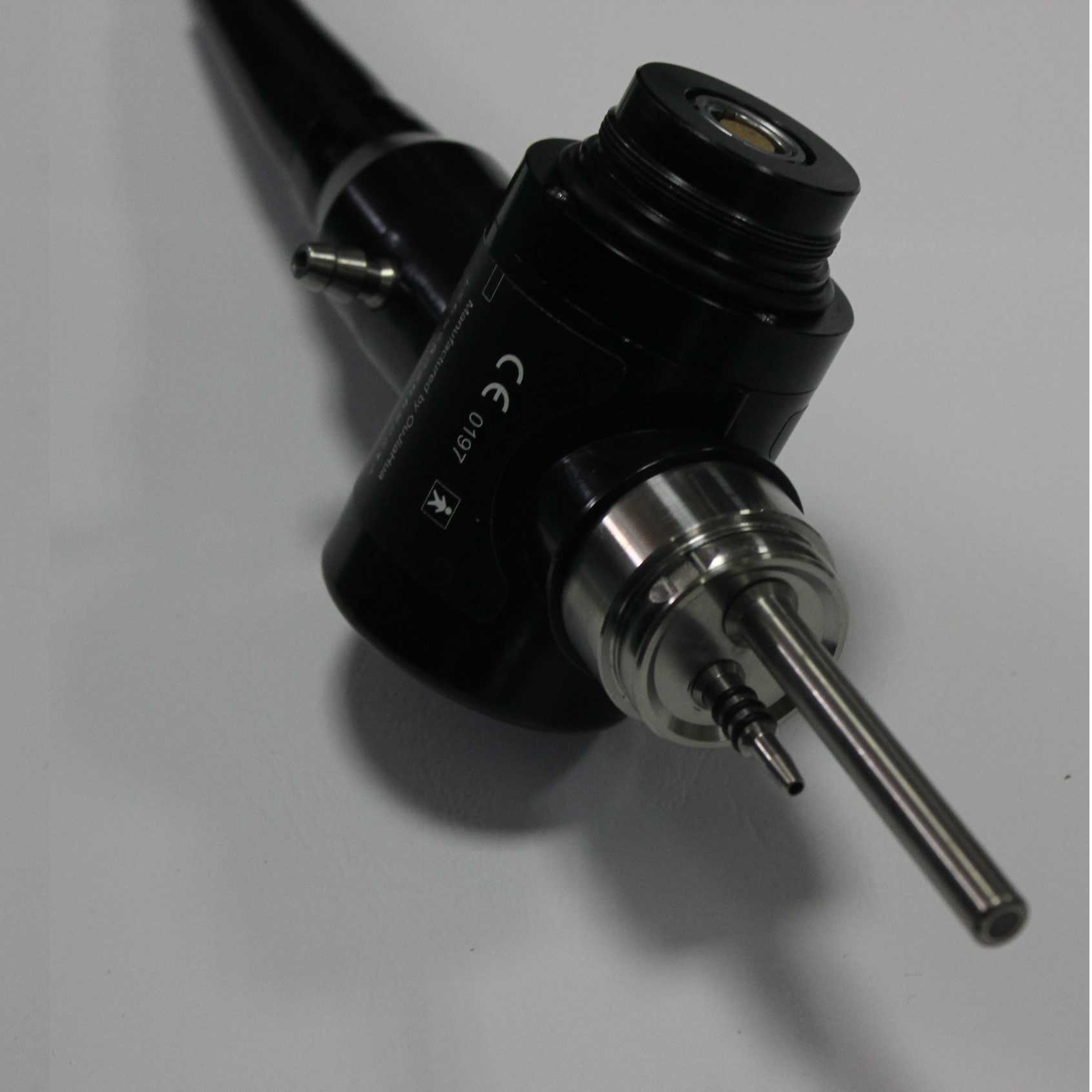

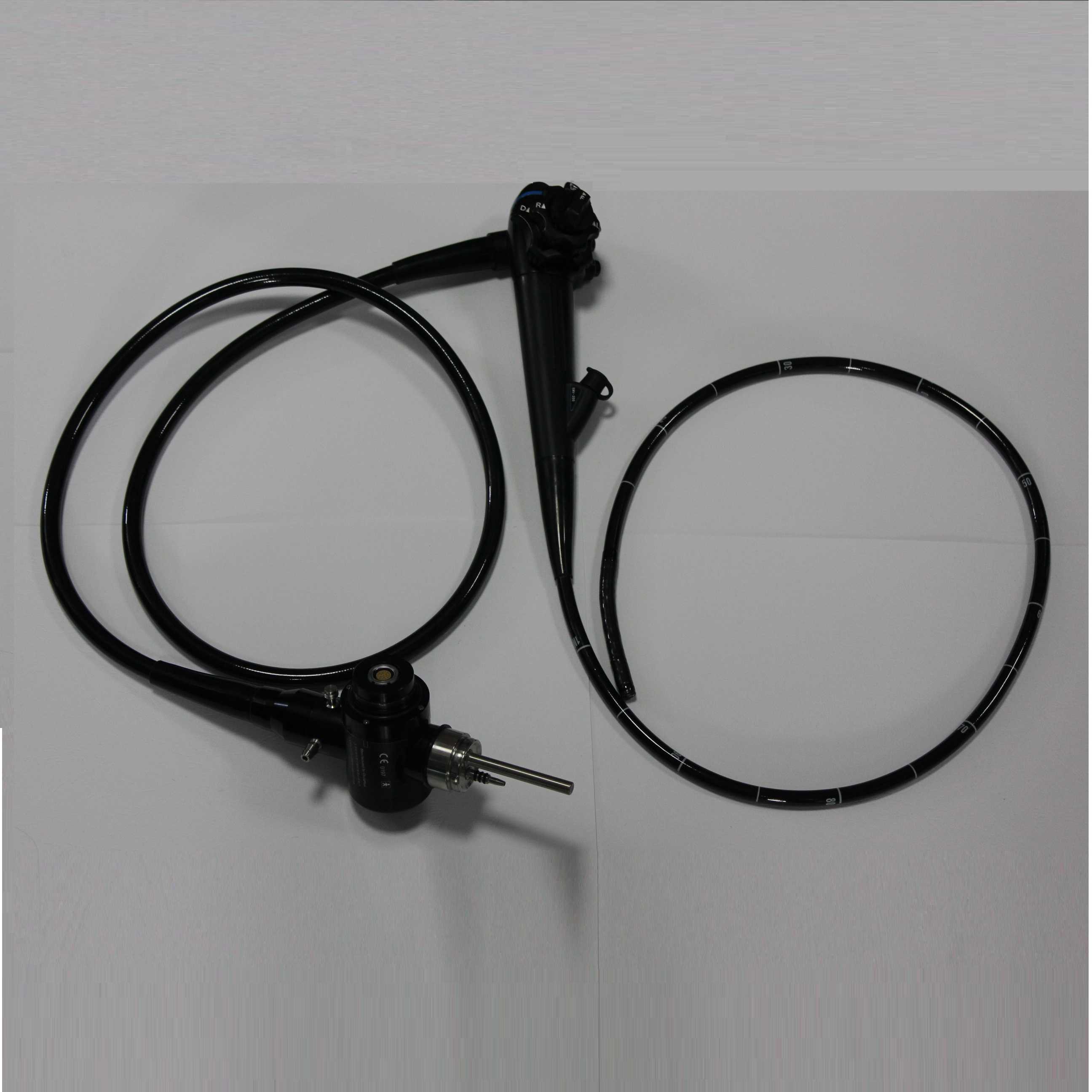

Video Gastroscope -CMOS HD Option GV-200 HD

Availability:
Quantity:

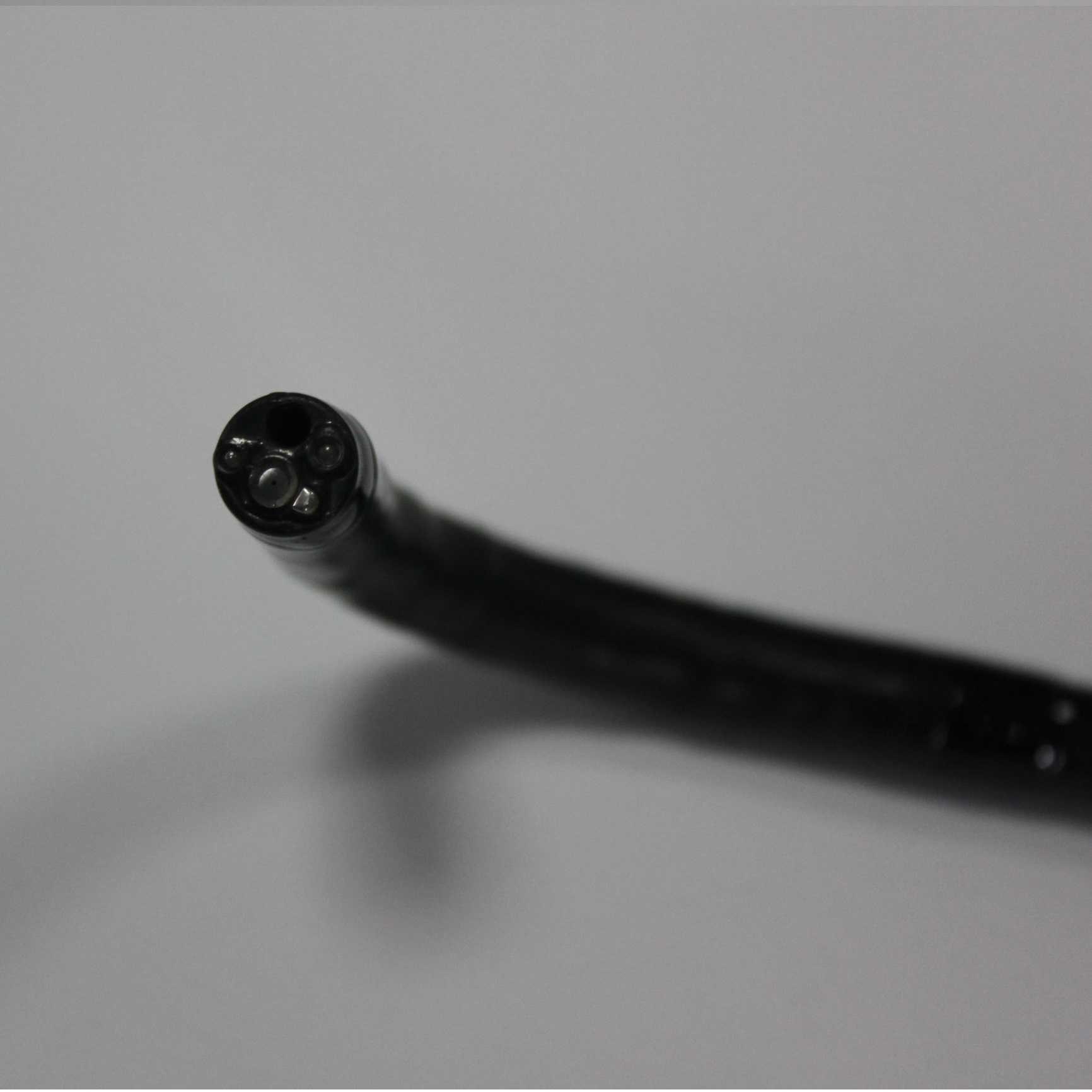

1. Diameter of distal- end:中9.8 mm

2. Diameter of insert tube:中9.6 mm

3. Clamp aperture:中2.8mm

4. Working length: 1030 mm

5. Total length: 1330 mm

6. View of field: 140 。

7. Depth of view: 3-100mm

8. Tip deflection:up 210° down 90° L/R 100°

9. Resolution:CMOS1,000,000 Pixels high resolution

10.Bending operation: Traction chain structure, whole sealed waterproof

11.lmage display: Two image display optional

12.Split machine : Main part and light source are splited

13.Quality certification :

14.Warranty : One year(free), permanent repairs (not free)

15.Package size :64*18*48cm (G.W:5.18kgs)


Cold light source

1. Voltage: 220V-240V

2. Frequency: 50-60HZ

3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp

4. lumination: 70000LX (using special measuring tools)

5. Color Temperature: 3000~7000K

6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)

7.Electric switch : AB light two sets light source

8.Main Function:

    Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.

    Built with micro axial fan cooling temperature.

    Adopt dimming electronic control unit organization.

    Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life,convenience to the operation

9.Package box:54*47*27.3cm (10.54kgs)


LCD Display

1. Display size: 15"

2. Power Supply: External Power Supply 12V

3. Resolution: 1024X768

4. Display Ratio: 4:3

5. Color: 16.7M

6. Camoration Brightness: 180士10 cd/m

7. Max.Brightness : 400 cd/m

8. Contrast Ratio: 700:1

9. Viewing Angle: 120/140 Response Time: 8ms

10.Package size : 44*36.5*16.5cm (G.W.:6.0kgs)

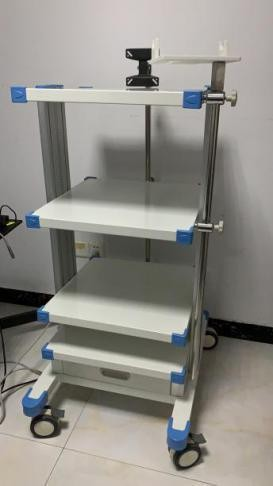

Equipment vehicles

1. Size : 500 * 700 *1350mm

2. Package size:118.5*63.5*22cm (G.W.:44.5kgs)



GV-200 HD (1)GV-200 HD (1)GV-200 HD (2)GV-200 HD (3)GV-200 HD (2)GV-200 HD (4)
