Video ENT Endoscope XJ-ENT(Adult/Kid)

Availability:
Quantity:

1. Diameter of distal- end:5.0mm/ 3.8mm

2. Diameter of insert tube:5.0mm/ 3.8mm

3. Clamp aperture:2.0mm/1 .0mm

4. Working length: 410mm/530mm

5. Total length: 790 mm

6. View of field: 120。

7. Depth of view: 3- 50mm

8. Tip deflection:up 160° down 130°

9.Bending operation : Traction chain structure, whole sealed waterproof

10.Image display : Two image display optional

11.Split machine : Main part and light source are splited

12.Quality certification:

13.Warranty : One year(free), permanent repairs (not free)

14.Package size :64*18*48cm (G.W:5.18kgs)


Video processor and light cold source machine

1.Lamp: LED light (80W white)

2.Power: 220-240V; 50-60HZ

3.Color temperature:≥5300K

4.Video signal output: HDMI x2,DVI

5.Sharpness adjustment :0-3 grade

6.Withe balance : Auto white balance/ Manually white balance

7.Gain function: 1-3 grade

8.Air pump pressure : 30-60Mpk,

9.Image side :Octagon/round

10.Air flow : 4-10 L/min

11.Package size :55*46*50cm (G.W.:16kgs)

12.Main Function:

    Brightness , Contrast,Tone,Saturation 0-100 grade can be adjustment .

    Large screen frozen, small screen display continue .Digital widescreen and picture in picture function.

    With USB interface support picture and video record function

    Can add only gastroscope/colonoscope .. directly on this machine if hospital need in future .


LCD Monitor

1.Display size: 24"

2.Resolution: 1920 X 1080

3.Display Ratio: 16:9

4.Color: 16.7M

5.Camoration Brightness: 180土10 cd/m

6.Max.Brightness: 250 cd/ m

7.Interface :VGA/HDMI

8.Package size : 60*16*50cm (G.W:6 kgs)


Equipment vehicles

1. Size : 500 * 700 *1350mm

2.Package size:119*64*22cm (G.W.28.0kgs)

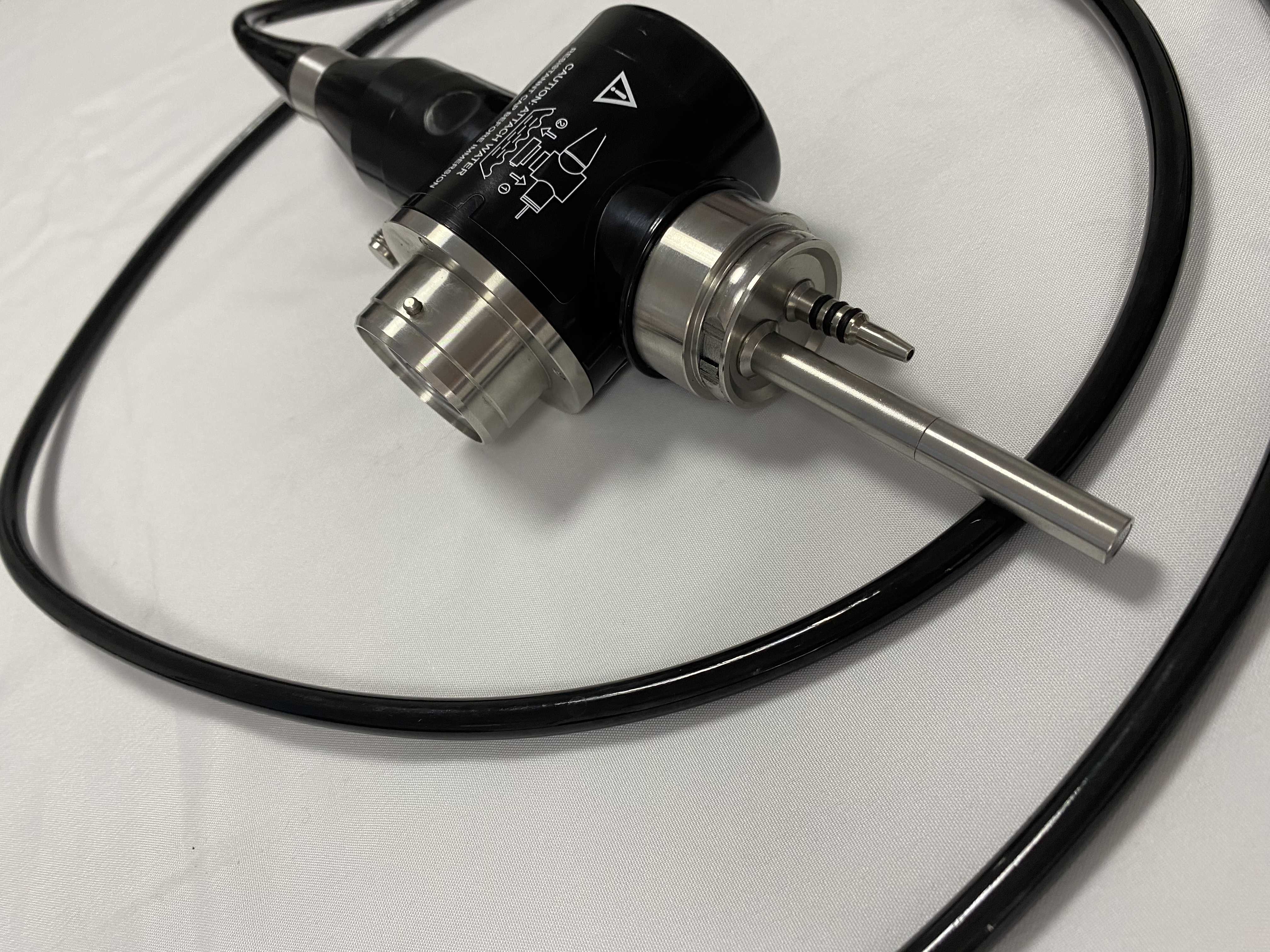

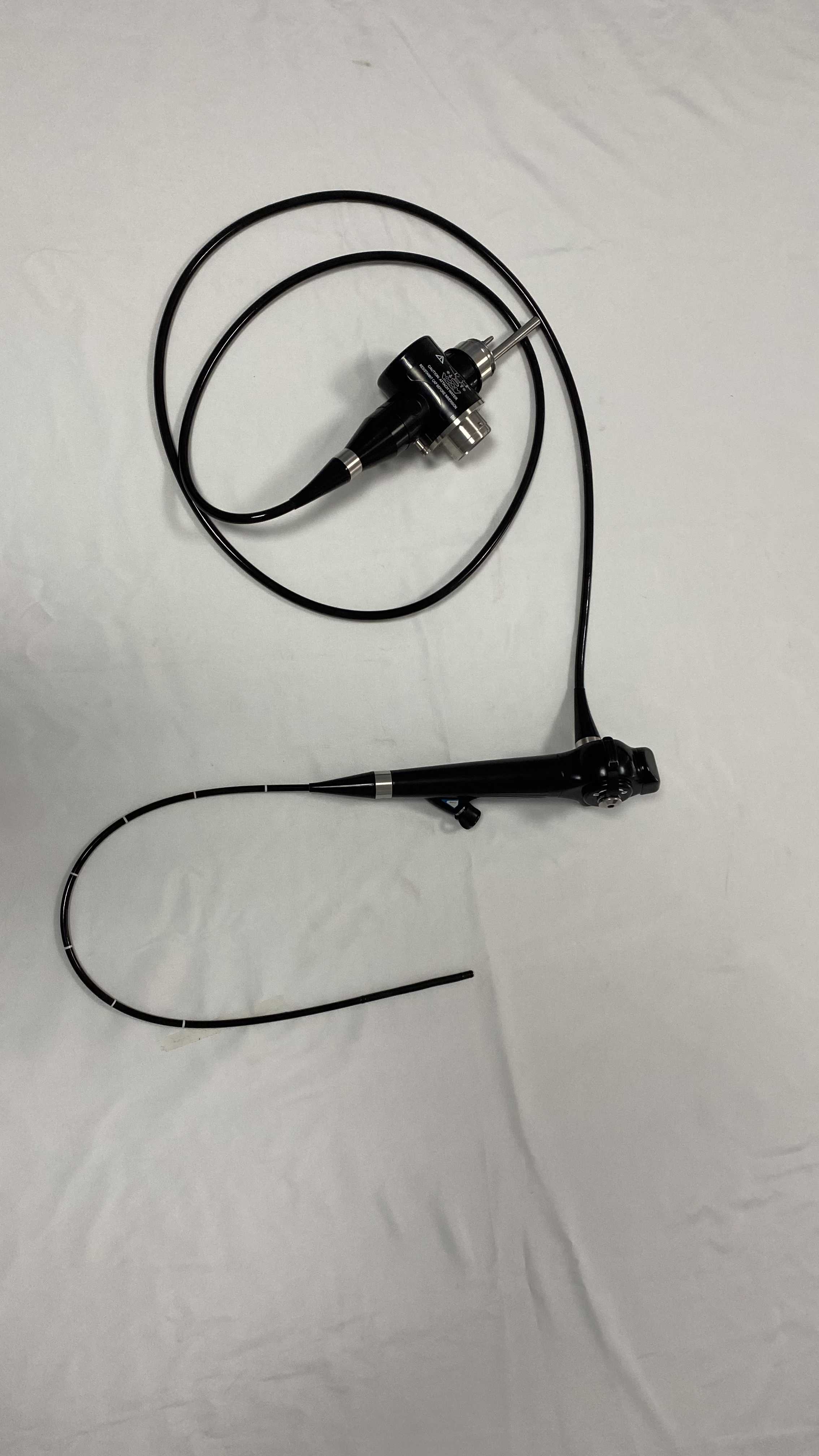

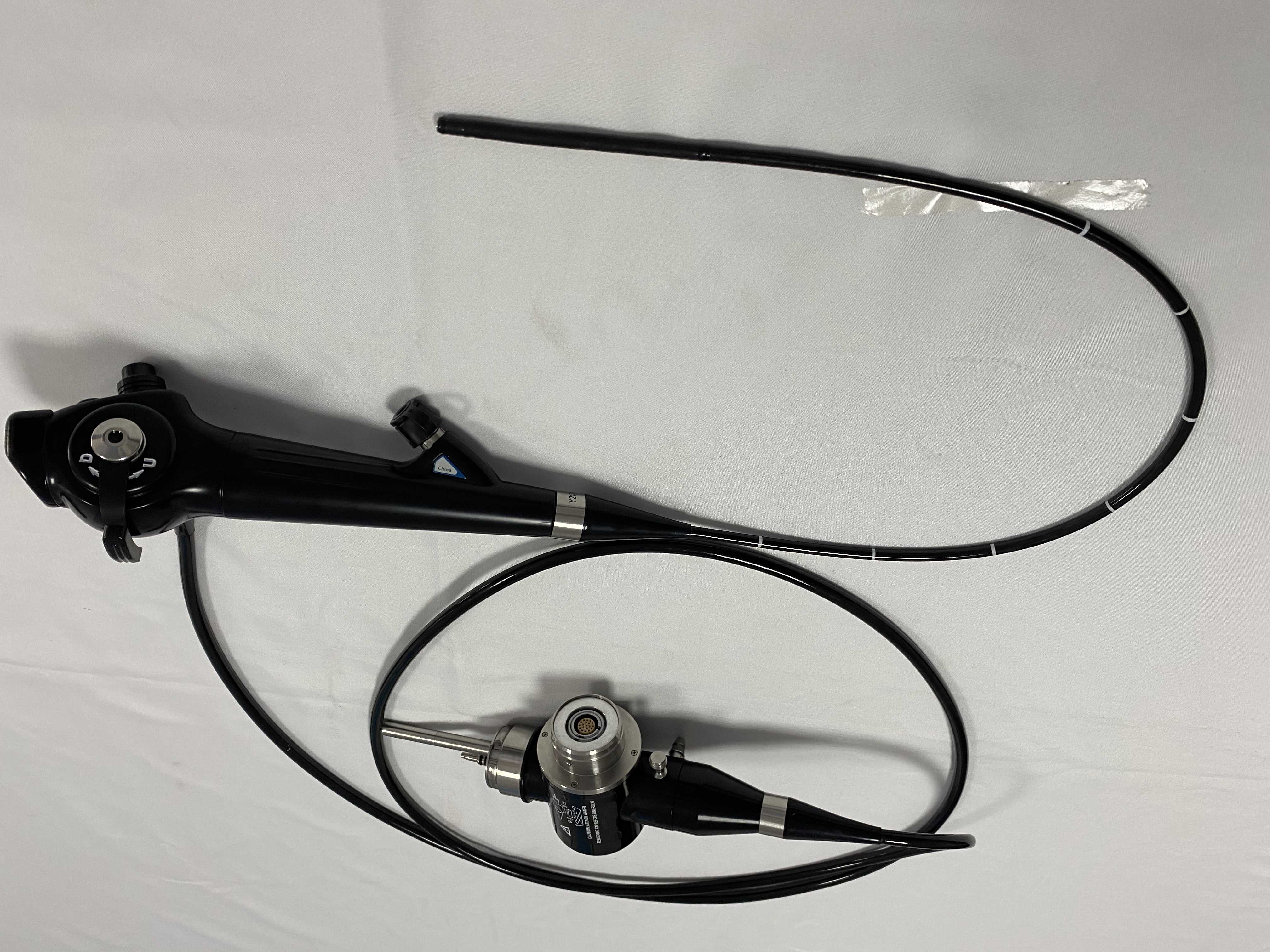

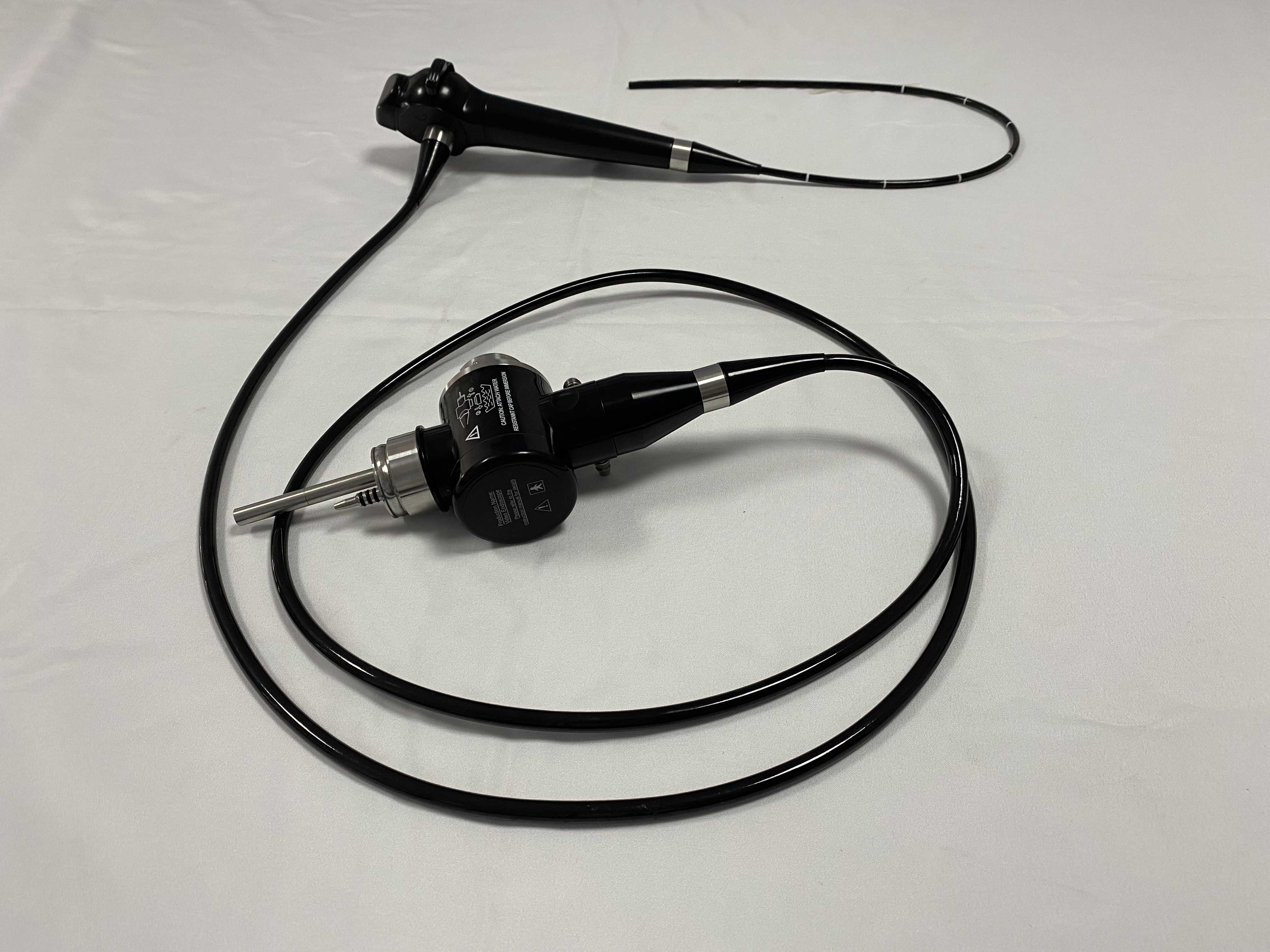

XJ-ENT (2)XJ-ENT (1)XJ-ENT (3)XJ-ENT (4)
