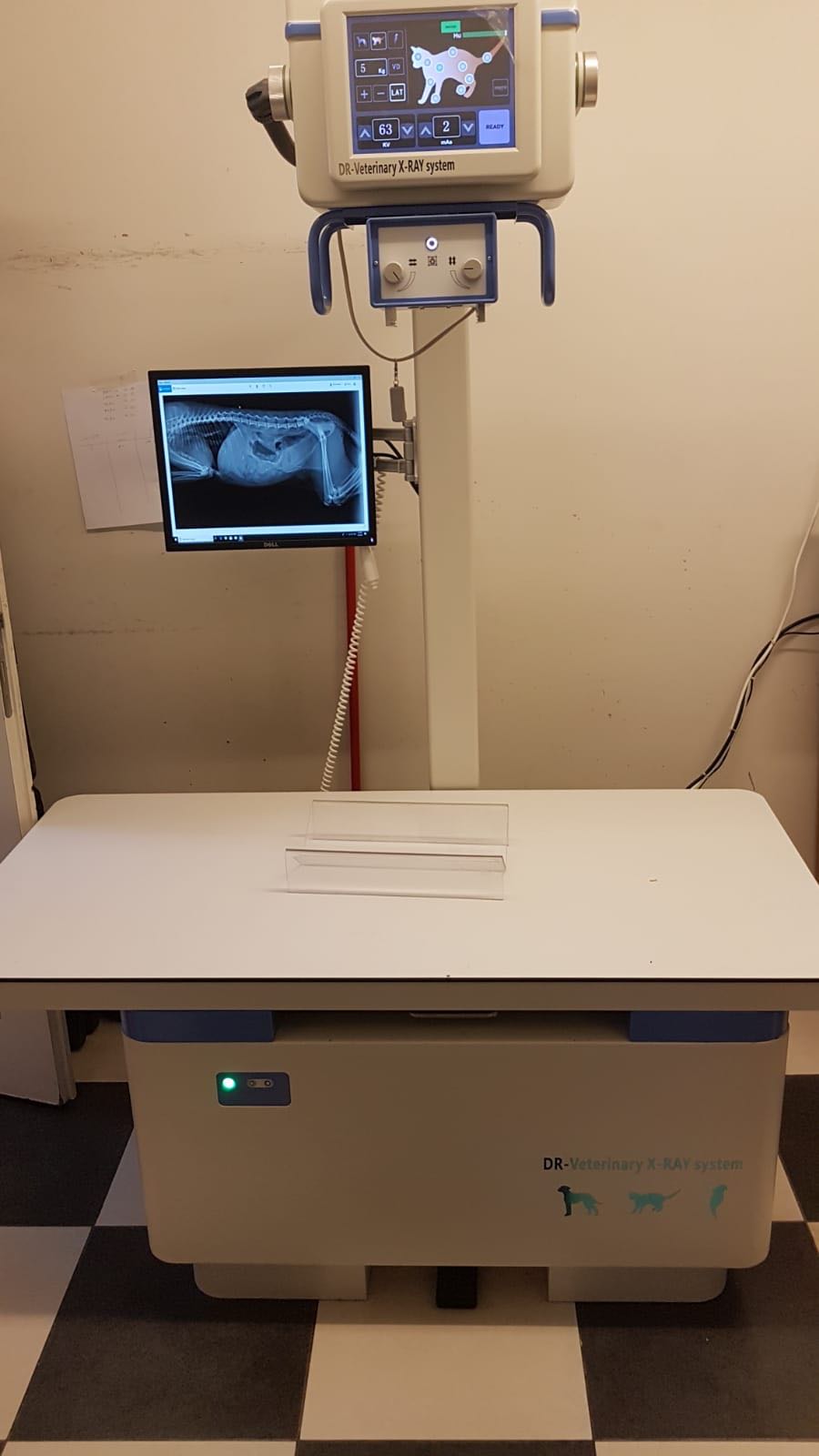

Veterinary Digital Radiography System AVM-DR10

1.Big power output high frequency high voltage generator meets all types clinical need

2.Full Size High Resolution Flat Panel Detector

3.Whole-radiography Chain Design based on the various body part, provide according different radiography parameters and imaging optimizationfunction

4.Standard with high level orthopedics surgery radiography measurement software package for easy use.

5.10inch big LCD touch screen, easy exposure parameters setting.

6.Compact design for the table and column fit small xray room.

7.Good auto trouble-testing fuction for easy maintainence

Xray Generator and Parameter Setting
Output power	5kW
Input power	220 V ± 10% (50 Hz / 60 Hz)
Focus	Dual focus: 0.5/ 1.5mm
Tube Voltage range	40~120 kV
Max tube current	200 mAs
mA Range	32-100 mA
Tube current auto-calibration	Yes
Parameter Set	LCD touch screen by veterinary size&weight&body part (first in China vet medical area)
APR (AUTO parameter) amount	>500 groups
Service	Intelligent Error test
Display	DELL + Professional Medical Display
Flat Panel Detector
Detector Type	amorphous silicon TFT
scintillators	cesium iodide;
Size	17“×17“
Pixel Size	139micron
Resolution	3.6lp/mm
Pixel Array	3072×3072
Surface material	Carbon Fibre Suface
Mechanical Control
SID	110cm
Projection Size	43cm x 43cm
Column Height	1800mm
Table Size	1400 x 700 x820 mm
Touch Screen	10inch
Table control movement	Fiber board surface, electromagnet control, free floating
Software Function
Detector Auto-calibration	Yes
parameter setting by graphics	Yes
Auto Optimization for different body parts	Yes
real-time auto window adjustment	Yes
Real-time image edge enhance	Yes
Real-time auto ROI cut	Yes
Professional Surgical Software Package	Yes
Advanced Orthopedics Measurement Software Package	Yes
