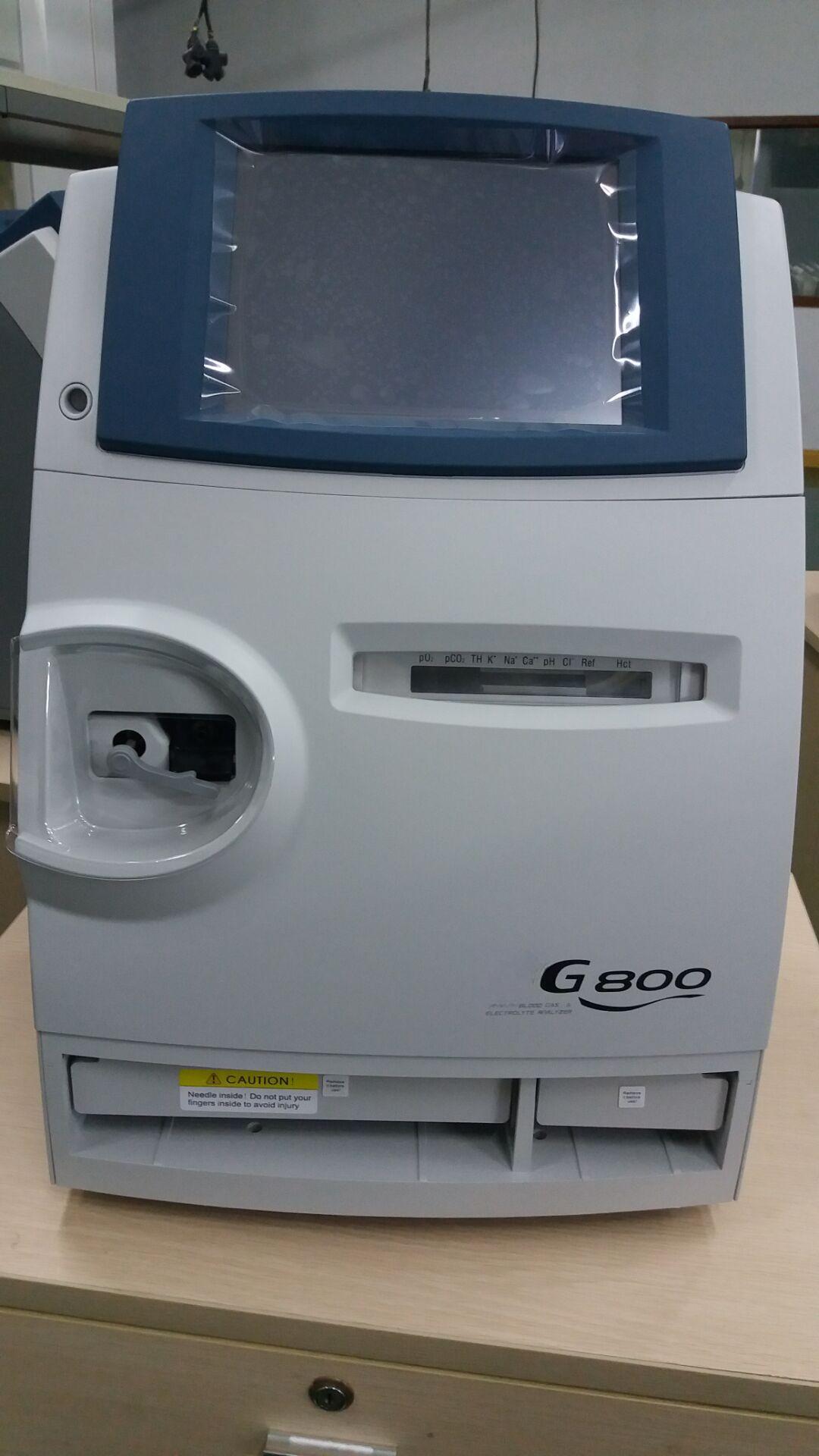

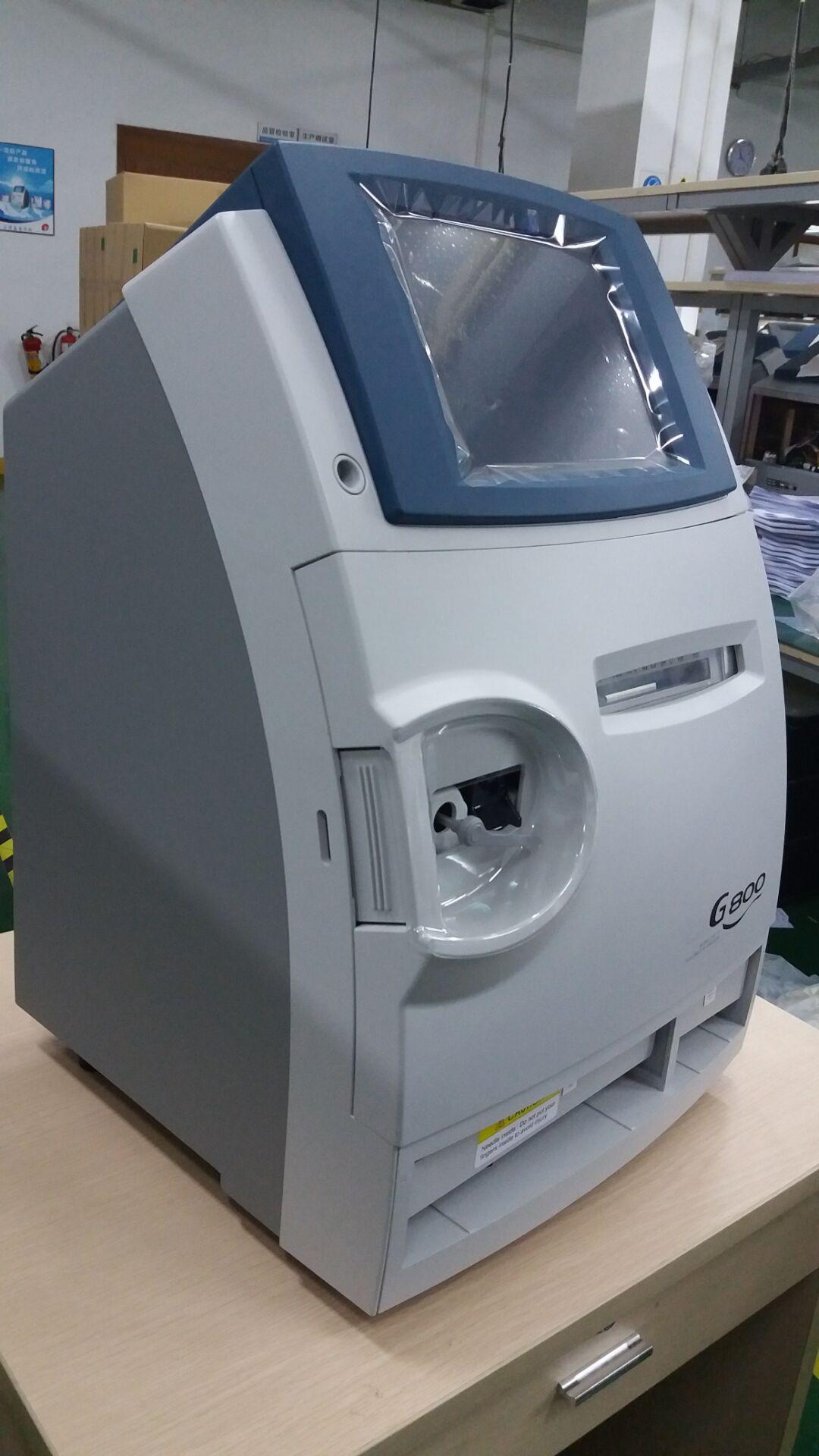

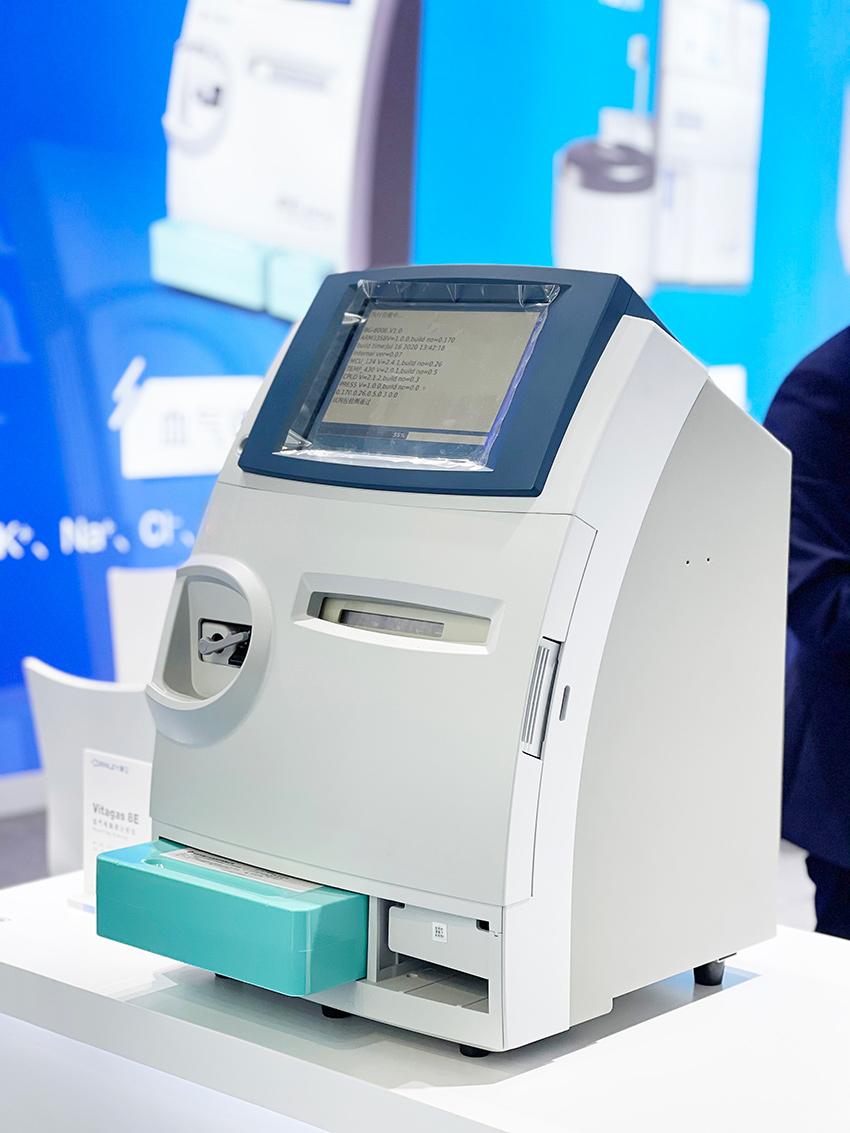

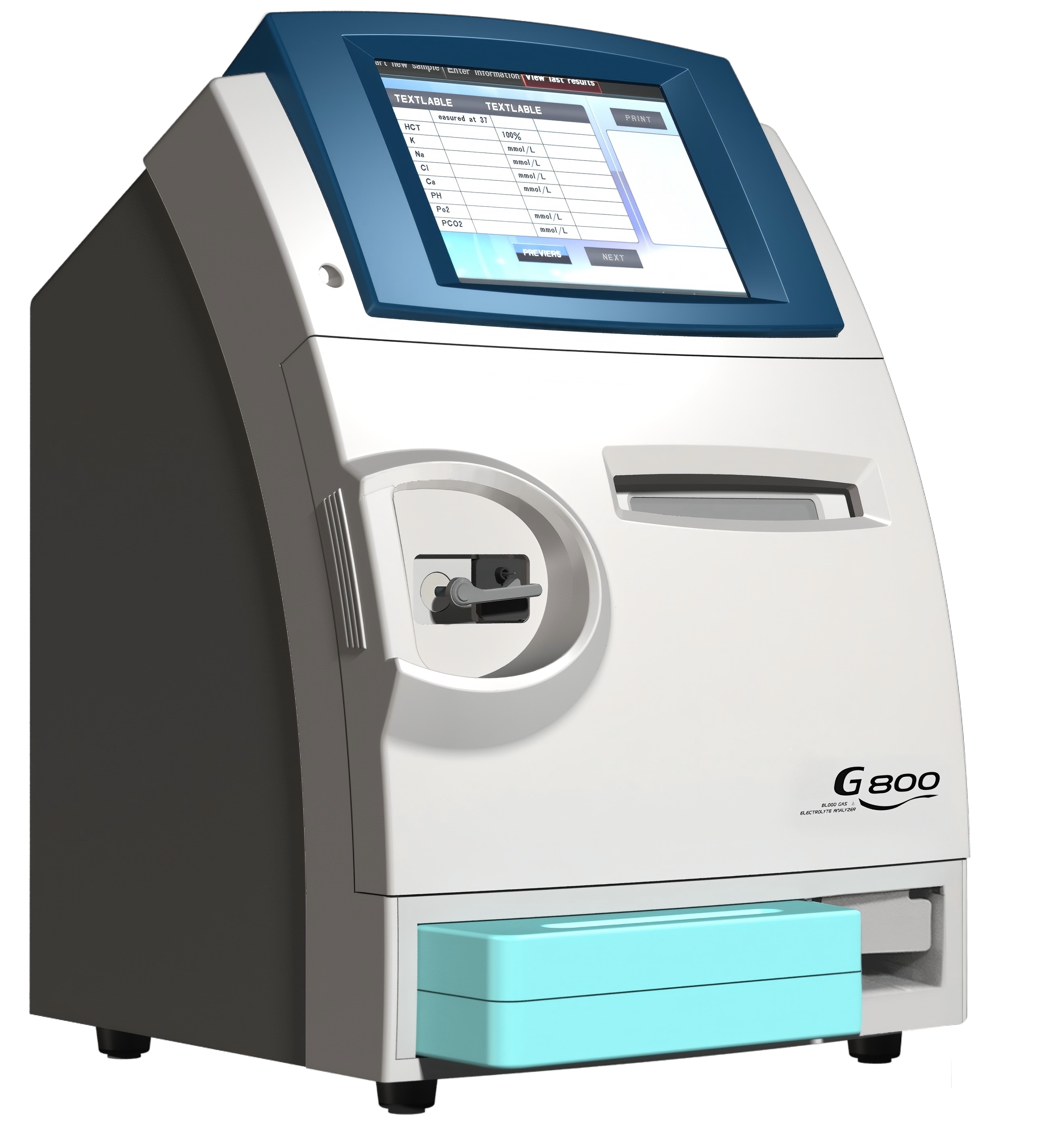

| Item: | Blood & Gas Analysis System |
| Type: | Blood & Gas Analysis System |
| Certificate: | CE ISO13485 |
| OEM & ODM: | Acceptable |
| Test Menu: | pH, pCO2, pO2, K, Na, Cl, Ca, Hct |
| Sample: | Whole blood, Serum, Plasma, Dialysate, CSF |
| Input Parameter: | Patient Temperature, Hemoglobin, FIO2, B.P. |
| Interface: | 1. Serial Line RS-232. 2. TCP/IP interface, LIS connection under HL7 protocol. 3. USB port. 4. Integrated Bar-code reader. |
| Analysis Time: | <90s |
| Sample Volume: | 1. 95uL whole blood (120uL if with Glu and Lac). 2. 50uL capillary blood. |
| Calibration: | 1. Automatic. 2. Programmable 1-point and 2-point calibration. |
| Display: | 10.4'' TFT touch screen |
| Battery: | Nickel-metal Hydride Battery, 3.0Ah |
| Printer: | Built-in Thermal Printer, 70mm |
| Barcode Reader: | Up to 14 Kinds Barcode Type |
| Work Environment: | 15ºC~30ºC |
| Storage Environment: | 5ºC~40ºC |
| Power Supply: | 100-240V 50/60HZ |
| Instrument Dimension: | 400(W)*574(H)*344(D) mm3 |

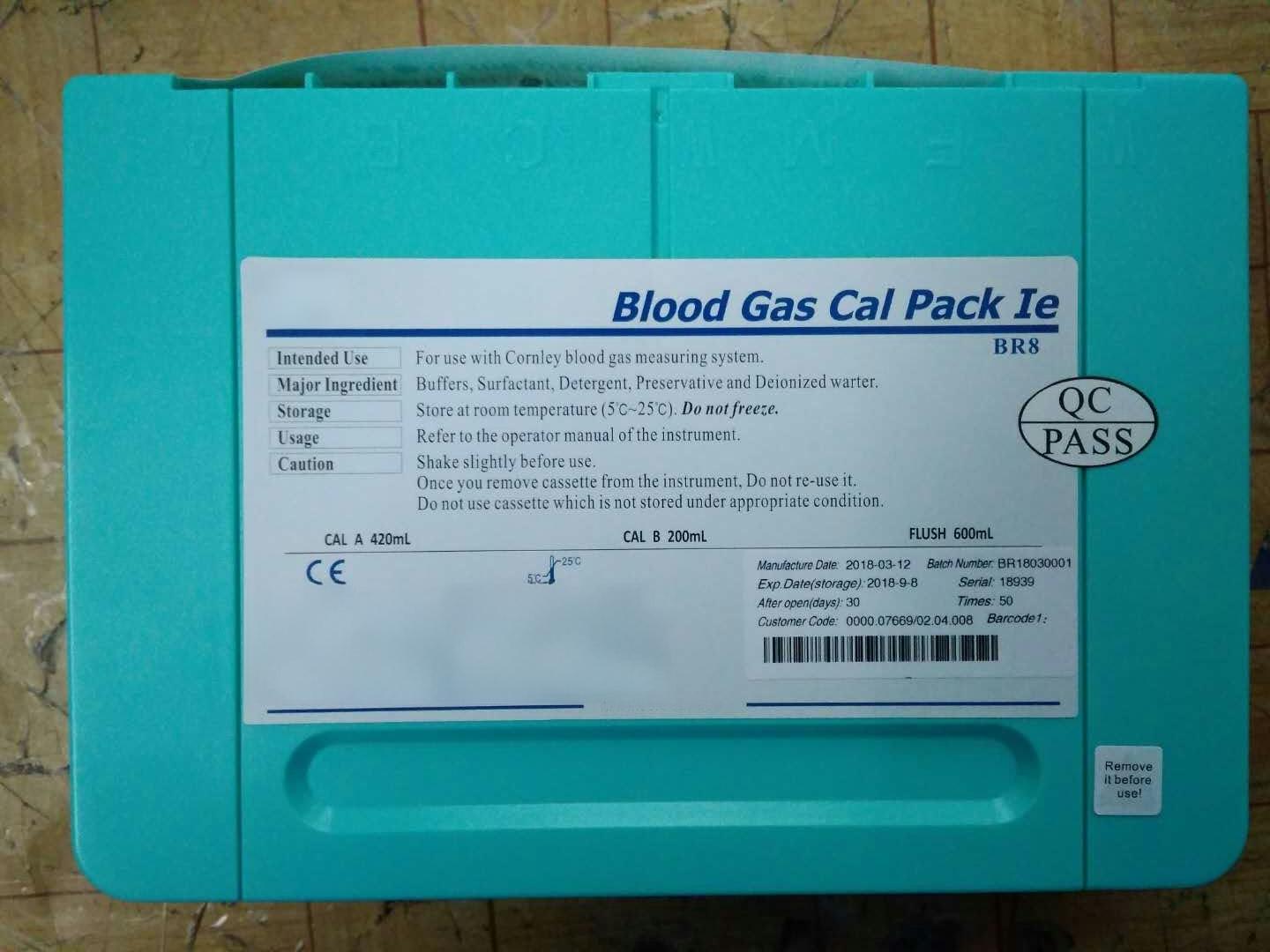

| CAL PACK: | 258(W)*180(H)*70(D) mm3 |
| AutoQC Cartridge: | 103(W)*180(H)*70(D) mm3 |
| Instrument Weight: | 18kg |
