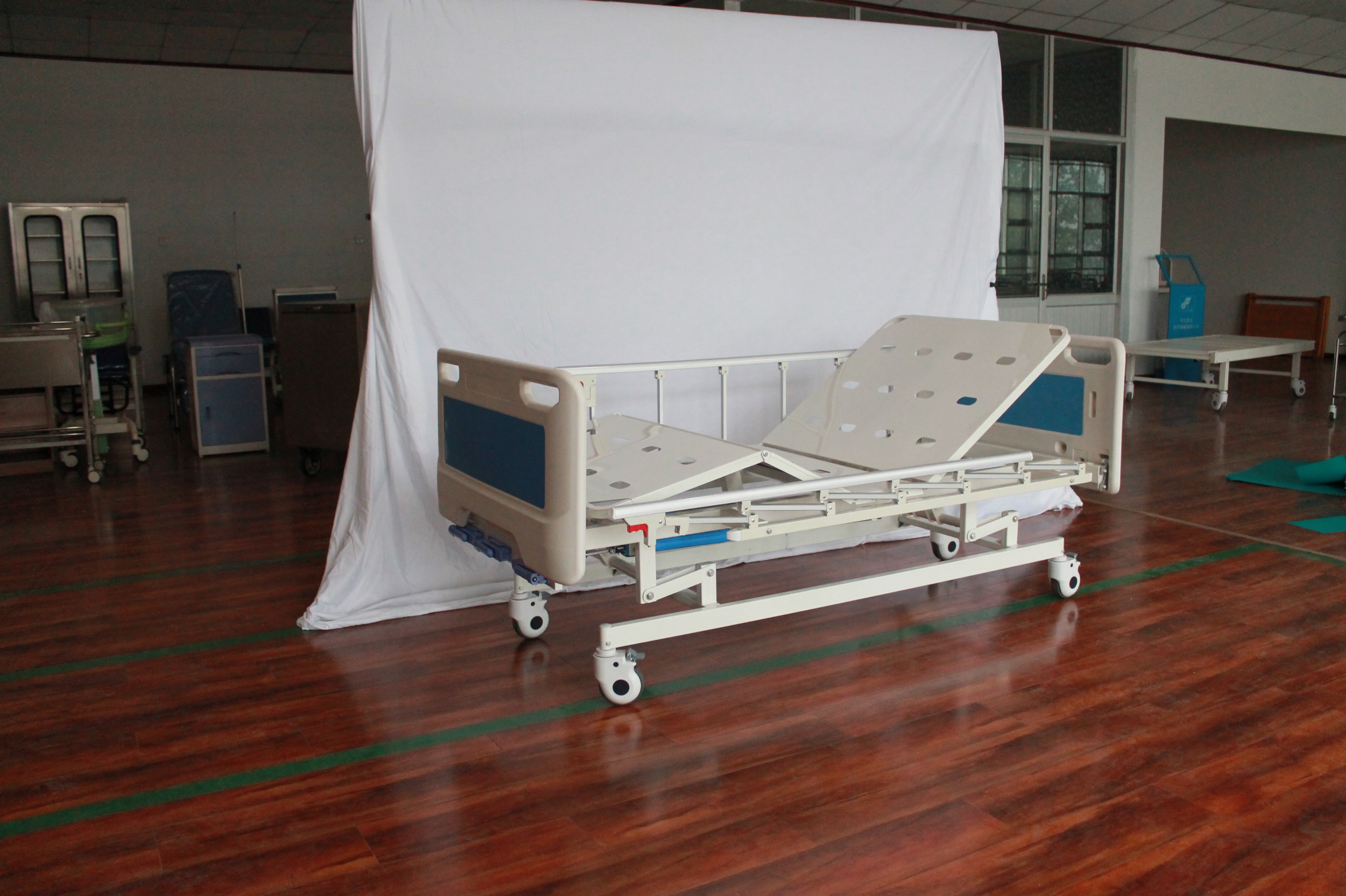

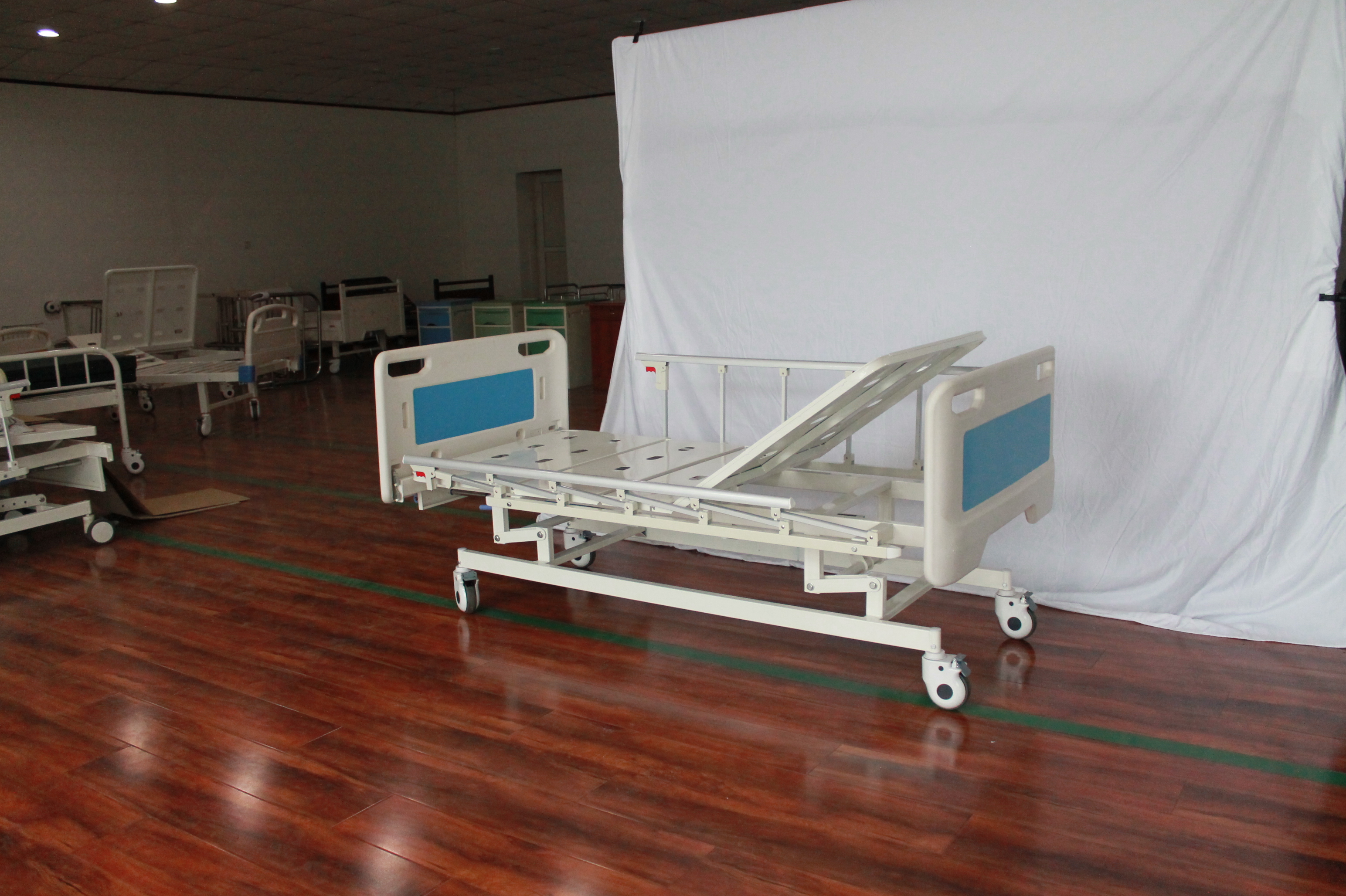

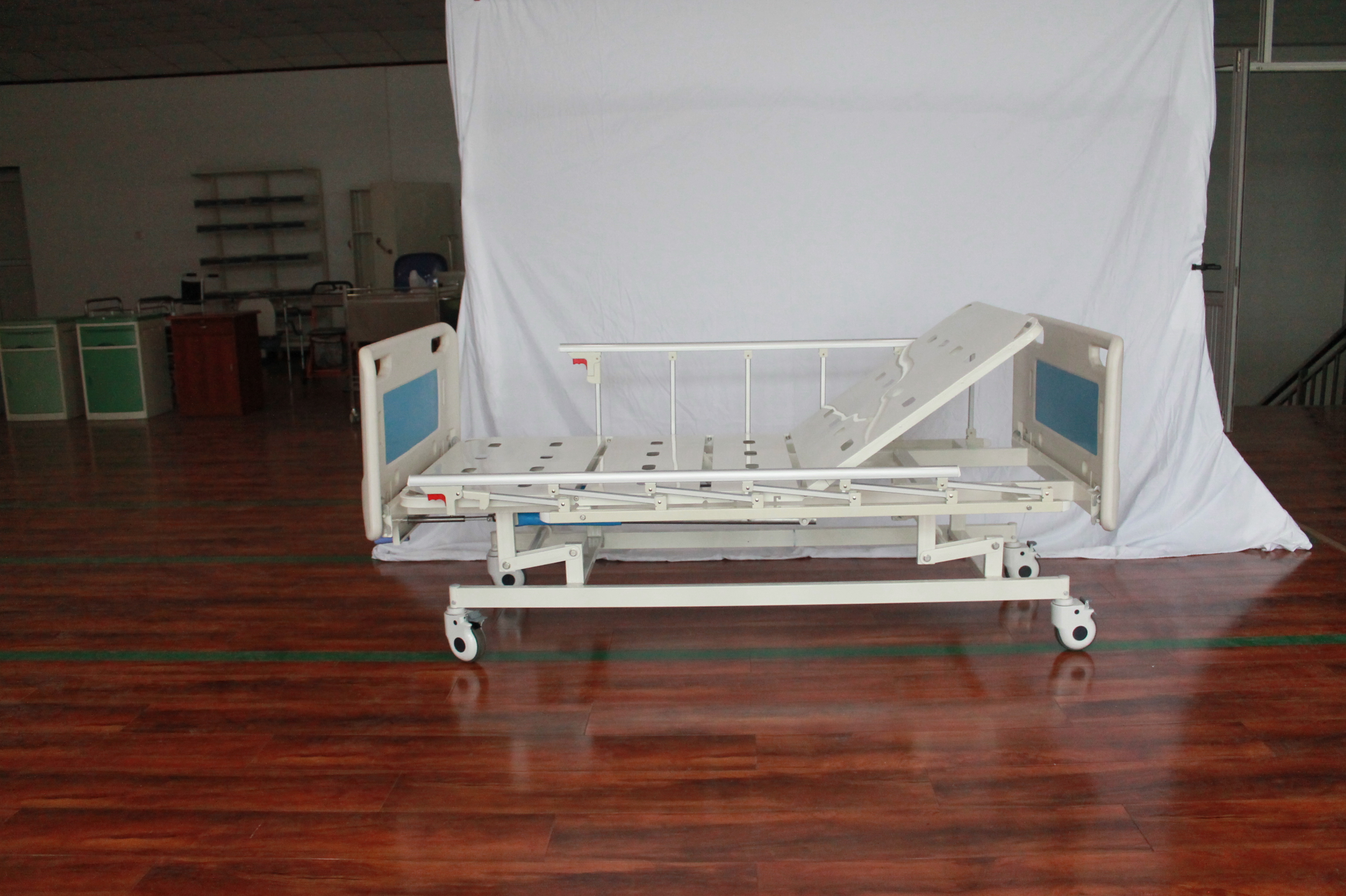

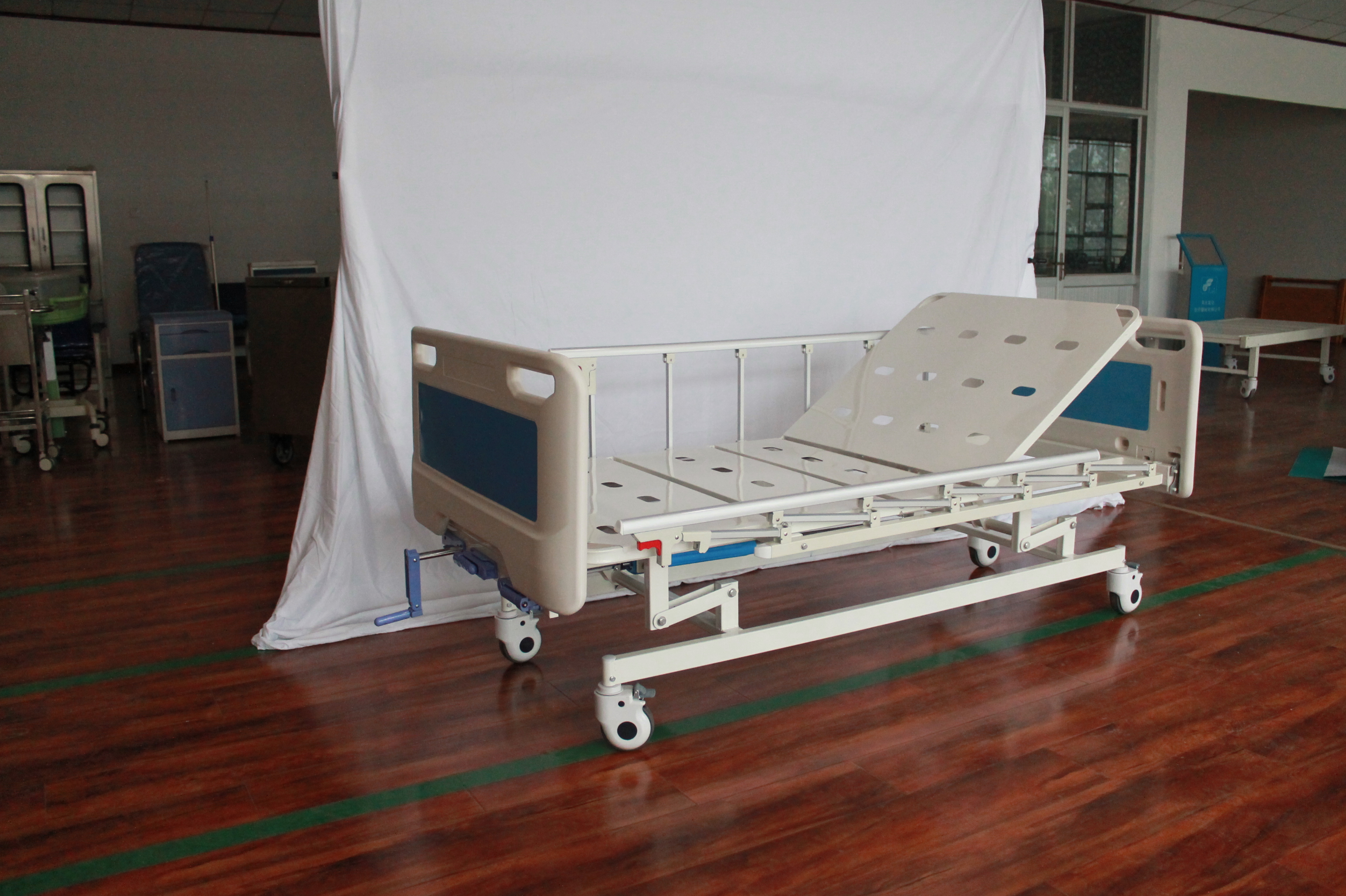

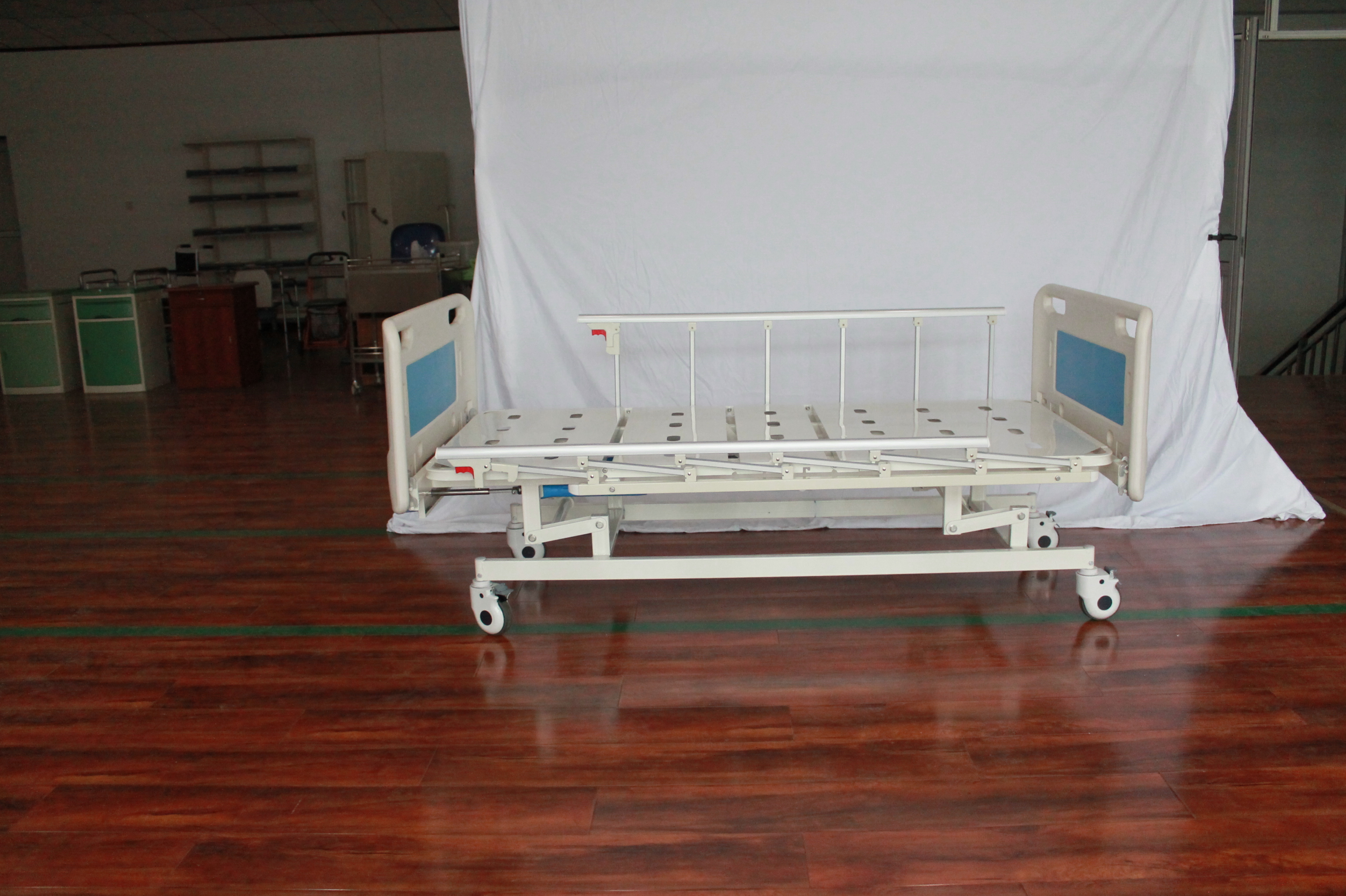

1. Three function manual bed , with ABS panels ,individual locking system
2. Size: 2140*960*450-680mm
3. Packing Size : 2060*960*320mm (1 piece per carton )
4. ABS panels with safe lock ,detachable and easy to clean
5. The material of the bed frame is cold steel , the thickness of the bed frame is 1.2mm (土0.1mm), the thickness of the platform is 1.5mm (土0.1mm).
6. The thickness of the connection part is 5mm .
7. With fold able aluminum alloy side rails (six columns),solid and durable .
8. The two holes for the IV pole had been equipped at the corner of the bed ,also the stainless
steel IV pole had been included .
9. With individual brake system , the dia of the castors is5’’.
10. Cold-rolled steel plate with one shot stamping forming , which is adopted for the bed surface .
11. The back part of the bed can be adjusted from 0° to 75°(土5°). The knee part can be adjusted
from 0° to 45。(士5°). Height adjusted from 450-680mm , all the function was controlled by
manual.
12. The fold able ABS cranks had been equipped, with 3 pcs .
13.10.4 pcs of drainage hooks had been equipped at the side of the bed frame .
14. Safety working load : 180kg.
15. The warranty time of the bed is 12 months after the delivery.
1. Three function manual bed , with ABS panels ,individual locking system
2. Size: 2140*960*450-680mm
3. Packing Size : 2060*960*320mm (1 piece per carton )
4. ABS panels with safe lock ,detachable and easy to clean
5. The material of the bed frame is cold steel , the thickness of the bed frame is 1.2mm (土0.1mm), the thickness of the platform is 1.5mm (土0.1mm).
6. The thickness of the connection part is 5mm .
7. With fold able aluminum alloy side rails (six columns),solid and durable .
8. The two holes for the IV pole had been equipped at the corner of the bed ,also the stainless
steel IV pole had been included .
9. With individual brake system , the dia of the castors is5’’.
10. Cold-rolled steel plate with one shot stamping forming , which is adopted for the bed surface .
11. The back part of the bed can be adjusted from 0° to 75°(土5°). The knee part can be adjusted
from 0° to 45。(士5°). Height adjusted from 450-680mm , all the function was controlled by
manual.
12. The fold able ABS cranks had been equipped, with 3 pcs .
13.10.4 pcs of drainage hooks had been equipped at the side of the bed frame .
14. Safety working load : 180kg.
15. The warranty time of the bed is 12 months after the delivery.
1.80 high quality mattress , the material of the mattress cover is nylon oxford , waterproof andanti-becate , also the zip had been equipped , it'’seasy to move and wash the mattress cover
2.Movable over bed dining table
Size : L890*W450*H760-1060mm
Pakcing size : L980*W470*H170mm (2 pieces /carton , with corrgugated carton packing )
3.Packing of the beds
1.80 high quality mattress , the material of the mattress cover is nylon oxford , waterproof andanti-becate , also the zip had been equipped , it'’seasy to move and wash the mattress cover
2.Movable over bed dining table
Size : L890*W450*H760-1060mm
Pakcing size : L980*W470*H170mm (2 pieces /carton , with corrgugated carton packing )
3.Packing of the beds
