1.Injection Mode:Constant Rate、Time mode、Drug Weight、Micro、 Sequential、 Drug Library Mode
2.Syringe Size:5ml、10ml、 20ml、 30ml、 50/60ml, auto-recognition
3.Flow Rate:
5ml: 0.10m/h-60.00ml/h
10ml: 0.10m/h-300.00m/h
20ml: 0.10ml/h-400.00m/h
30ml: 0.10m/h-600.00m/h
50/60ml: 0.10ml/h-1200.00ml/h
4.Increment:0.01ml/h
5.Preset Time:1s- 99hr59min59s
6.Parameter Changed during Injection:Support change of VTBI, flow rate during injection
7.Accuracy:≤土2% (土1% mechanical accuracy included) .
8.Preset Volume(VTBI):0.10-9999.99ml or empty
19.Accumulated Volume:0.00-9999.99ml
10.Purge Rate:
5ml: 30.00-60.00ml/h
10ml: 150.00-300.00m/h
20ml: 200.00-400.00m/h;
30ml: 300.00-600.00ml/
50ml: 600.00-1200.00ml/h
11.Bolus Rate
5ml: 0.10ml/h-60.00ml/h
10ml: 0.10ml/h-300.00m/h
20ml: 0.10ml/h 400.00m/h
30ml: 0.10ml/h-600.00ml/h
50/60ml: 0.10ml/h-1200.00ml/h
12.KVO：0.10 -5.00m/h adjustable
13.Occlusion Pressure：8 level adjustable, 20Kpa-150Kpa, dynamically pressure value display.
14.Alarm：Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error, low battery, battery lost, battery ran out,AC power lost, abnormal injection, communication error
15.Syringe Management：Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration
16.Display：3.5’TFT color LCD; 10 level brightness adjustable
17.Power Supply：AC Power:100V-240V，50Hz/60Hz，≤45VA
18.Communication Port：USB,RJ45 for future use, Ethernet Port
19.Battery：Rechargeable Lithium battery, DC11.1v，3000mAh;Operating time: ≥9h@5ml/h
20.Alarm Voice：Standard Medical Alarm Voice with Mute function, 8 levels adjustable.
21.Event Log：10000 event log, can be transmitted to PC with USB
22.Software Upgrade：Upgrade the software with USB
23.Operation Environment：+5℃-+40°℃，Relative humidity: 20%-90%;Atmospheric pressure: 70 - 106 Kpa
24.Classification：Class ll,Type CF; IPX4

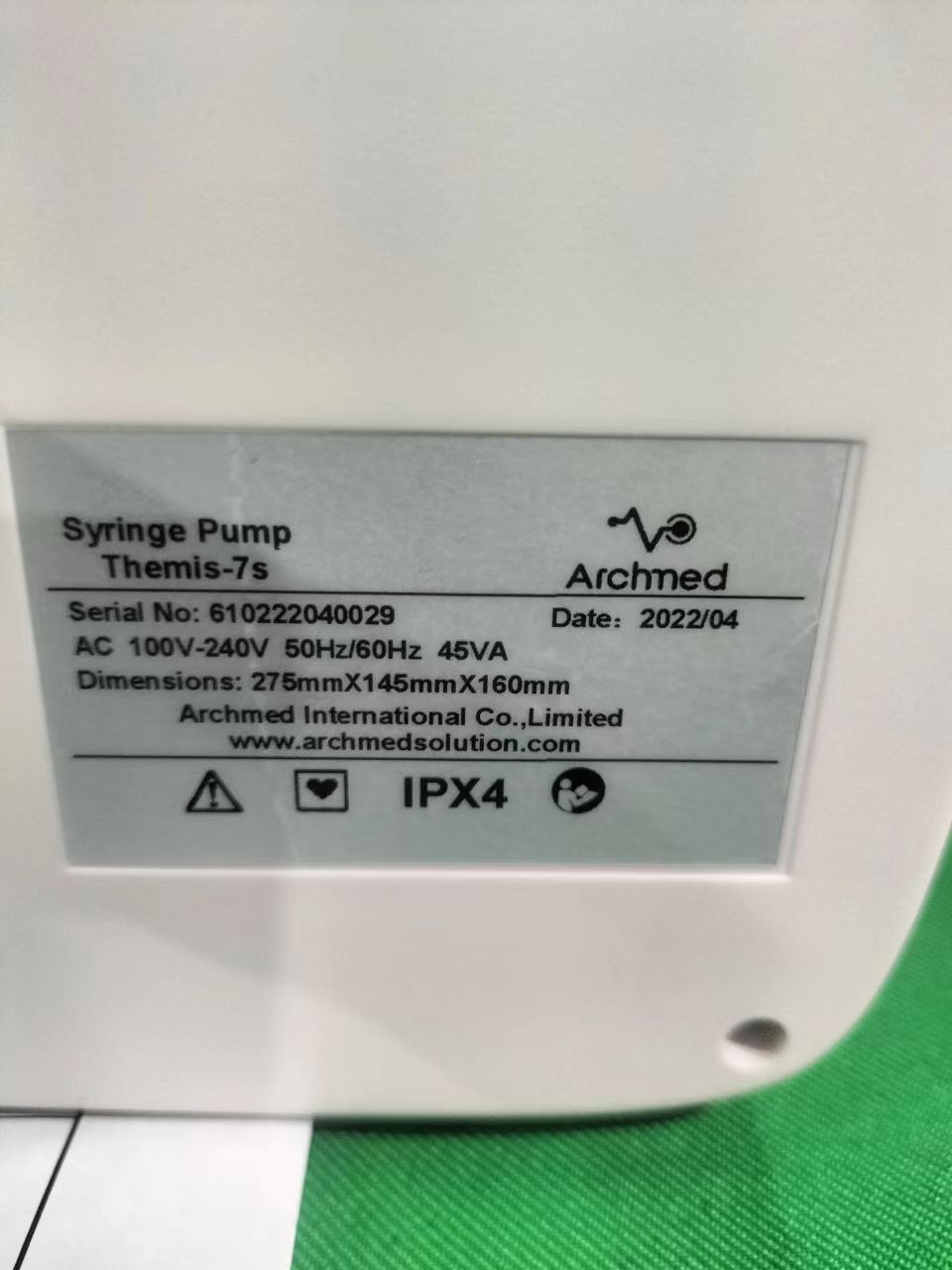

25.Dimension：Size: 275mm×145 mm×160mm，Weight: 2.1kg
26.Other Function：Double CPU, Password function, Multi Language, Pressure Release function,90°rotable lN pole, 4 soft function key, key lock function, numeric keypad, Pause Function, etc.
27.Application：lntravenous injection
