Syringe Pump Themis-7D

Availability:
Quantity:

1.Double CPU Safer Injection

2.Big Brightness LCD Display Visually

3.Numeric Keypad Very User Friendly

4.Double Occlusion Detector Safter Infusion

5.Occlusion, Air-in-Line, Audio Visual Alarm Volume:10 settings

6.3000mAh Lithium Battery Backup Life:≥6 hours


1.Injection Mode:Constant Rate、Time mode、Drug Weight、Micro、 Sequential、 Drug Library Mode

2.Syringe Size:5ml、10ml、 20ml、 30ml、 50/60ml, auto-recognition

3.Flow Rate:

    5ml: 0.10m/h-60.00ml/h

    10ml: 0.10m/h-300.00m/h

    20ml: 0.10ml/h-400.00m/h

    30ml: 0.10m/h-600.00m/h

    50/60ml: 0.10ml/h-1200.00ml/h

4.Increment:0.01ml/h

5.Preset Time:1s- 99hr59min59s

6.Parameter Changed during Injection:Support change of VTBI, flow rate during injection

7.Accuracy:≤土2% (土1% mechanical accuracy included) .

8.Preset Volume(VTBI):0.10-9999.99ml or empty

19.Accumulated Volume:0.00-9999.99ml

10.Purge Rate:

    5ml: 30.00-60.00ml/h

    10ml: 150.00-300.00m/h

    20ml: 200.00-400.00m/h;

    30ml: 300.00-600.00ml/

    50ml: 600.00-1200.00ml/h

11.Bolus Rate

    5ml: 0.10ml/h-60.00ml/h

    10ml: 0.10ml/h-300.00m/h

    20ml: 0.10ml/h 400.00m/h

    30ml: 0.10ml/h-600.00ml/h

    50/60ml: 0.10ml/h-1200.00ml/h

12.KVO:0.10 -5.00m/h adjustable

13.Occlusion Pressure:8 level adjustable, 20Kpa-150Kpa, dynamically pressure value display.

14.Alarm:Finished, near finished, near empty, empty, occlusion, syringe disconnected, no operation, parameter error, syringe size error, low battery, battery lost, battery ran out,AC power lost, abnormal injection, communication error

15.Syringe Management:Preset 20 syringe brands, can add or edit the brand, accept all brands after calibration

16.Display:5.0’TFT color LCD; 10 level brightness adjustable

17.Power Supply:AC Power:100V-240V,50Hz/60Hz,≤50VA

18.Communication Port:USB,RJ45 for future use, Ethernet Port

19.Battery:Rechargeable Lithium battery, DC11.1v,3000mAh;Operating time: ≥6h@5ml/h

20.Alarm Voice:Standard Medical Alarm Voice with Mute function, 8 levels adjustable.

21.Event Log:10000 event log, can be transmitted to PC with USB

22.Software Upgrade:Upgrade the software with USB

23.Operation Environment:+5℃-+40°℃,Relative humidity: 20%-90%;Atmospheric pressure: 70 - 106 Kpa

24.Classification:Class ll,Type CF; IPX4

25.Dimension:Size: 290mm×150 mm×224mm,Weight: 3.5kg

26.Other Function:Double CPU, Password function, Multi Language, Pressure Release function,90°rotable lN pole, 4 soft function key, key lock function, numeric keypad, Pause Function, etc.

27.Application:lntravenous injection


Click to Play

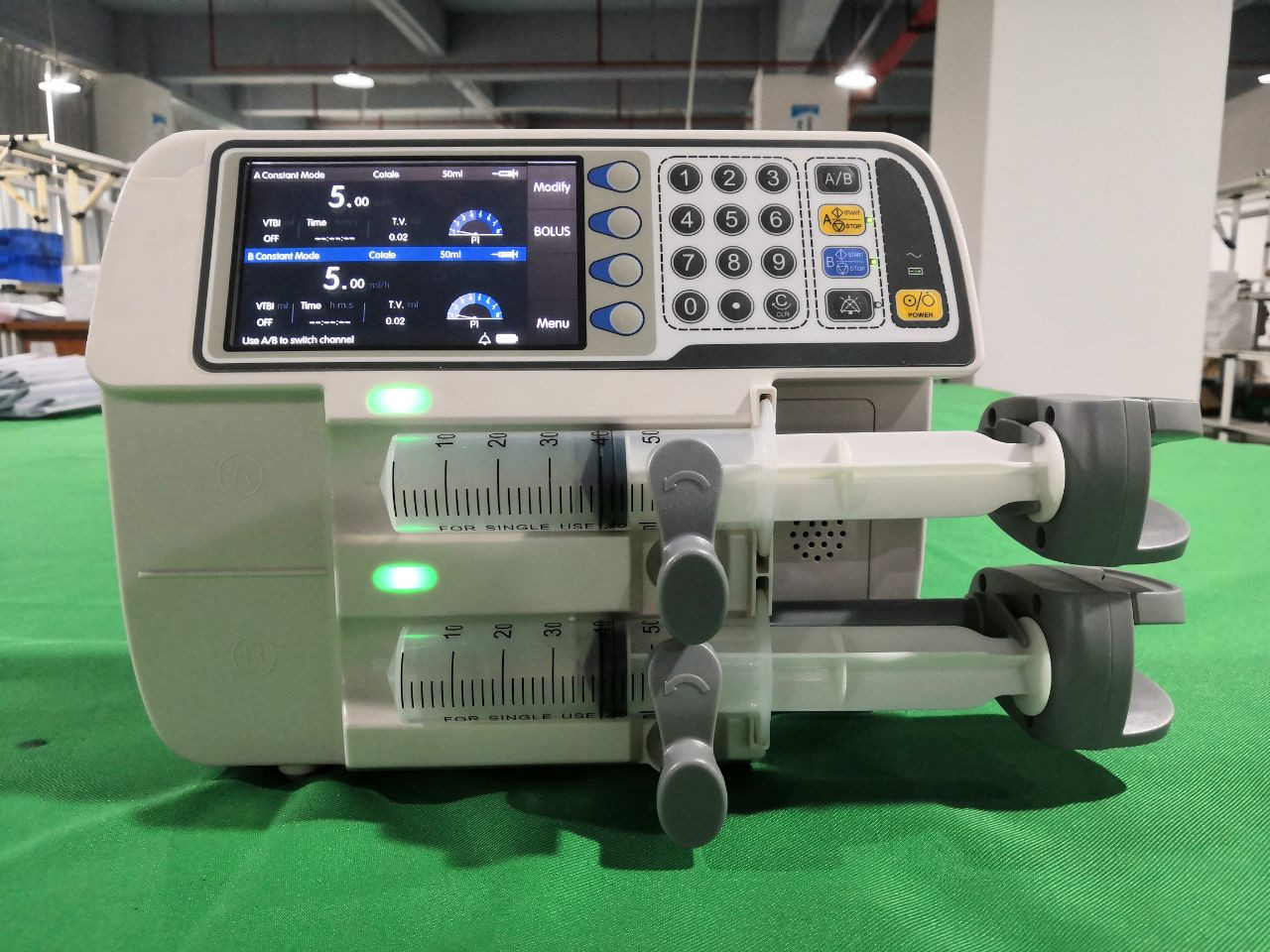

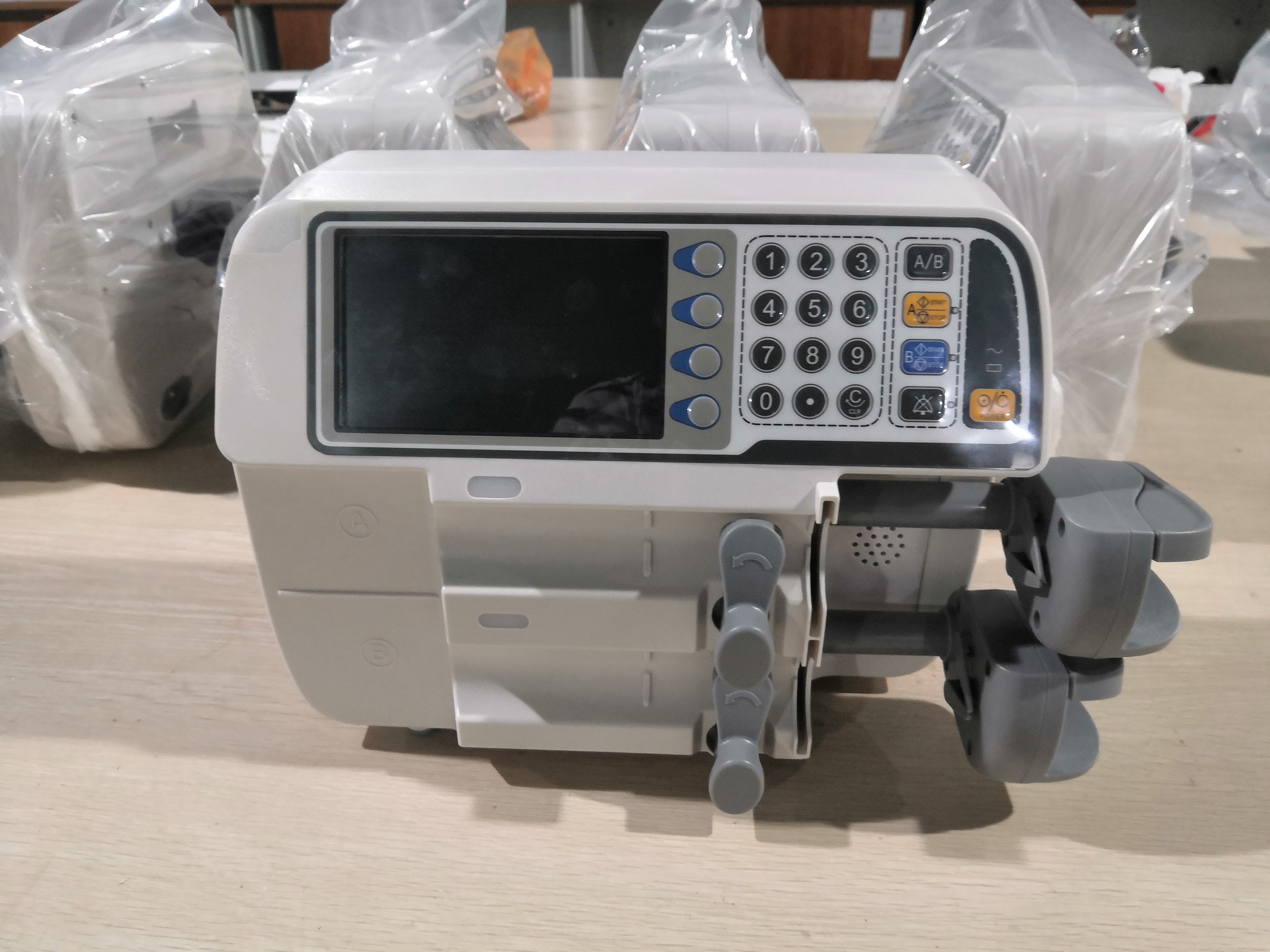

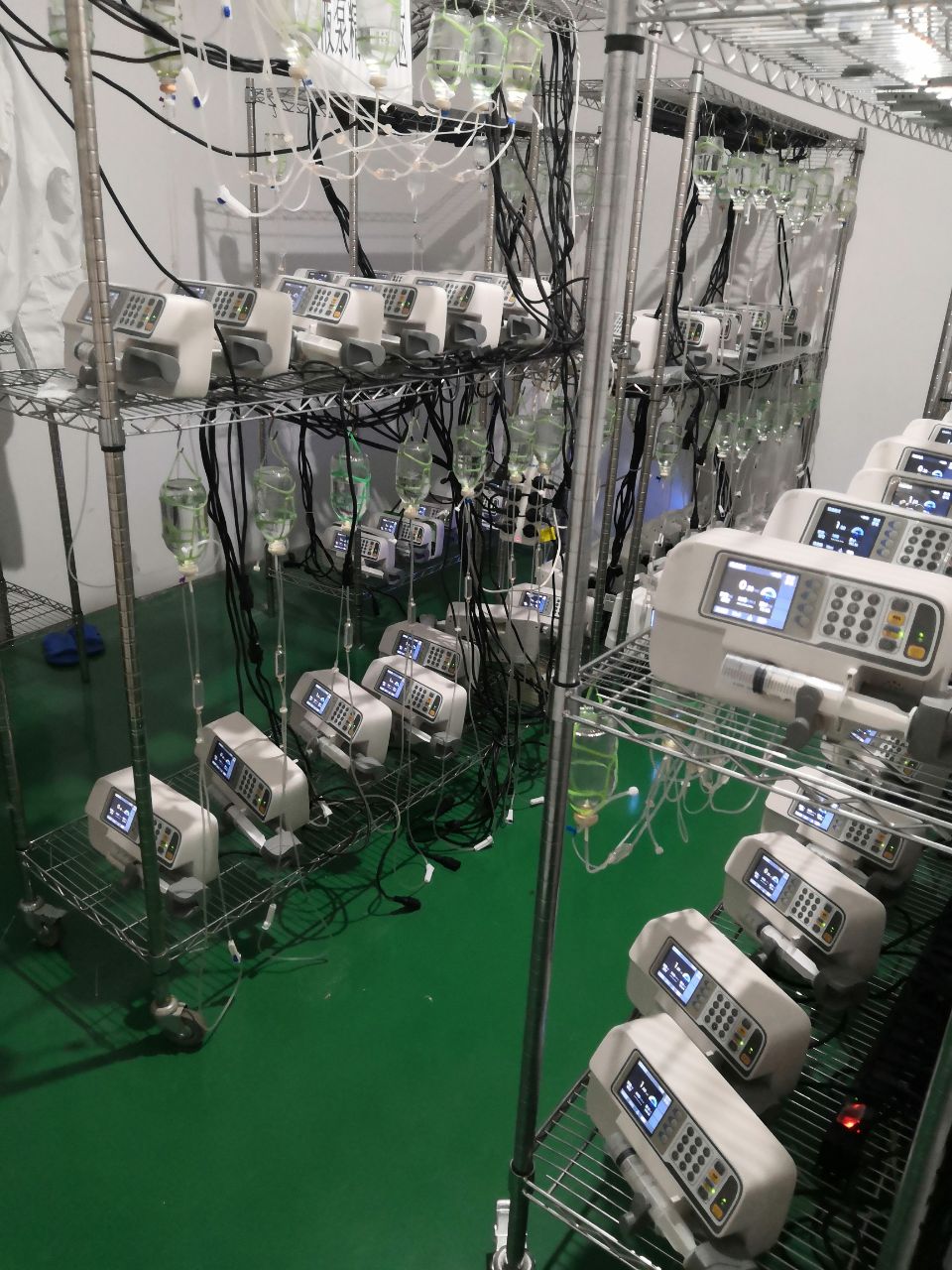

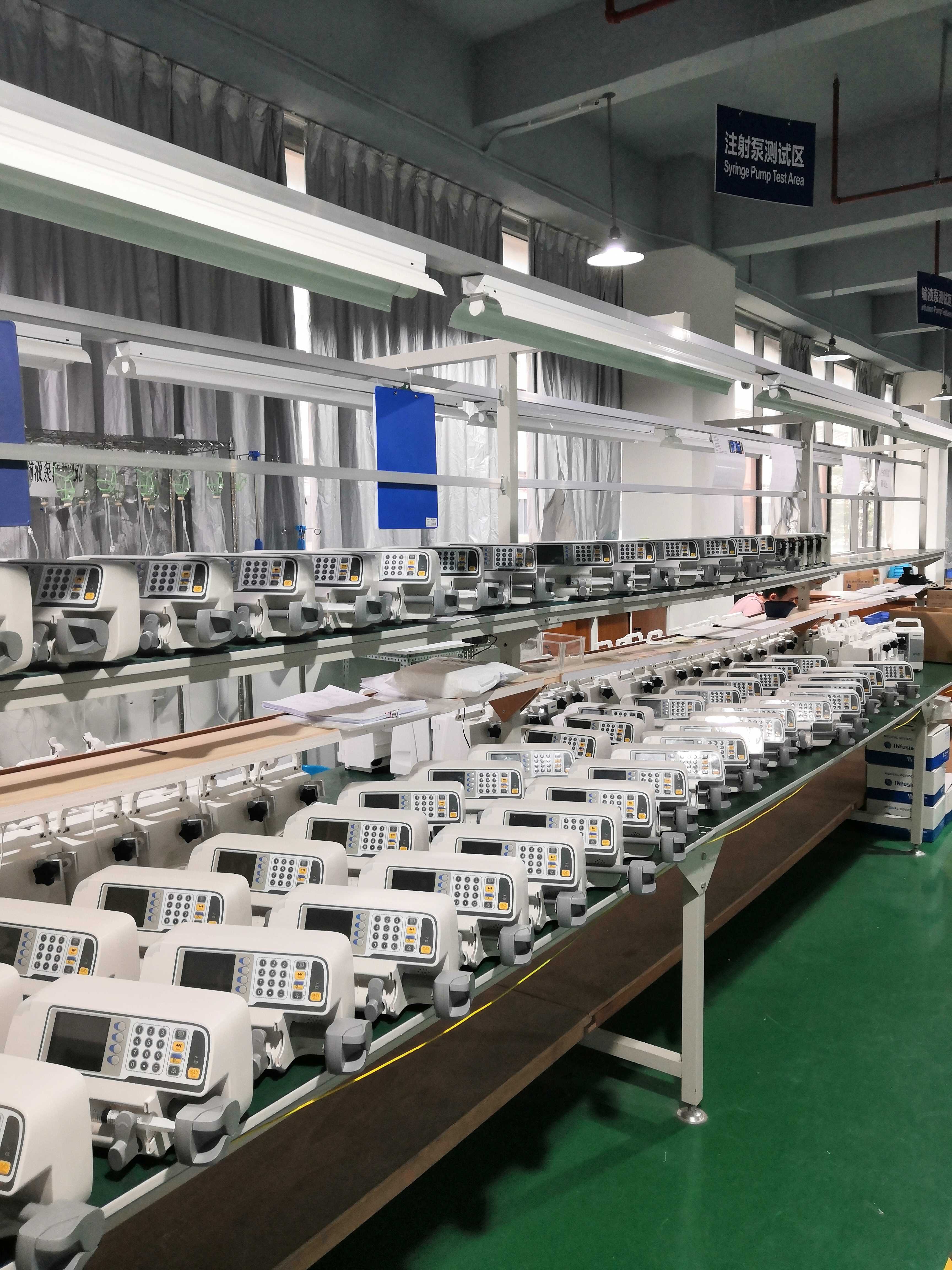

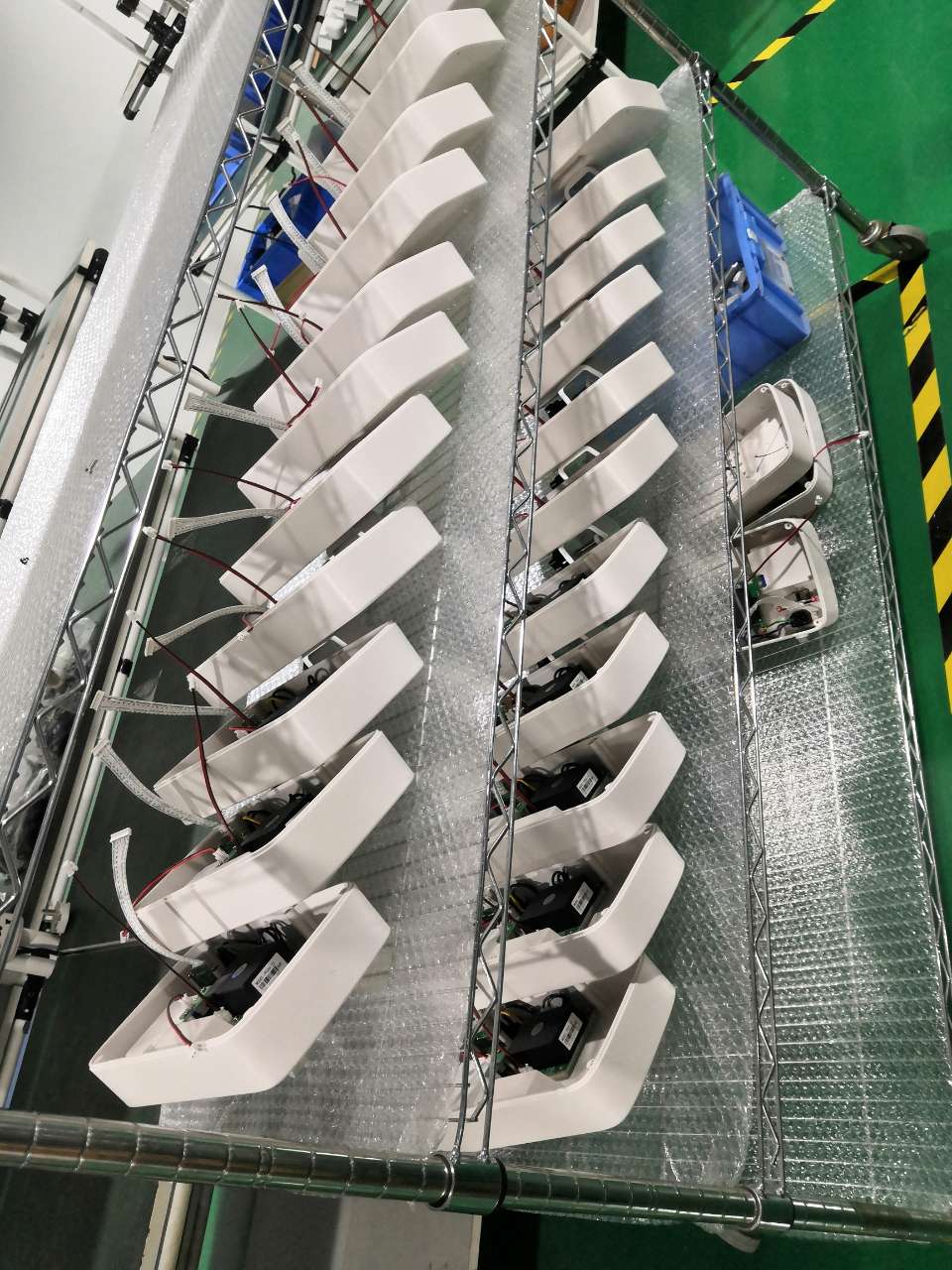

Themis-7D (1)Themis-7D (4)Themis-7D (3)Themis-7D (7)Themis-7D (6)Themis-7D (5)Themis-7D (2)
