Syringe Pump Themis-1S

1.Applicable Syringe: Various brands of sterile syringe: 5ml,0ml, 20ml, 30ml, 50ml/60ml

2.Infusion mode: Rate mode, Rate-time mode, Rate-VIBI

3.Flow rate range: 5ml syringe:0.1-150ml/h;

                             10ml syringe:0.1-300ml/h;

                             20ml syringe:0.1-600m/h

                             30ml syringe:0.1-900m/h

                             50ml (60ml) syringe:O.1-1500mlh

4.Volume range: 0.1ml-9999ml

5.Flow rate step: 0.1-100ml/h, increment 0.1ml/h

                           101-1500mlm/h, increment 1m/h

6.Time preset: 1min-99:59 min

7.Accuracy:+2%(After syringe correct calibration)

8.Alarm: Syringe not inserted,No operation,Infusion complete,Battery empty,Occlusion,Battery low, Parameter not confirmed,AC power fail, Syringe Install Error etc.

9.KvO rate: 2.5ml/h

10.Power supply: AC power supply: 100--240V,50/60Hz;

                            External Dc power supply:7.4V

11.Battery: lnternal rechargeable Lithium battery,1800mAh

12.Battery working time: Around 5 hours

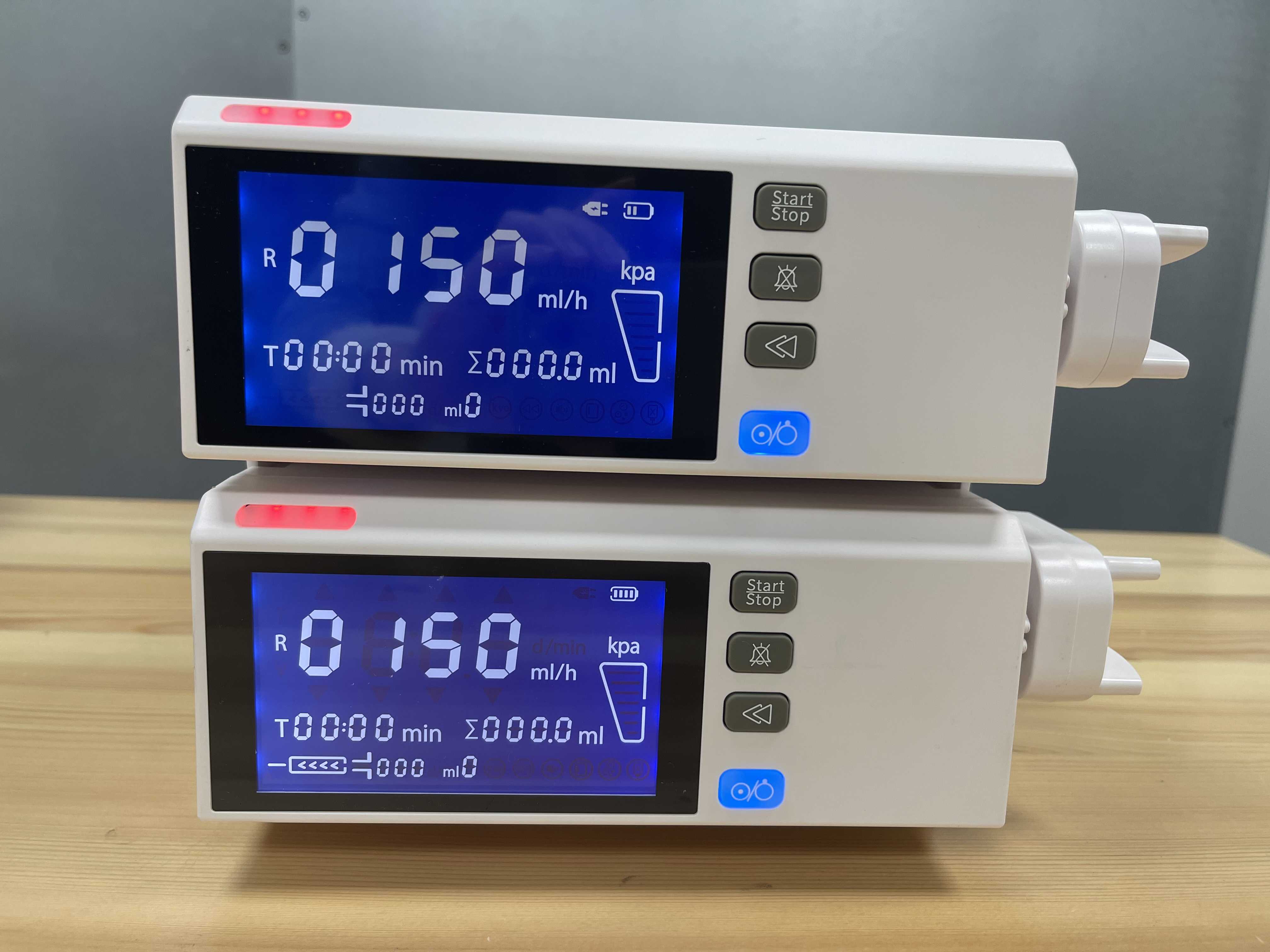

13.Screen: 4.3"L CD touch screen

14.Dimension: 220*180*80mm

15.Operation environment: Temperature +10~+30°℃

                                             Relative Humidity S70%

                                             Atmospheric Pressure 86 KPa~106KPa

16.Storage environment: Temperature:-10~+55°℃

                                         Humidity: <80%
