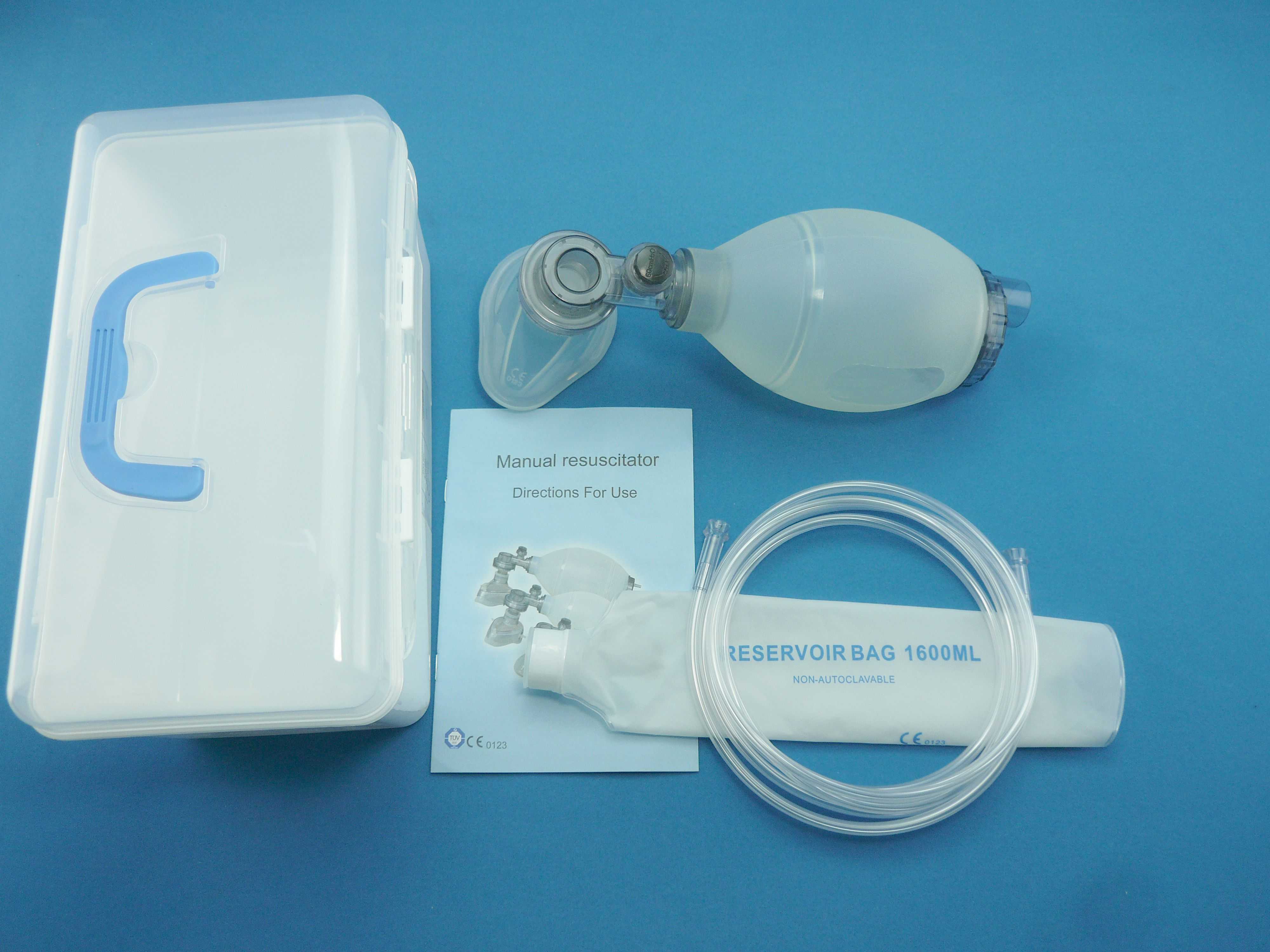

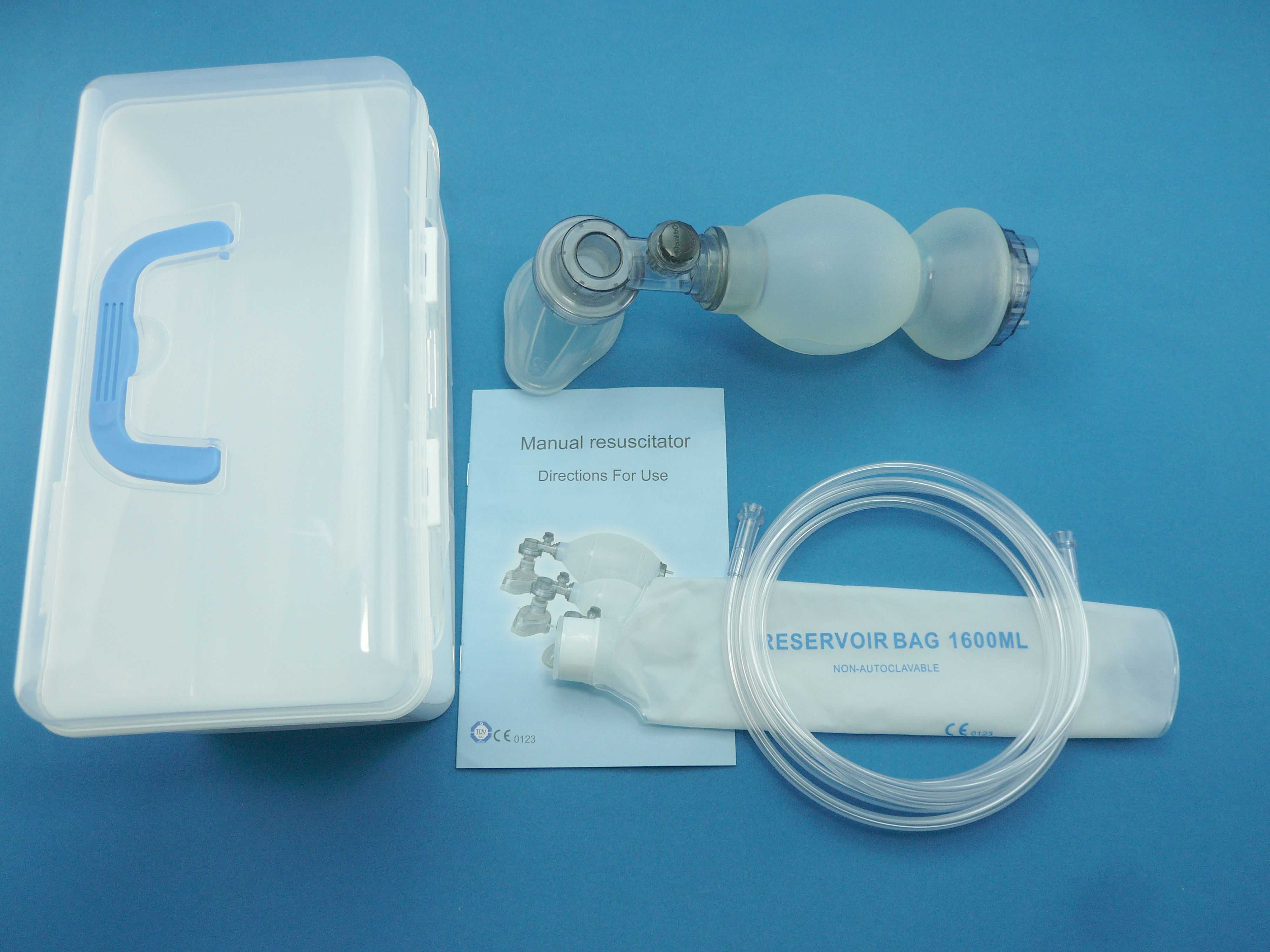

Resuscitator BVM-611/612/613

Disassemble:

Silicone resuscitator reference above“Assembly structure”:Unscrew“8”from“10”，remove“10”from“14”,Unscrew“15-c”from“15-d”.

Do not disassemble“7”from“8” .

Assemble:

Silicone resuscitator reference above“Assembly structure”and“Resuscitator function”.Clean and sterilize:

The silicone resuscitator(except 02 tubing and reservoir bag) wash with 0.2% Javel water and

Rinse in clean water,then send for autoclaving 5 minutes up to 134°℃ or

15 minutes up to 121°℃.The silicone resuscitator (silicone mask,bag and valves)

is reusable 20 times only.The oxygen tubing and reservoir bag are disposable.lt must bereplace before reusable.

The resuscitator conforms to the standard:lSO 10651-4

lt also conforms to Directive 2007/47/EC and Council Directive MDD/93/42/EEC

Model	BVM-613	BVM-612	BVM-611
Applicable people	lnfant	Pediatric	Adult
Body weight	≤10kg	10kg~30kg	>40kg
Stroke volume	≥20ml	≥150ml	≥600ml
Resuscitator volume	280ml土100ml	550ml±200ml	1500ml士200ml
Dimensions(Length x Diameter)	135mmx75mm	146mmx100mm	212mmx131mm
Pressure limiting valve	30cmH20~45cmH2O	35cmH2O~50cmH2O	40cmH2O~60cmH2O
Dead space(patient valve)	≤7ml	≤20ml	≤65ml
Inspiratory resistance	≤5cmH2O(at 50 L/min)	≤5cmH2O(at 50 L/min)	≤5cmH2O(at 50 L/min)
Expiratory resistance	≤5cmH2O(at 50 L/min)	≤5cmH2O(at 50 L/min)	≤5cmH2O(at 50 L/min)
Bag reservoir volume	1600ml	1600ml	2000ml
Patient connector	ISO5356-1:022/15mm	ISO5356-1:022/15mm	ISO5356-1:022/15mm
Recommended operating condition	-18℃～+50 ℃15%r.h~95%r.h	-18℃～+50°℃15%r.h~95%r.h	-18℃～+50°℃15%r.h~95%r.h
Storage	VT:60ml,	VT:150ml,	VT:600ml,
Supplementary oxygen and delivered oxygen concentration(≥85%)	Frequency:20BPM,Flow rate:15L/min	Frequency:25BPM,Flow rate:15L/min	Frequency:12BPM,Flow rate:15L/min
