Portable Video Bronchoscope XJD-BRO

Availability:
Quantity:

1.The multifunctional intubation Portable flexible endoscope using polycarbonate new composite handle ,reasonable designed the clamp hole position,the washable pipe system can protect the lotion unobstructed , to prevent the pipeline blockage .When do surgery , the suction valve is convenient ,removable ,safe and reliable ,so that users do not feel fatigue in the operation.

2.The excellent operation of the traction device an be easily transfer and adjust the bending parts to upward , downward .Can smoothly and fastly reach to the desired site of observation . And timely and accurate detection of diseased tissue.

3.The multi-function Portable flexible endoscope with 3.5 inch high-resolution display, with a key camera video image brightness electroinc zoom,madiation ,easy removal and disassembly for cleaning and disinfection.

4.The scope with multi-coated high transmittance imaging system,round field of view, wide viewing angle , wide field of view , the scene is broad and wide ,3- 50 mm range can see more clear picture ,so that the observation and diagnosis correctness greatly improved.

5.The high-definition CMOS camera makes users to get clearer, wider and brighter image.


1. Diameter of distal- end:中5.2mm

2. Diameter of insert tube:中5 .0mm

3. Clamp aperture:中2.2mm

4. Working length: 530mm

5. LCD: 3.5”

6. View of field: 120 o

7. Depth of view: 3-50mm

8. Tip deflection:up 160° down 130°

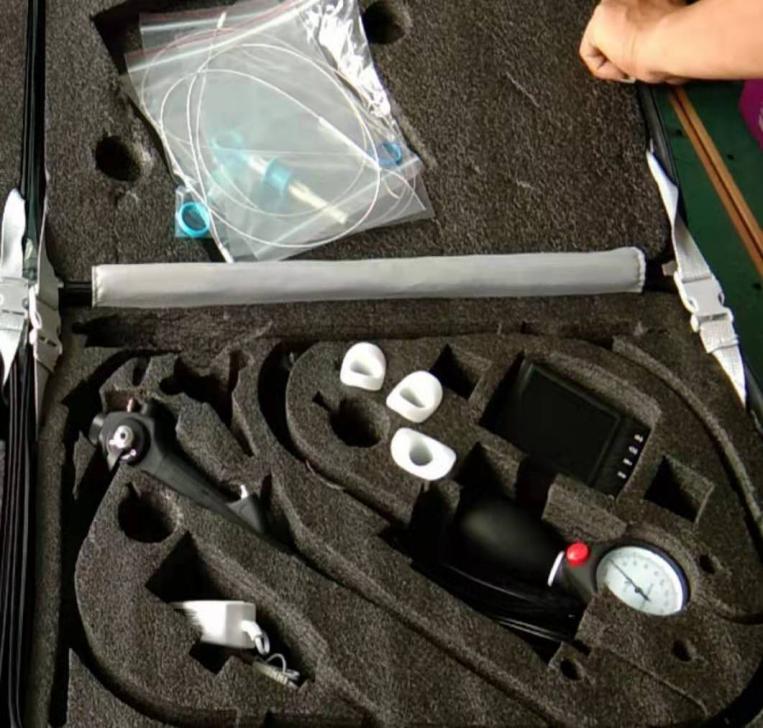

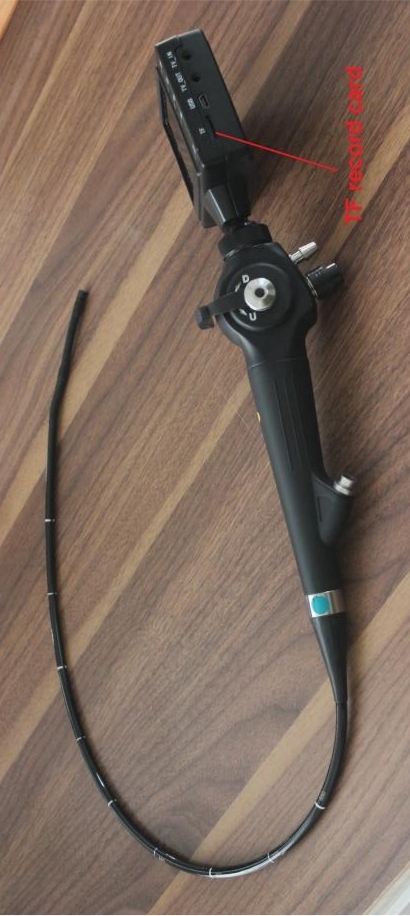

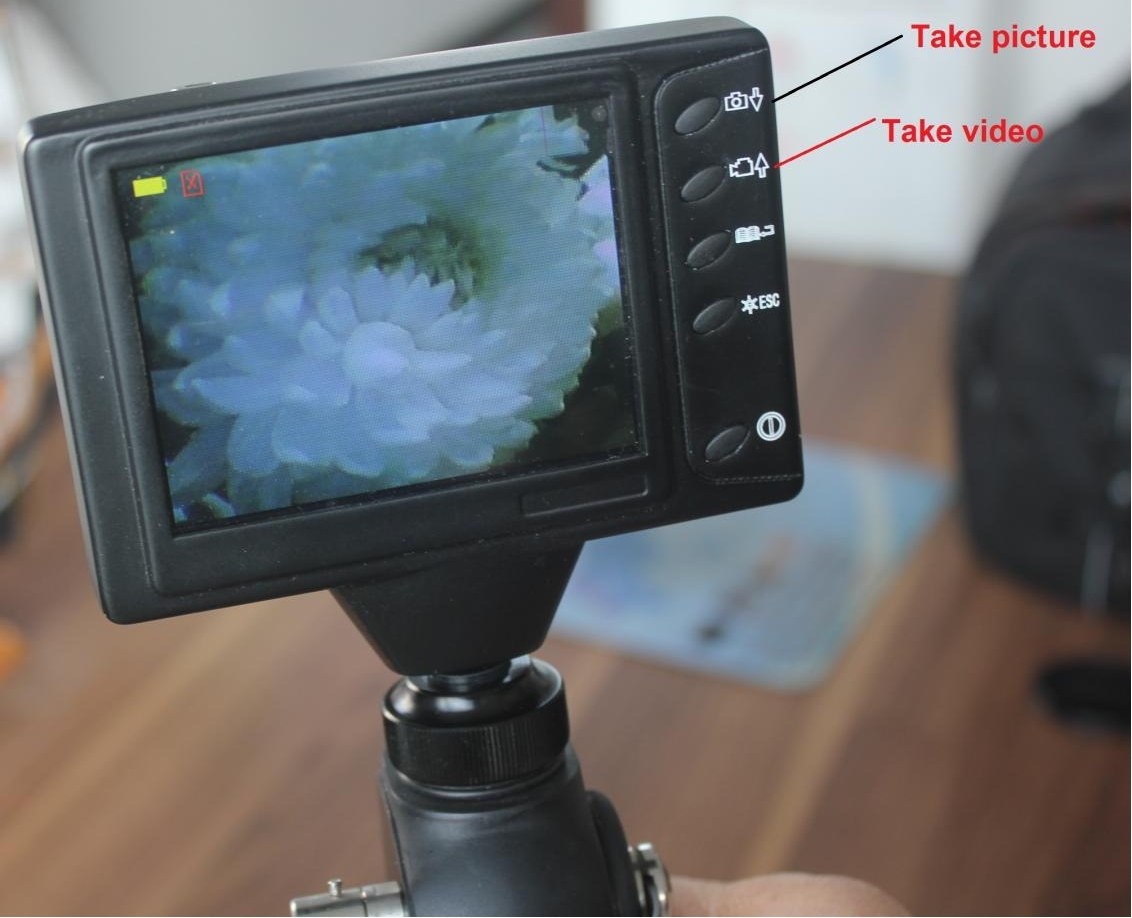

XJD-BRO (2)XJD-BRO (1)XJD-BRO (4)

Portable scope 1

Leak detector 1

Biopsy forceps 2

Cleaning brush 2

Attract valve anti jet cover 2

Endoscope case 1

3.5”LCD1

Charger 1

Output line 1

Certificate 1

User manual 1
