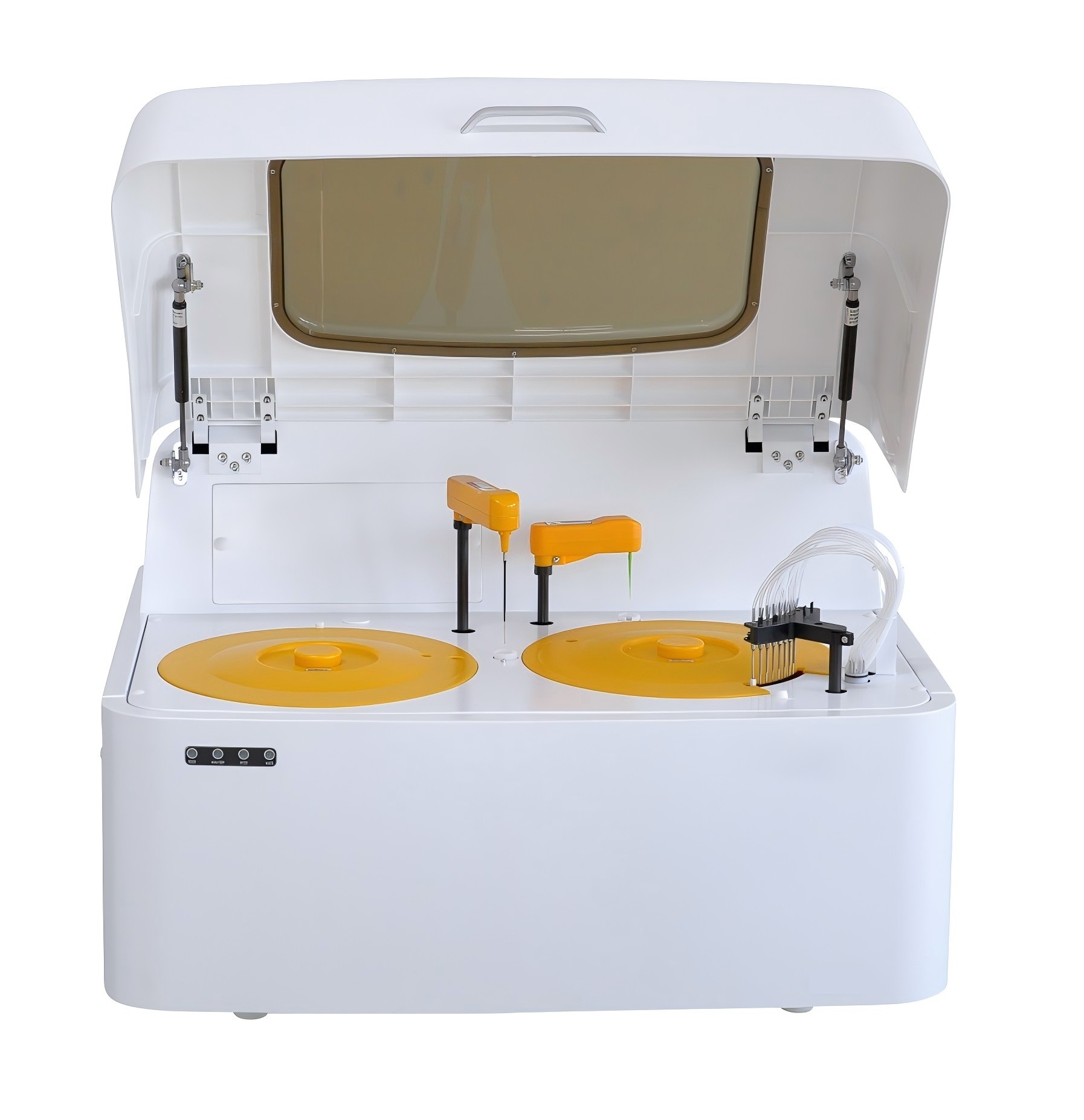

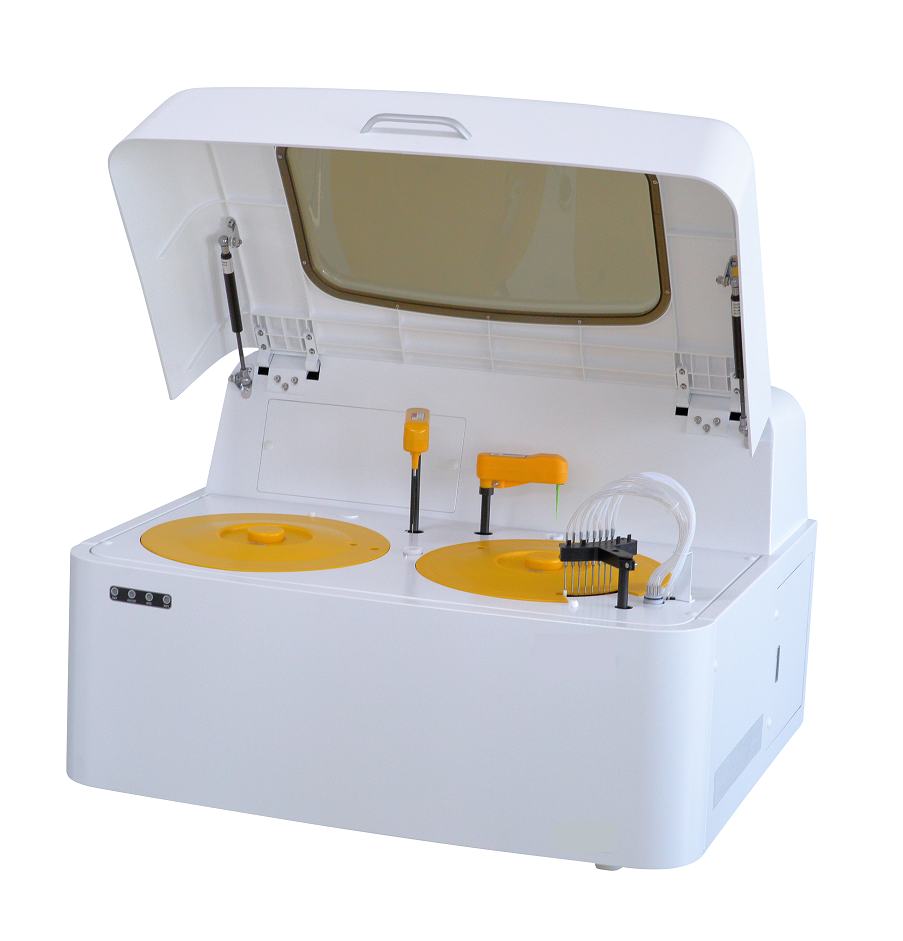

Product Description
Biochemistry Analyzer is designed for hospital or clinical laboratory to masure the quantity of chemical or biochemical components in human serum, urine and other liquid sample, used to test liver function, kidney function, cardiac markers, blood sugar, blood lipid, etc.e

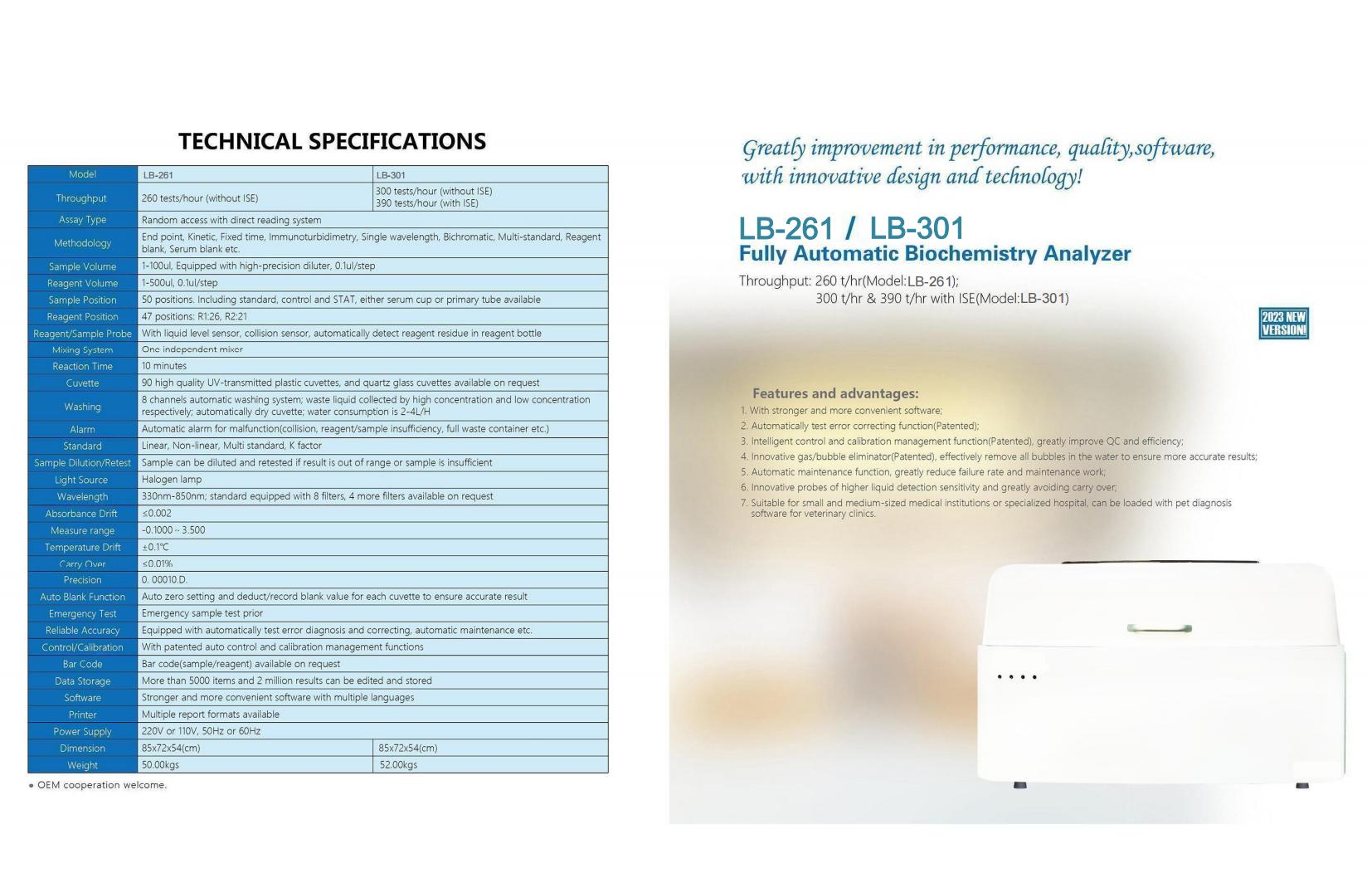

| Model | LB-261 |
| Analytical System | Fully automatic, Random Access, Discrete |
| Method | End point, Rate, Fixed time, Immunoturbidimetric, 1-2 regent, Multistandard, reagent/serum blank, etc |
| Assay Item | 40 assay |
| ISE mould(K+, Na+, Cl-, Ca2+) available on request |
| Throughput | 1 Reagent | 240 tests/hr |
| 2 Reagent | 150 tests/hr |
| With ISE | 120 tests/hr |
| Test Menu | T.BILI r-GT/GGT CHO Ca APOB-1/B CHE |
| D.BILI ALP/AKP TG CL APOB CREA |
| TP UREA CK P CK-MB Mg |
| ALB CREA LDH C ASO AFU |
| Lactic Acid ALT/GPT UA α-HBDH CO2 FMN |
| LP(a) AST/GOT GLU AMY LDL-C HDL-C |
| CHE LA TBA ADA HS-CRP PA |
| Fe Cu Zn C3 C4 IgG |
| IgM IgA and drug, toxicity,etc. |
| Sample Position | 60 |
| Including standard, control and STAT; either serum cup or primary tube available |
| Sample Volume | 1~100ul, 0.1ul/step |
| Reagent Position | 40 |
| Reagent Volume | R1: 1~400ul, 0.1ul/step, R2: 1~400ul, 0.1ul/step |
| Reagent/Sample Probe | With liquid level sensor, collision sensor, Teflon coating and automatic washing station |
| Reaction Time | 0~999 seconds |
| Cuvette | High quality uv-transmitted plastic cuvette. |
| Cuvette Washing | 8 channels automatic washing system for reaction cuvettes |
| Probe and Mixer Washing | Independent washing station for each sample/reagent probe and mixer |
| Alarm | Automatic alarm for malfunction (eg:collision, reagent/sample insufficiency, full waste container, etc) |
| Calibration | Linear, Non-linear, Multi standard, K factor |
| Sample Dilution/Retest | Sample can be diluted and retested if results are out of range or sample is insufficient. Also with calibrator auto diluting function |
| Wavelength | 340-810nm |
| Light Source | Halogen lamp |
| Absorbance Resolution | 0.0001A |
| AbsorbanceAccuracy | ±0.0003A(0-2.5A) |
| Repeatability | ±2% |
| Quality Control | Levy jennings quality control program at 3 levels |
| Barcode | Optional |
| Printer | Multiple report formats available |
| System | Windows XP; Windows 7 |
| Power Supply | 220V or 110V, 50~60Hz |
| Dimension | 85×72×53(cm) |
| Weight | 85kg |

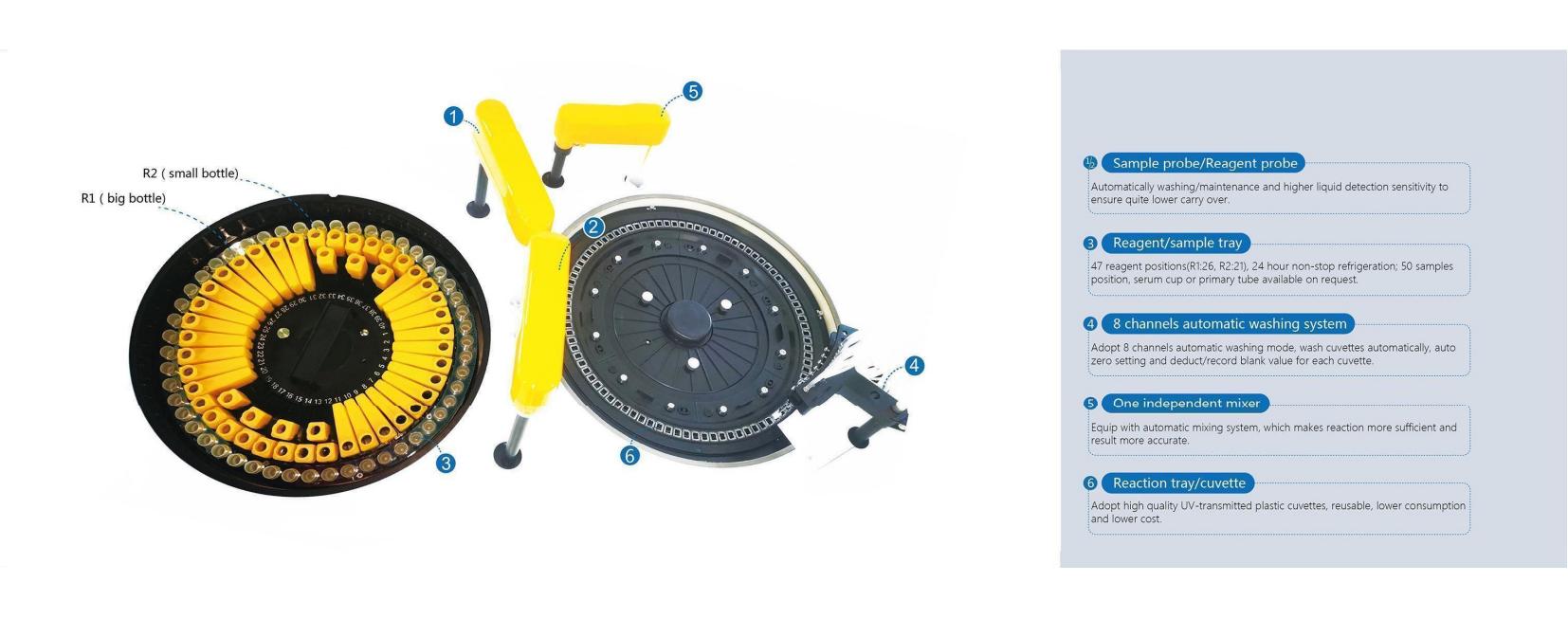

Structure: 1. Optical System
Light source: Halogen-tungsten lamp, 2000hours working life about
Wavelength: 340nm-810nm
Linear range:0~3ABS
2. Sample System 1.Sample tray: 60 sample position,available to use serum cup or blood tube
2.Sample volume:1~100ul, programmed by 0.1ul step
3.Sample probe: Liquid level detection and collision protection automatically
4.Probe cleaning: automatic washing both inside and outside, Carryover<0.1%
5.Automatic sample dilution
3. Reagent System 1.Reagent tray: 40 positions for single &dual Reagents.
2.Refrigeration: Refrigerated reagent
3.Compartment 24h Cooling system maintaining temperature 2~8°C
4.Reagent volume:1~400ul, programmed by 0.1ul step
5.Reagent probe: Liquid level detection and collision protection automatically
6.Pre-heating function.
7.Real-time monitoring of reagent volume and auto alarm
8.Probe cleaning: automatic washing both inside and outside, Carry over<0.1%
4. Reaction System 1.Reaction tray: 90 reaction cuvettes, High quality UV-transmitted plastic cuvettes adopt, flat design to ensure heating evenly
2.Back-Dividing-Light technology
3.Min Reaction volume: 180ul
4.Reaction Temperature:37°C+0.1°C
5.Mixing system: Independent mixing probe
6.Automatic washing cuvettes
5. Washing System 1.Automatic cleaning Sample/mixer probe
2.Five channels washing station for each cuvette
3.Automatic record and deduct cuvette blank value
6. Operation Unit
Operation system: Windows XP or WIN 7, and upper
Interface: RS-232
7. Working Conditions 1.Power Supply: 220V±10%, 50/60HZ; 110V (optional)
2.Power consumption: ≤1200VA
3.Temperature:15~30°C
4.Humidity: ≤85%
5.Water consumption: 6L/h
