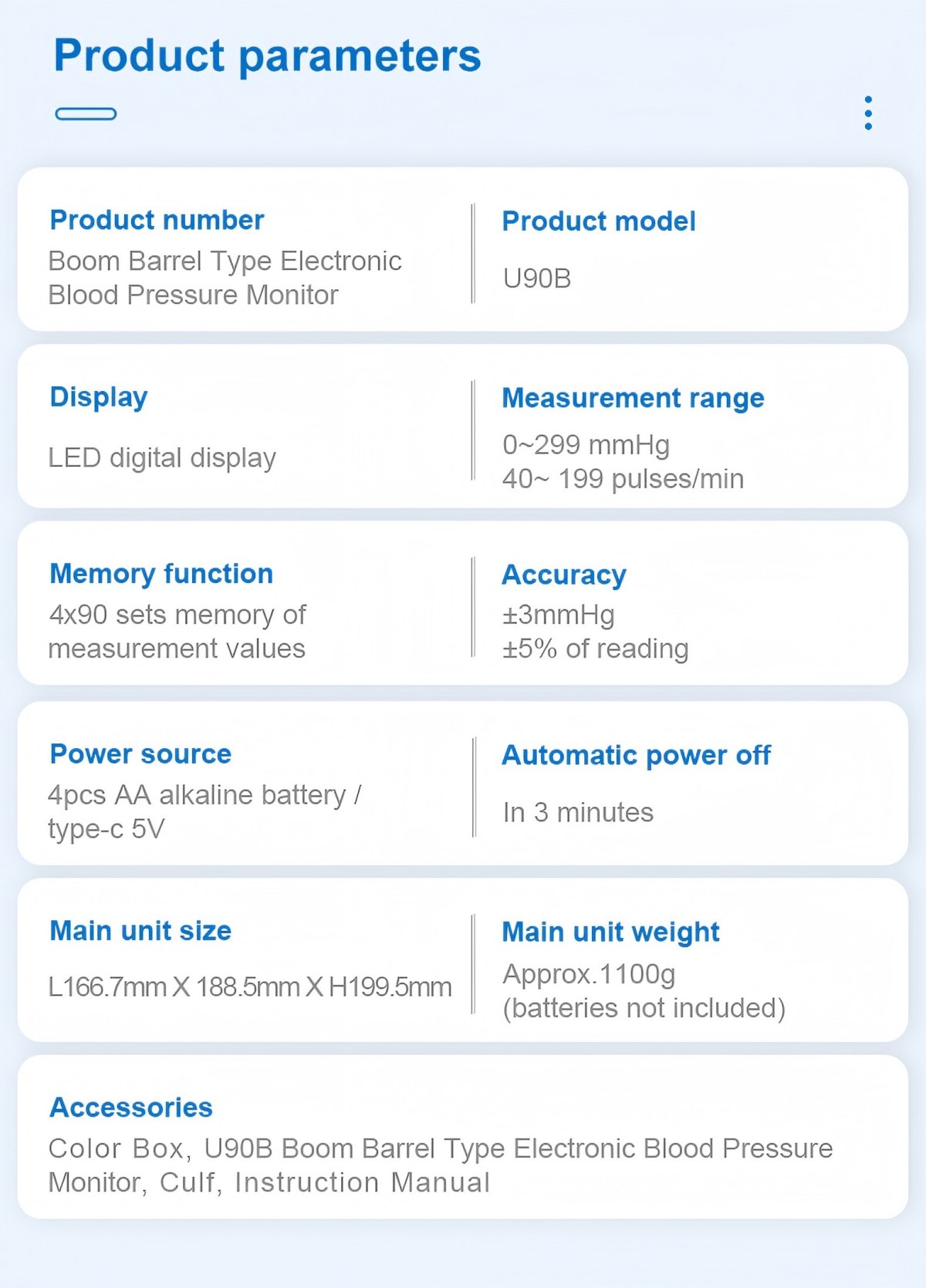

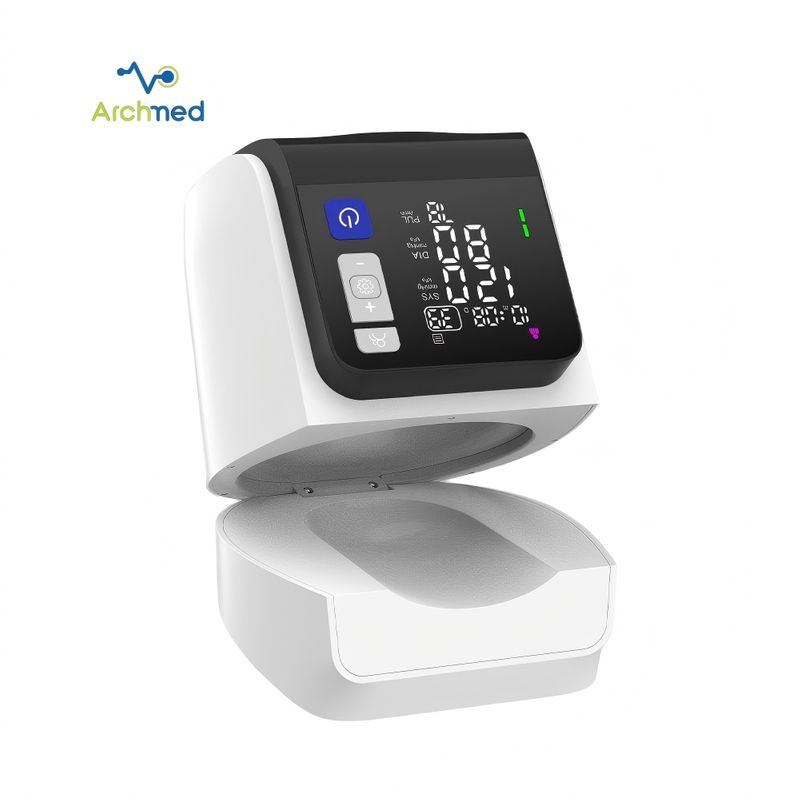

| Product name | Arm tube electronic blood pressure monitor |
| Display method | Digital display |
| Measurement methods | Oscillometric method |
Measurement site Applicable arm
circumference range | upper arm
Arm circumference 22cm-40cm(central part of upper arm) |
| Measuring range | Blood pressure value:0~299mmHg(0~39.9kPa) |
| Pulse rate:40~199 beats/min |
| Static measurement | Blood pressure value:±3mmHg(±0.4kPa) |
| Accuracy | Pulse rate:±5%of reading value |

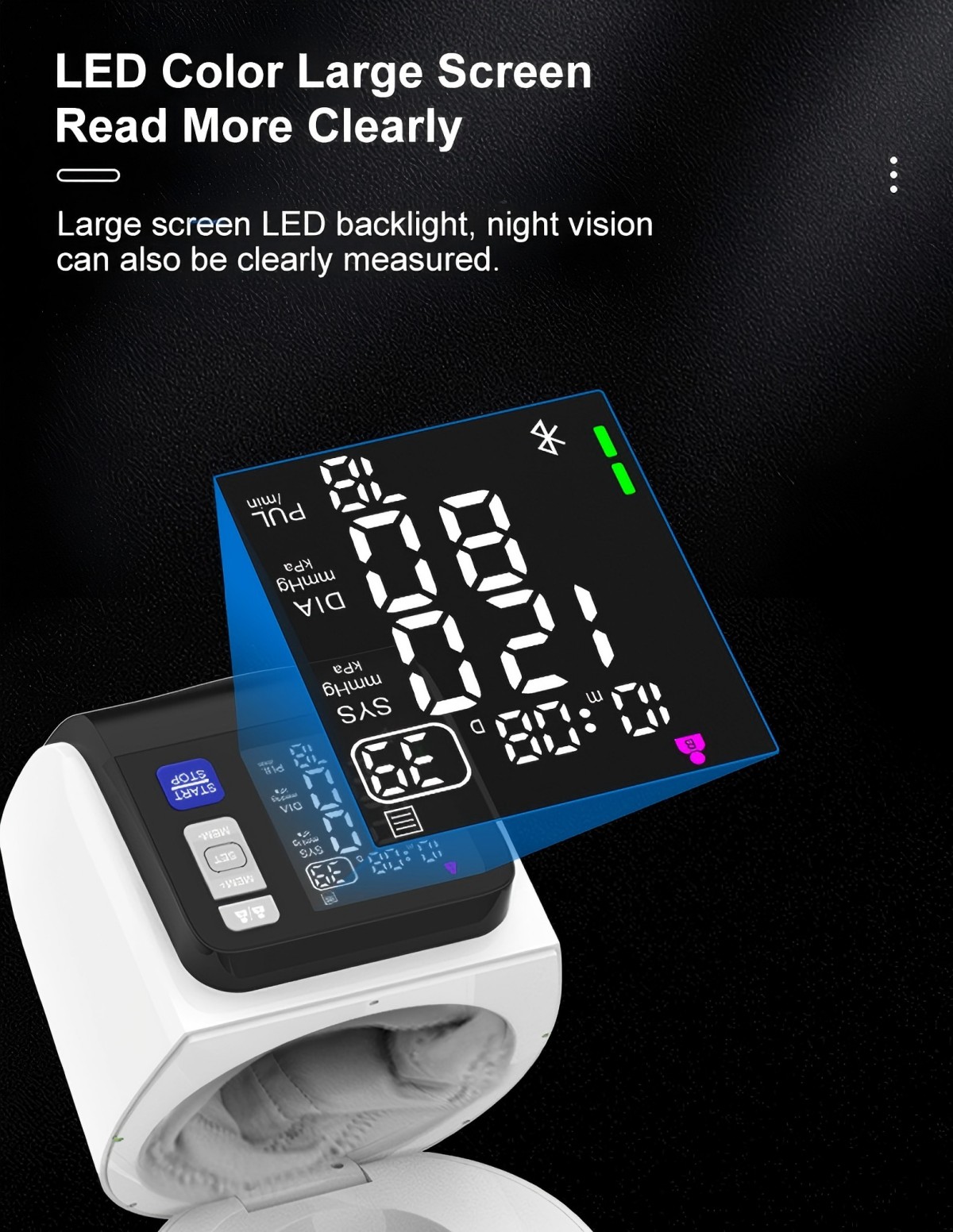

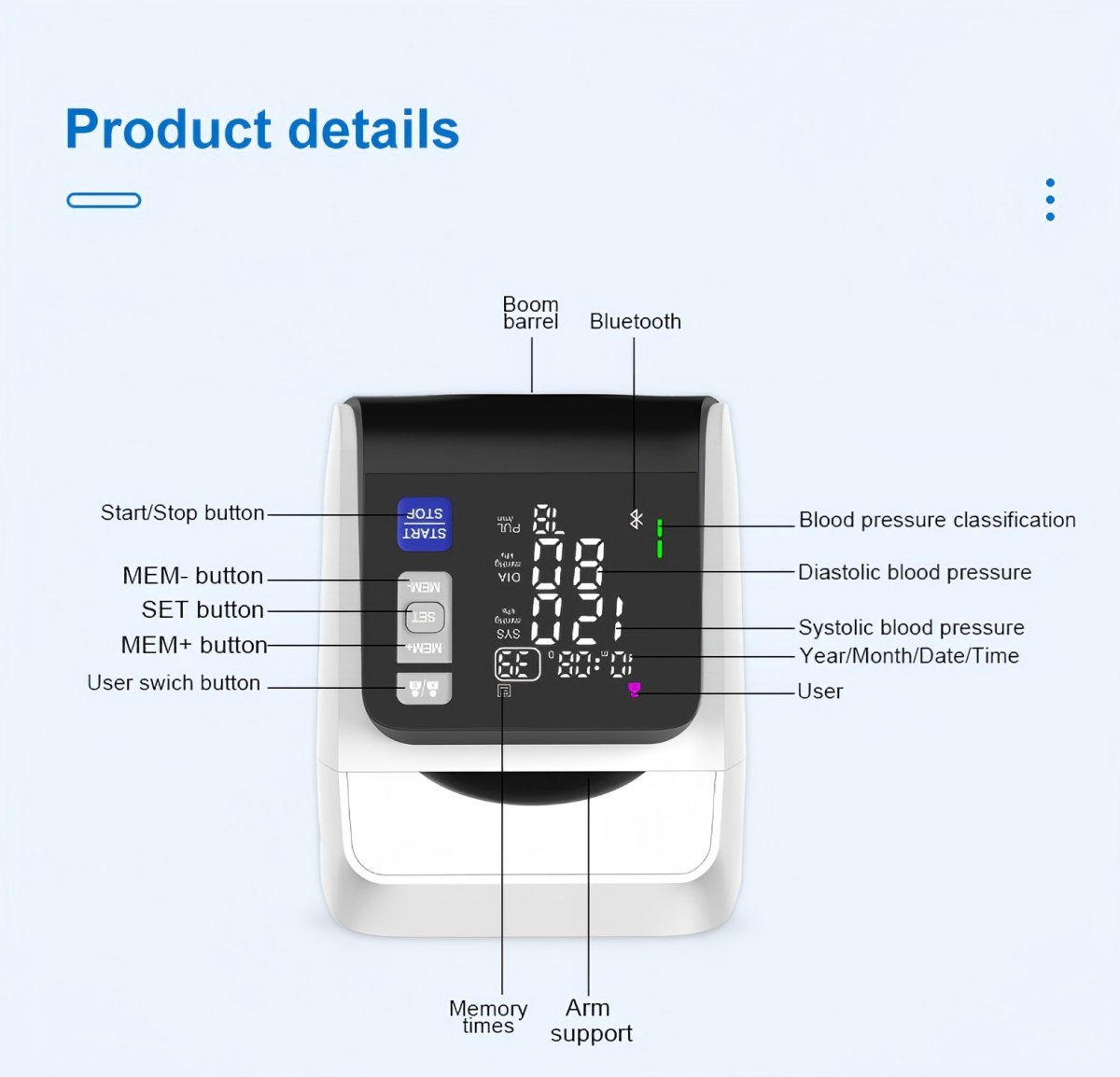

| LED display | Pressure:unit mmHg/kPa |
| Pulse:pulse per minute,display three digits |
Symbols:memory/average/pulse/low battery/
arrhythmia reminder |

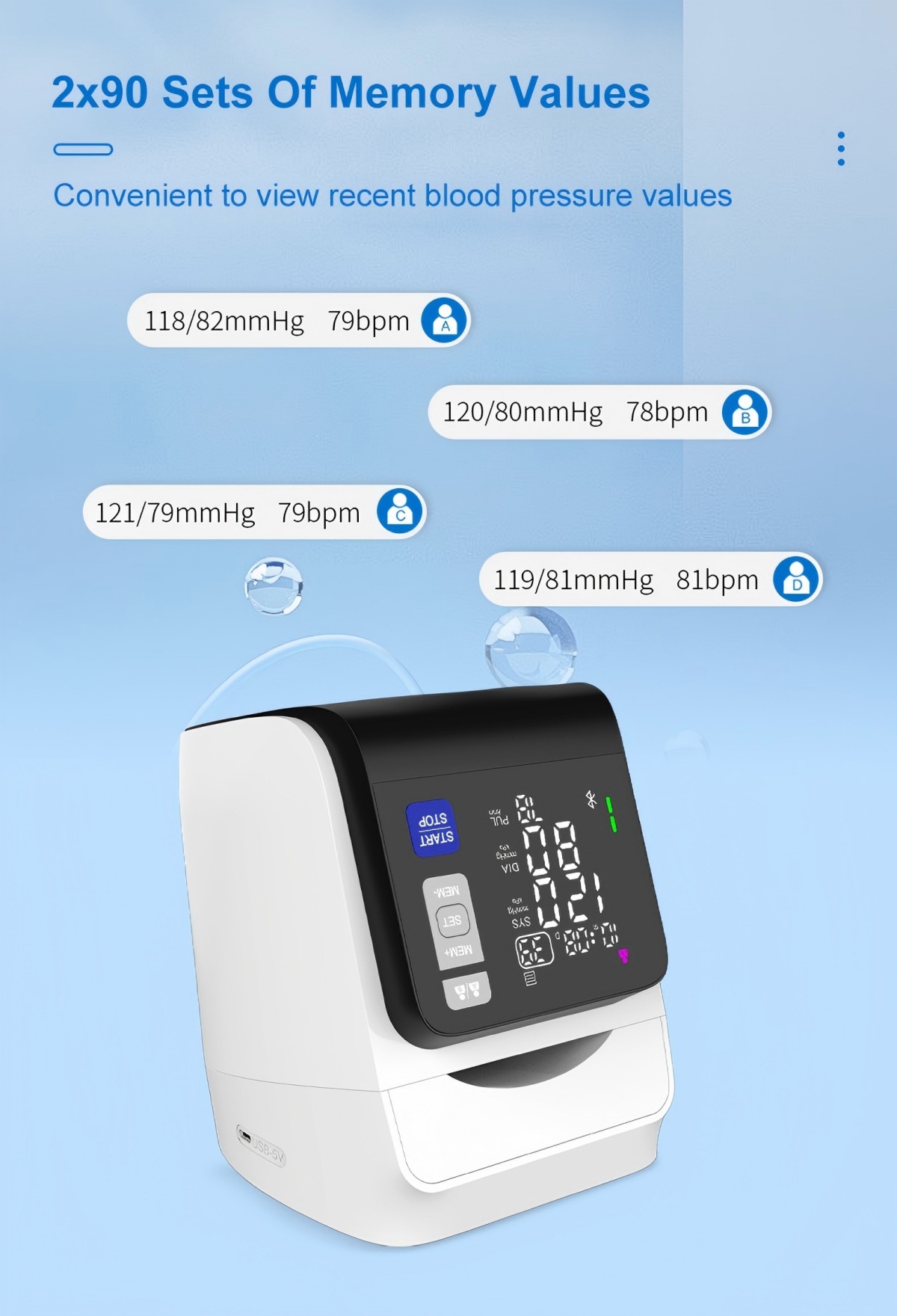

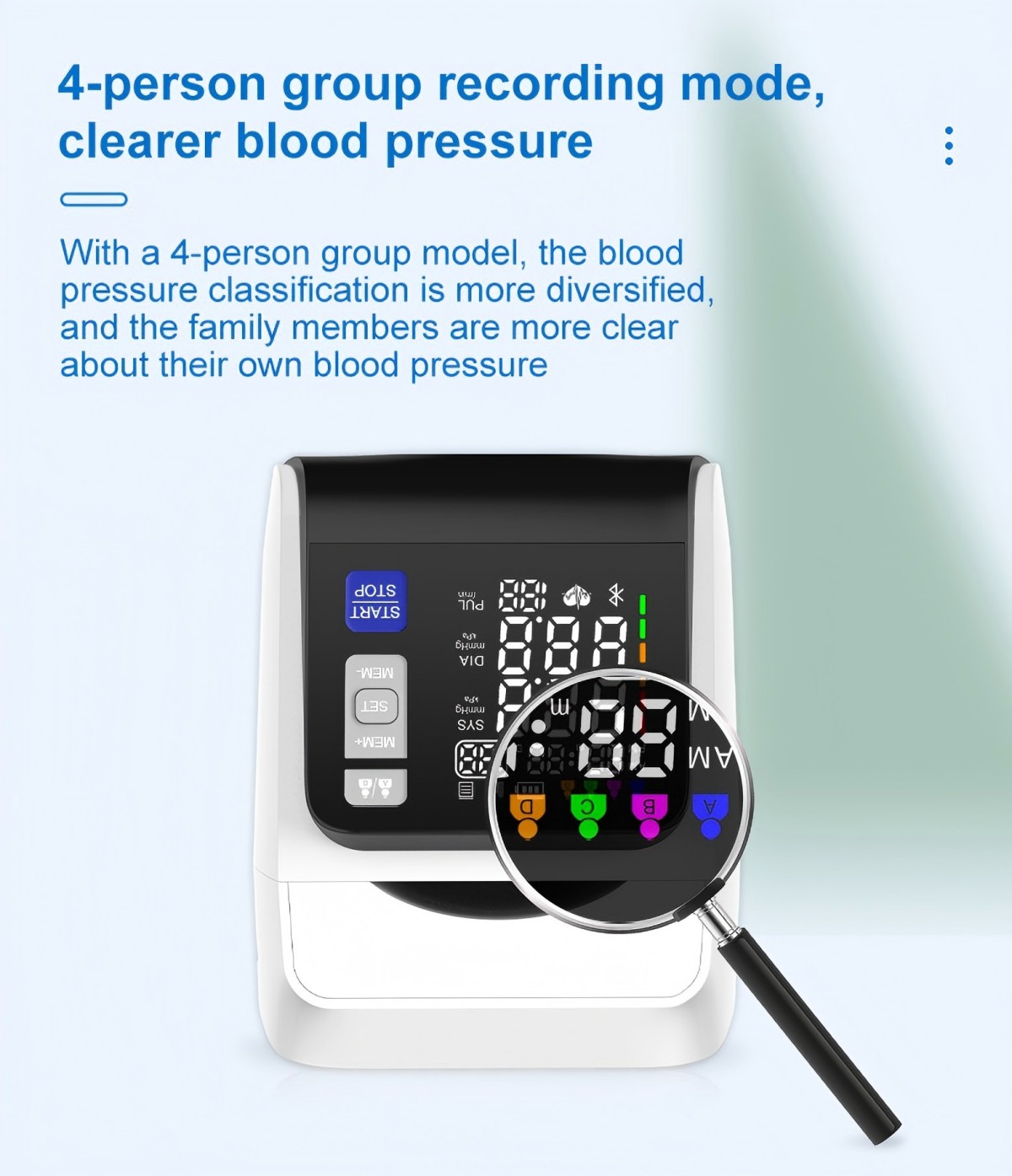

| Storage capacity | Can store 199sets of memory values for4 people |
| Power supply | 4"AAbatteries/Type-C5Vpower supply |
| Power off method | Manualshutdown/automatic shutdown after 3±1minutes
of inactivity |
| Body weight | Approx.1090g(without battery) |
| Elactric shock protection | Class Ilequipment (internal powered equipment when not
using a poweradapter),Type BF applied part |
| Ingress Protection Level | Common equipment |
| Disinfection and sterilization methods | Clean according to manufacturer's recommendations |
| Safety Classification | Equpment that cannot be used in the presence of flammable
anesthetic gas mixtures with air or with oxygen or nitrous oxide |
| Classification of operating modes | Continue to operate |
| Electromagnetic compatibility | Group 1,Class B Equipment |
| Battery life | Under normal temperature conditions,the high-performance
dry battery can be used about 300 times |

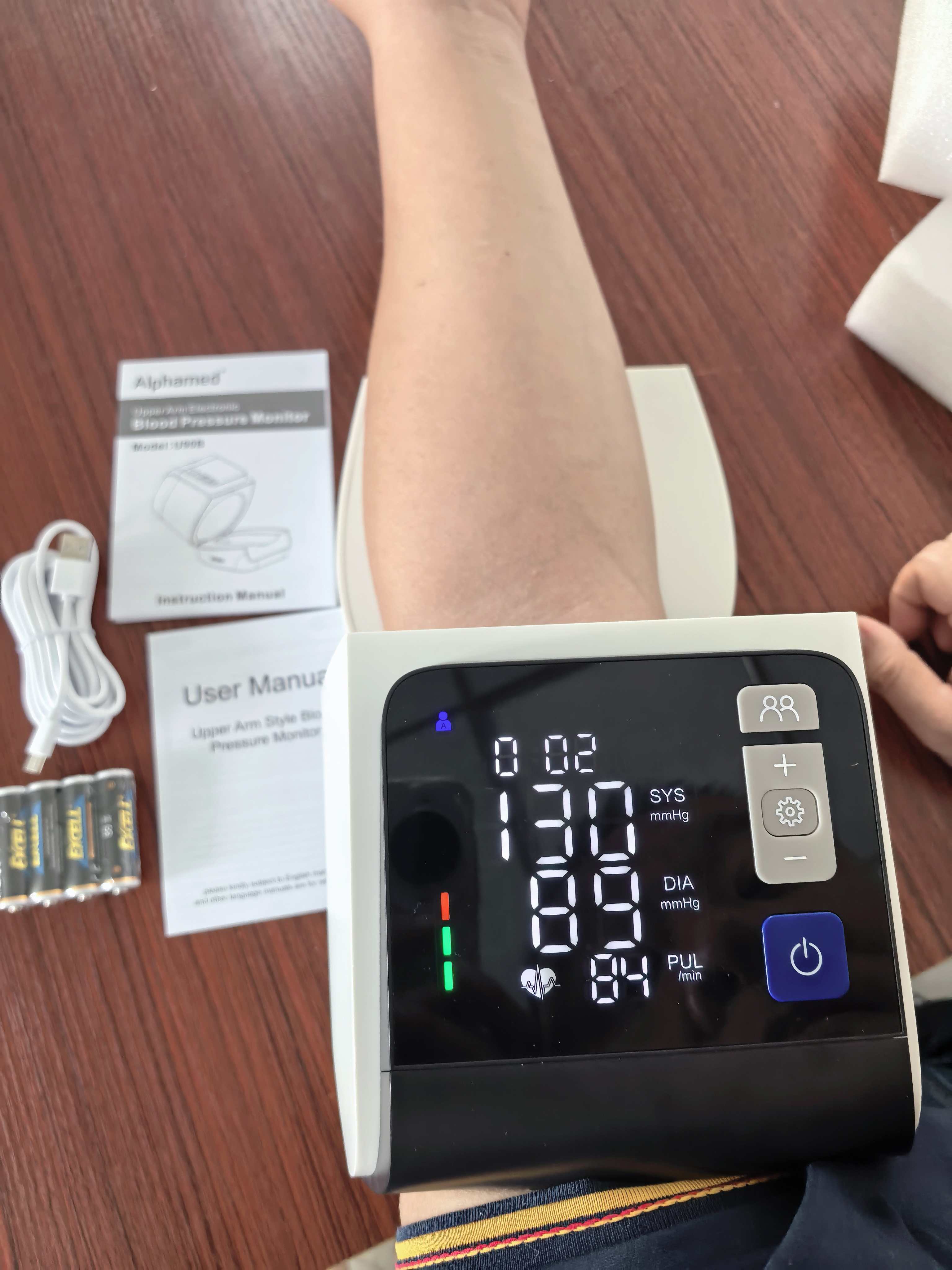

| Appendix | Instruction manual (including warranty card).
4AAdry batteries |
| Working environment | Temperature condition:5ºC~40ºC |
| Humidity condition:15%~93%RH |
| Atmospheric conditons:86kPa~106kPa |
Transportation and
storage environment
time:
less than 3months | Strong impact,direct collision,sun exposure or rain should
be avoided during transportation.The packaged blood
pressure monitor should be stored in an environment with
a temperature of -20°Cto 55ºC,a relative humidity of 10%
-93%RH,and an atmospheric condition of 86kPa-106kPa.
No corrosive gas and wll-ventilated room.If stored or used
outside the manufacturer's specified temperature and
humidity ranges,the system may not perform to stated
performance specifications |
