High Frequency Pneumology X Ray System ACM-P32

Availability:
Quantity:

Item

Specification

Xray Tube Assembly

Focus: small focus 0.6mm; large focus 1.2mm

Anode heat capacity 220KHU

The maximum voltage 125KV

Maximum current 320mA

X-ray high-frequency high-voltage generator

Power Output 32KW

Tube Voltage 40-125KV

Tube Current 30-320mA

MachineFrame and chest bucky system

SID: 120-150CM

Column Up and down movement range:0-1400mm

Column horizontal movement range:1600mm

Chest bucky stand up and down movement range:0-1400mm

Chest bucky stand and the tube are synchronized to move up and down

Tube rotation Angle:±135°


SN

Description

Quantity

1

High Frequency Generator 32KW

1set

2

Xray Tube 320mA

1set

3

High Voltage Cable

2pcs

4

Collimator

1set

5

Machine Frame with column track

1set

6

Electric Bucky Stand 17*17inch

1set

7

Condition Setting&Exposure Control Panel

1set

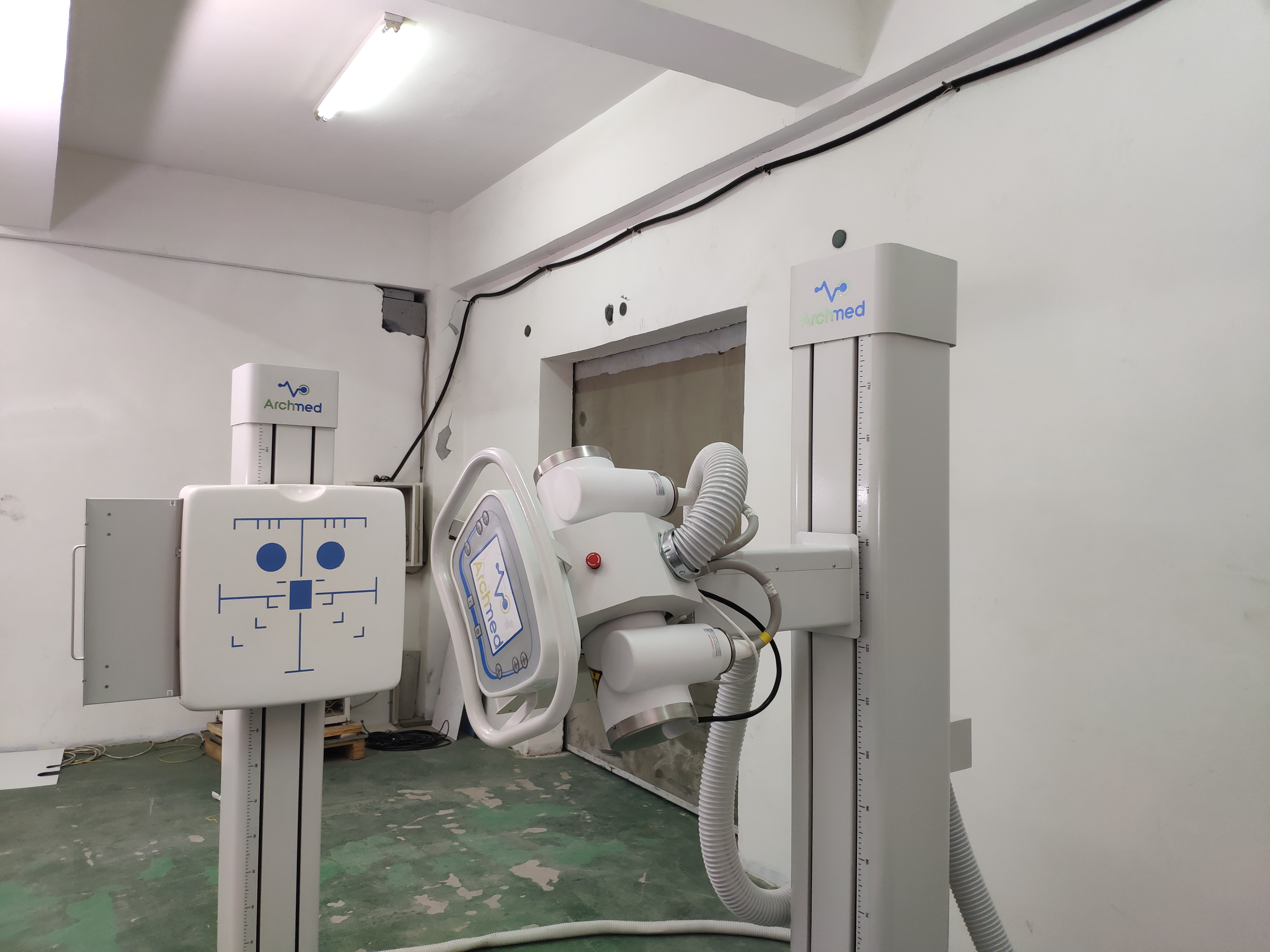

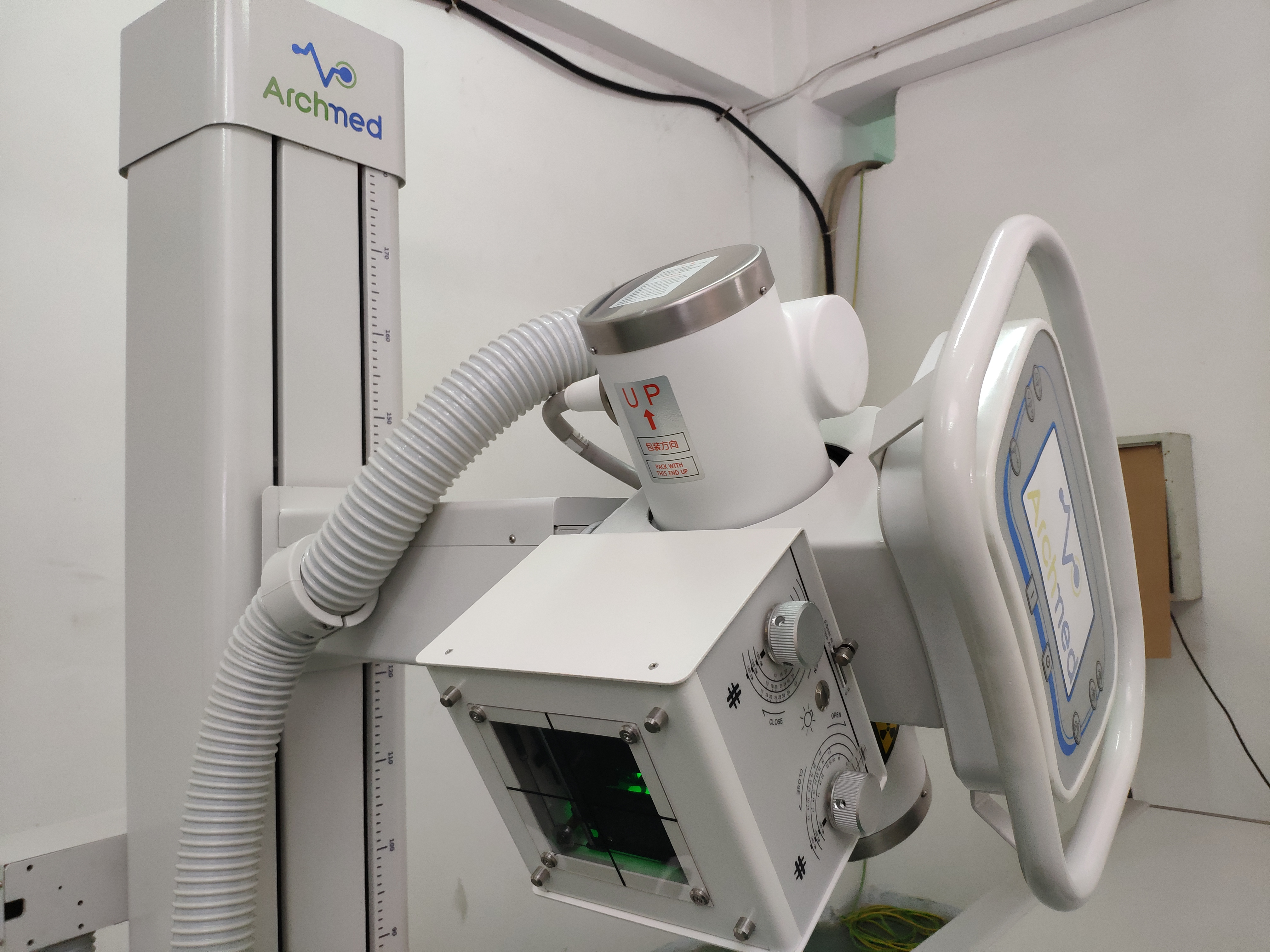

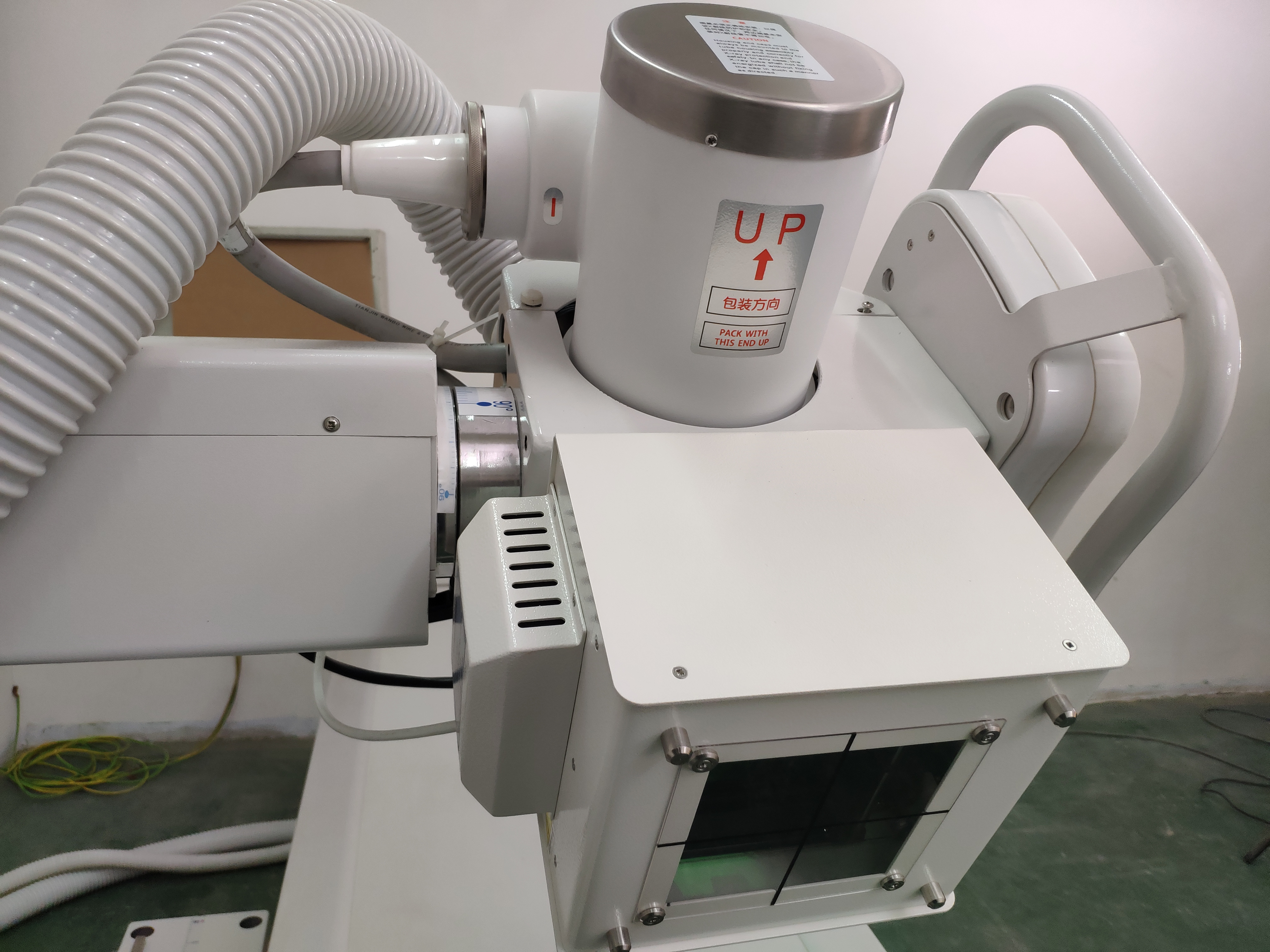

ACM-P32 实物图 (1)ACM-P32 实物图 (2)ACM-P32 实物图 (3)
