High Frequency Mobile X-ray Unit ACM100

Availability:
Quantity:

Power output: 5.0KW.

Inverter frequency: 30KHz.

X-ray Tube: Fixed anode.   Focus: 1.5mm.    Thermal capacity: 600KJ.

Tube voltage: 40120KV(interval 1KV).

mA Range:30-100mA

mAs: 1200mAs(47 steps).

Power supply: 220V/50Hz, or 220V/60Hz, or 110V/60Hz.


Radiography specification setting:

8” touch-screen. Choose the parts of body to finish KV & mAs value setting,

or separately adjust KV & mAs value.



Exposure control method:

Wire control(hand control device) & wireless control(remote control device, microwave type, in 20m)


Modular High-Voltage Generator:

High Frequency and high-voltage generator, KV, mAs closed loop control, steady output; Real-time control by microprocessor, guarantee the accuracy and repeatability of exposure.



Wheel:

Select the imported large-size wheel, being quite during moving, portable. Even in narrow space, it also can move steadily and rapidly.

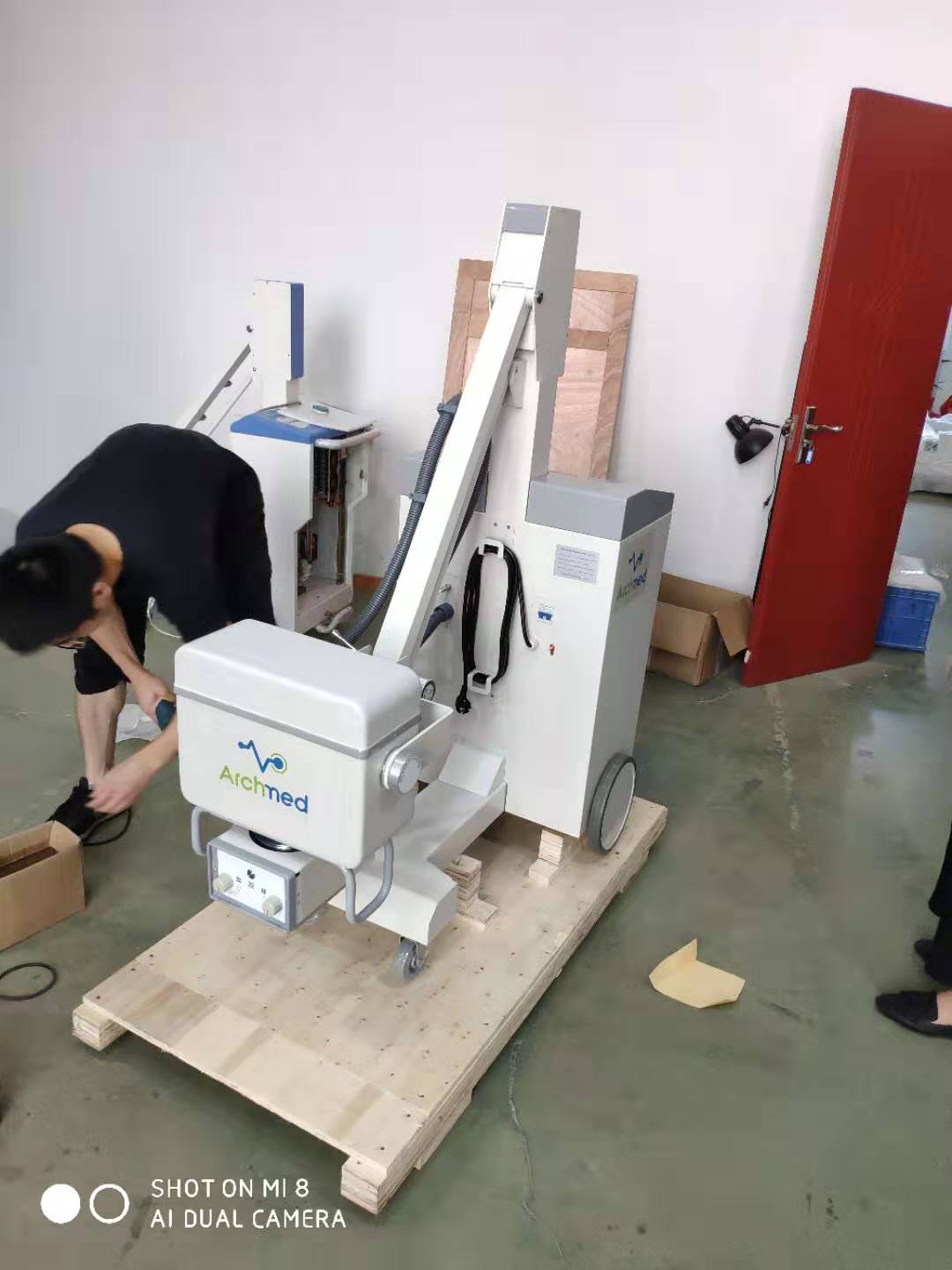

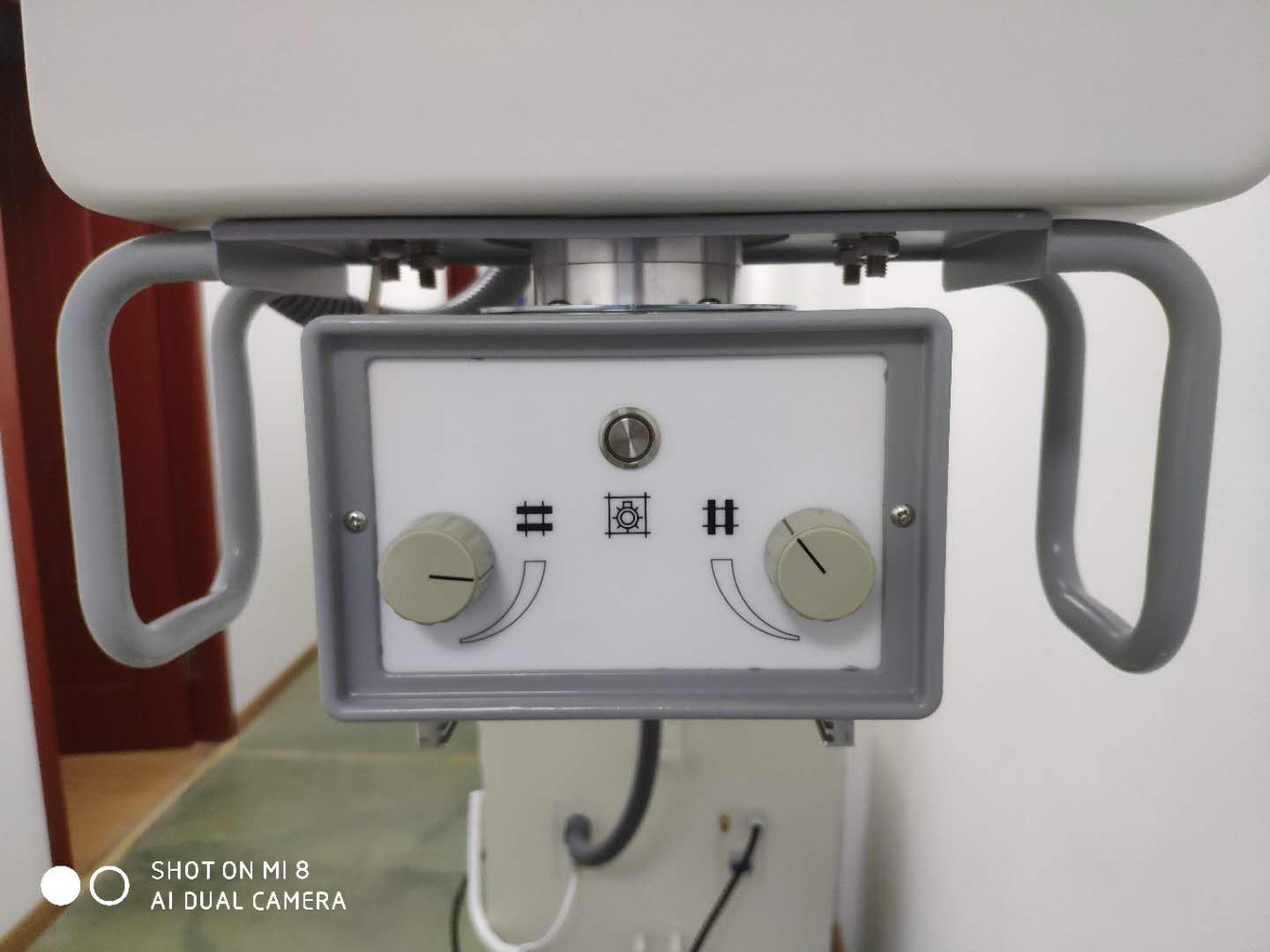

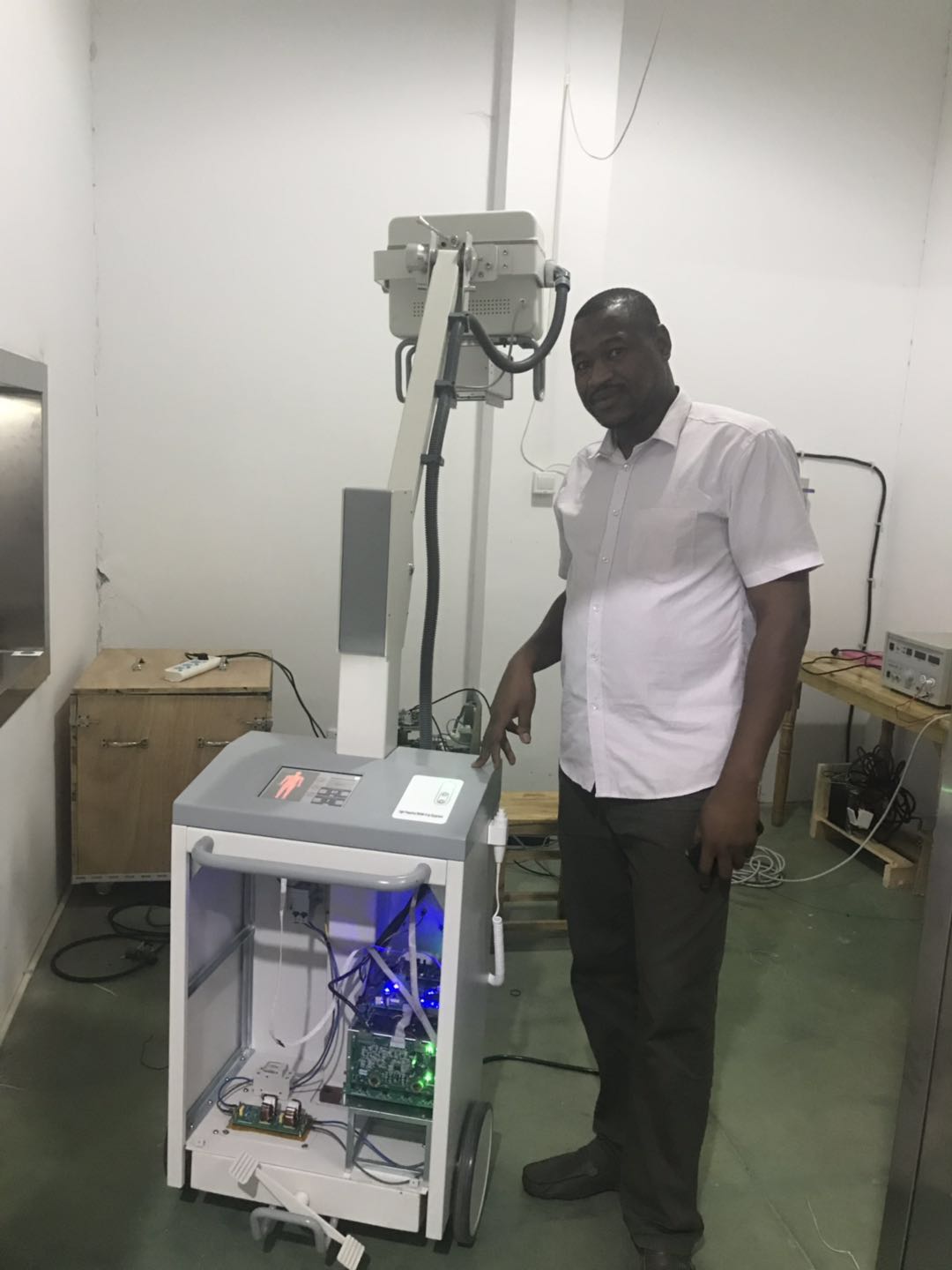

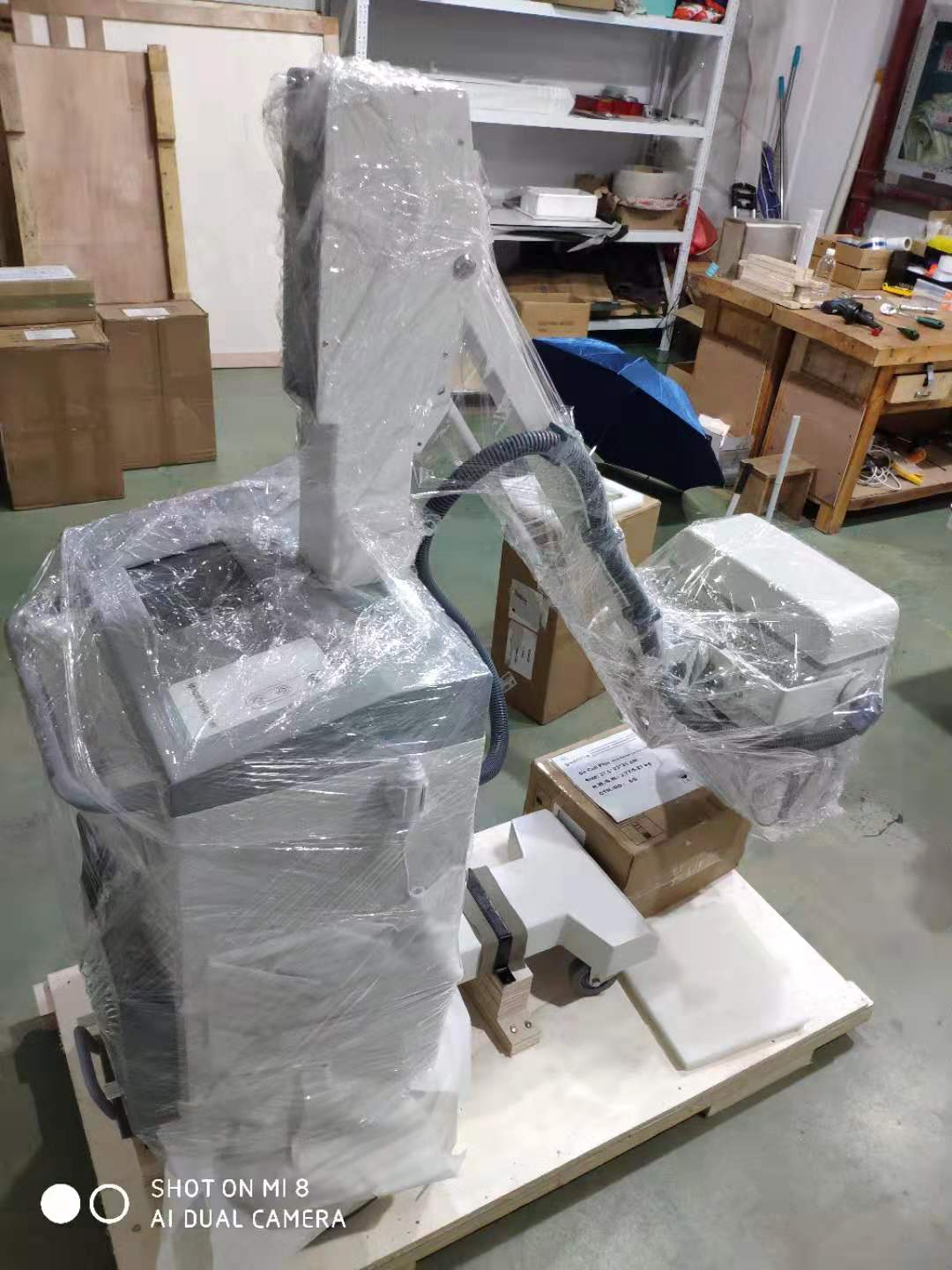

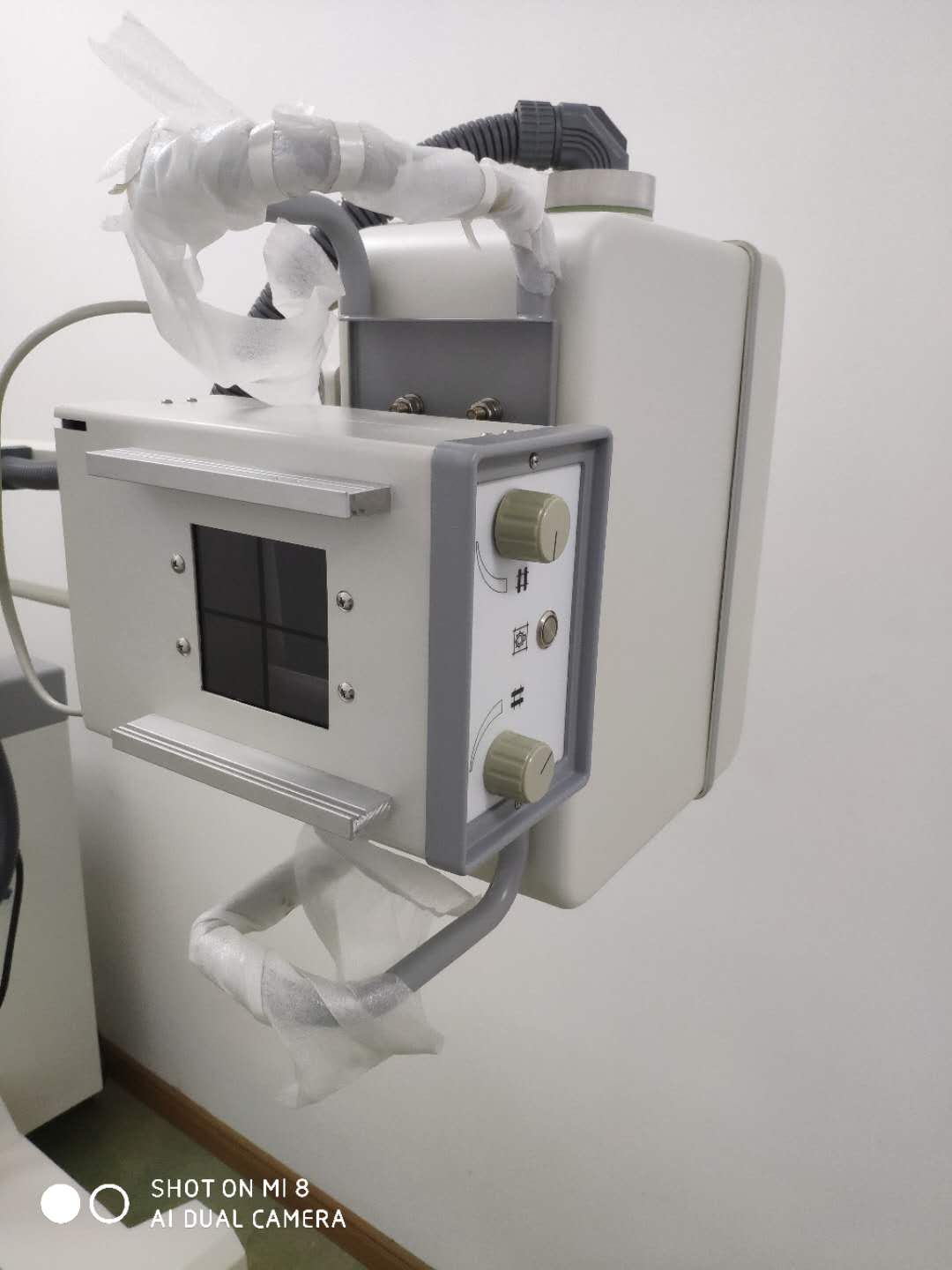

ACM100 实物图 (2)ACM100 实物图(3)ACM100 实物图(6)ACM100 实物图(8)ACM100 实物图(7)ACM100 实物图(9)ACM100 实物图(10)
