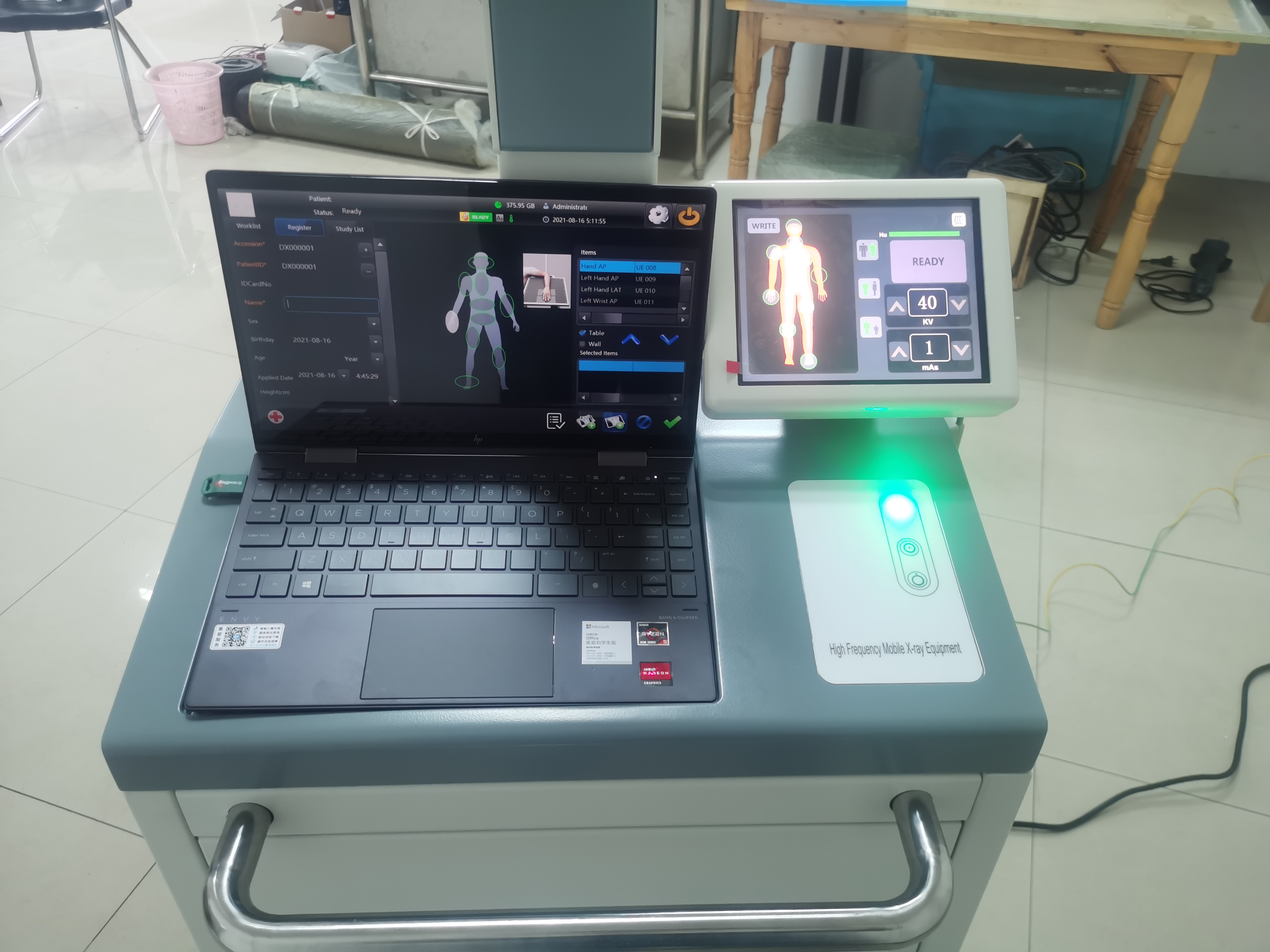

Display A: 8inch touch screen color type to set radiography conditions
Display B: 13inch high performance touch screen tablet PC workstation & software ,with DICOM3.0 port for printing Intel I5 CPU, 8G RAM, 2G independent Display Card, double 1000MB 5G net card, 512GB hard disk
Part C: Mars1717V 17*17inch Wireless Flat panel Detector(Csi type)
Image work station
Small portable laptop built in x-ray system, including software, which conclude DICOM connector to PACS system, which can get image and transfer image to medical display, can do printing and edition on that.
Exposure control method:
Wire control(hand control device) & wireless control(remote control device, microwave type, in 20m)
Modular High-Voltage Generator:
High Frequency and high-voltage generator, KV, mAs closed loop control, steady output; Real-time control by microprocessor, guarantee the accuracy and repeatability of exposure.
Wheel:
Select the imported large-size wheel, being quite during moving, portable. Even in narrow space, it also can move steadily and rapidly.
Flat Panel Detector
China No.1 Brand I-ray Wireless Flat Panel Detector Mars 1717V assure the high quality digital image.
