Model No | ACM-DR320 |
X-ray high-frequency high-voltage generator | Power Output | 32KW |
Tube Voltage | 40-125KV |
Tube Current | 30-320mA |
Power Voltage | 220V |
Xray Tube Assembly | Small Focus | 0.6mm |
Large Focus | 1.2mm |
Anode Heat Capacity | 240KHU |
The maximum voltage | 125KV |
Maximum current | 320mA |

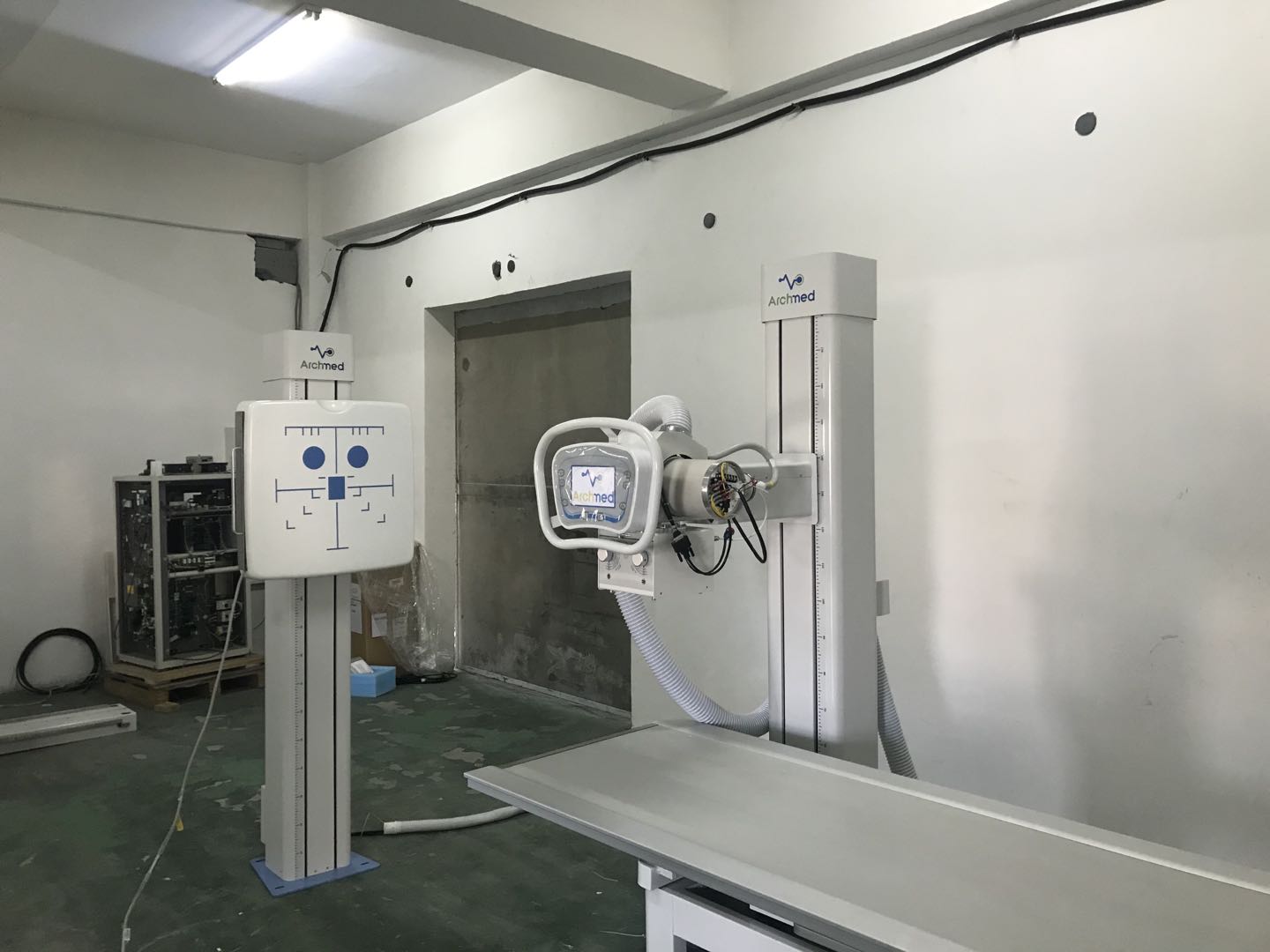

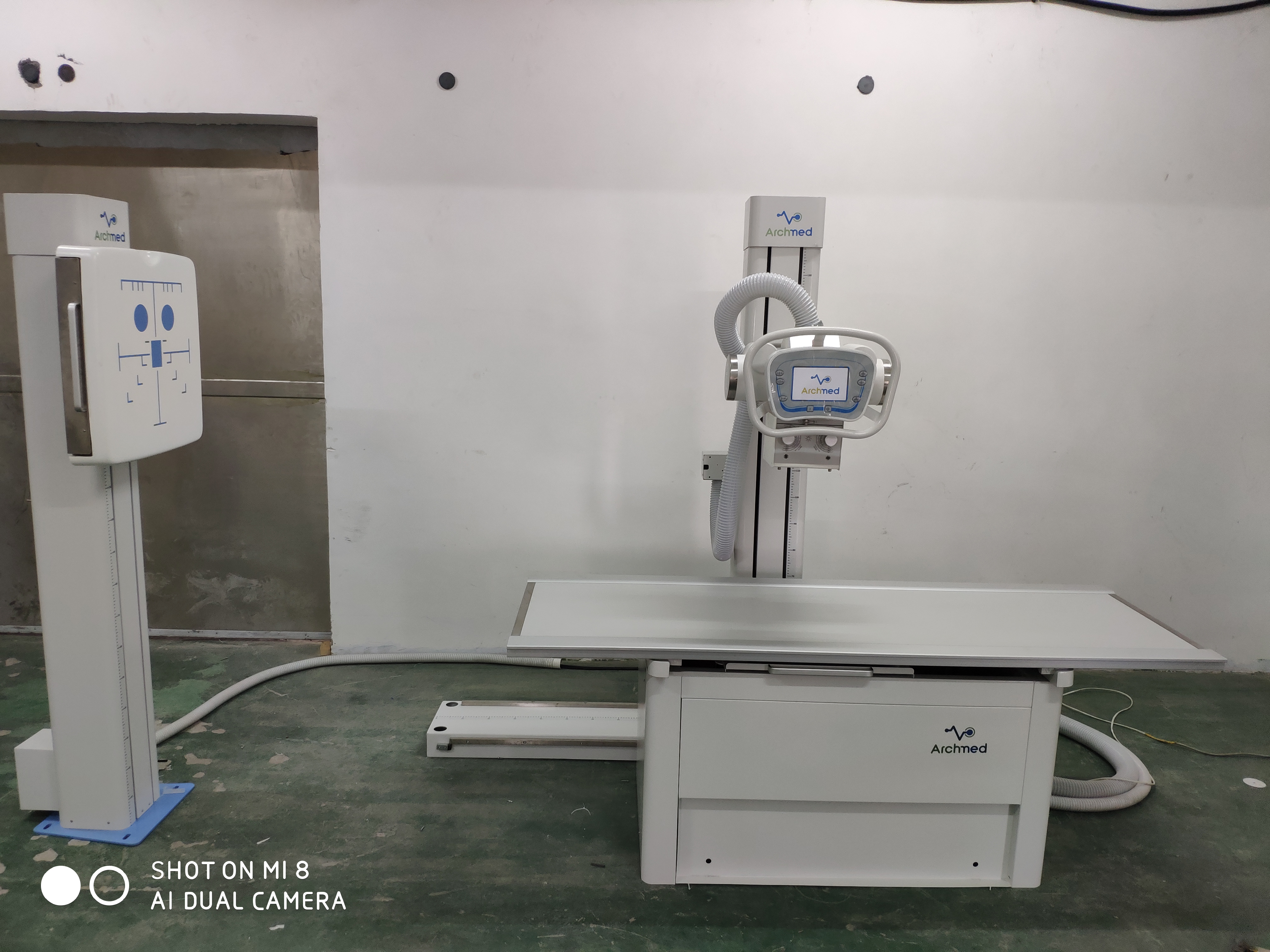

Bed and chest frame system | Electric-Magnetic Fixed Bed (L2000mm*W720mm*H750mm) |
Column Up and down movement range:0-1400mm |
Column horizontal movement range:1600mm |
Chest stand bucky up and down movement range:0-1400mm |
Chest stand bucky and the tube are synchronized to move up and down |
Tube rotation Angle:±190° |
Flat Panel Detector | Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 427×427m2 |
Pixel Matrix | 3072×3072 |
Pixel Pitch | 139μm |
Spatial Resolution | 3.6lp/mm |
AD Conversion | 16bit |
Data Transmission | Gige |
Trigger Mode | AED/Software/Prep |
Preview Image Time | 3s |
Full Image Time | 5s |
Dimensions | 460×460×15mm |
Weight | 4kgs |
Power Dissipation | 30W |
Image acquisition workstation system | Computer | DELL Brand |
Hardware | CPU: i3, memory ≥ 8G; hard disk ≥ 1T |
Display | 23" LCD High Resolution Monitor |
