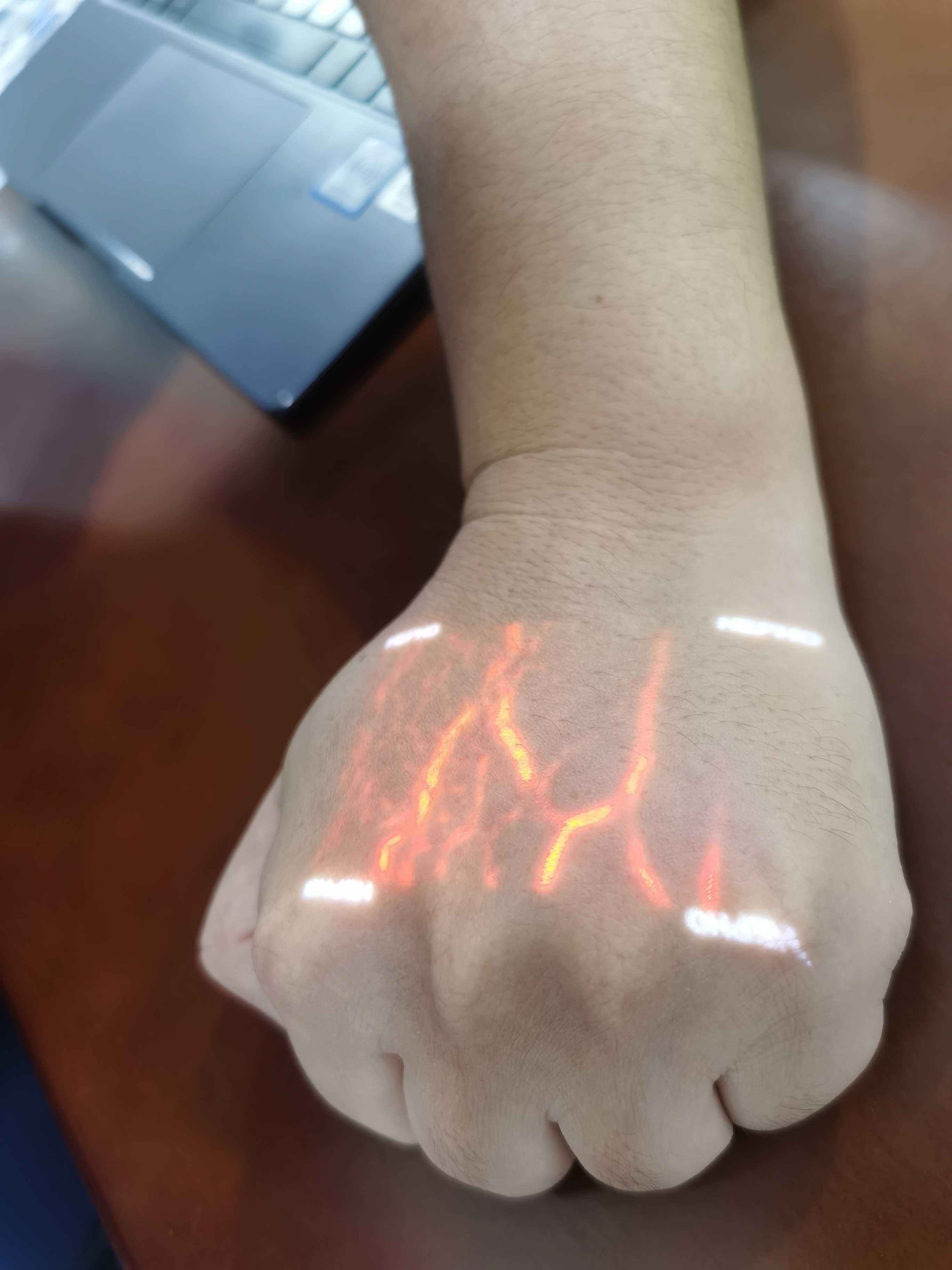

·High Resolution lmage
High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images.
·Multiple Colors Display
Grey white,green, green background, red,blue, bluebackground, optional for different skin group.
·Multiple sizes and Bright-ness Display
Large, medium, small, and very small images optional and four level brightness optional.·Multiple Modes Display
Normal, enhanced and depth, depth mode with threepuncture position prompts: deep,medium, and shallow
-Multiple Fixed Option
Mobile stand, benchtop, and handheld
·High Resolution lmage
High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images.

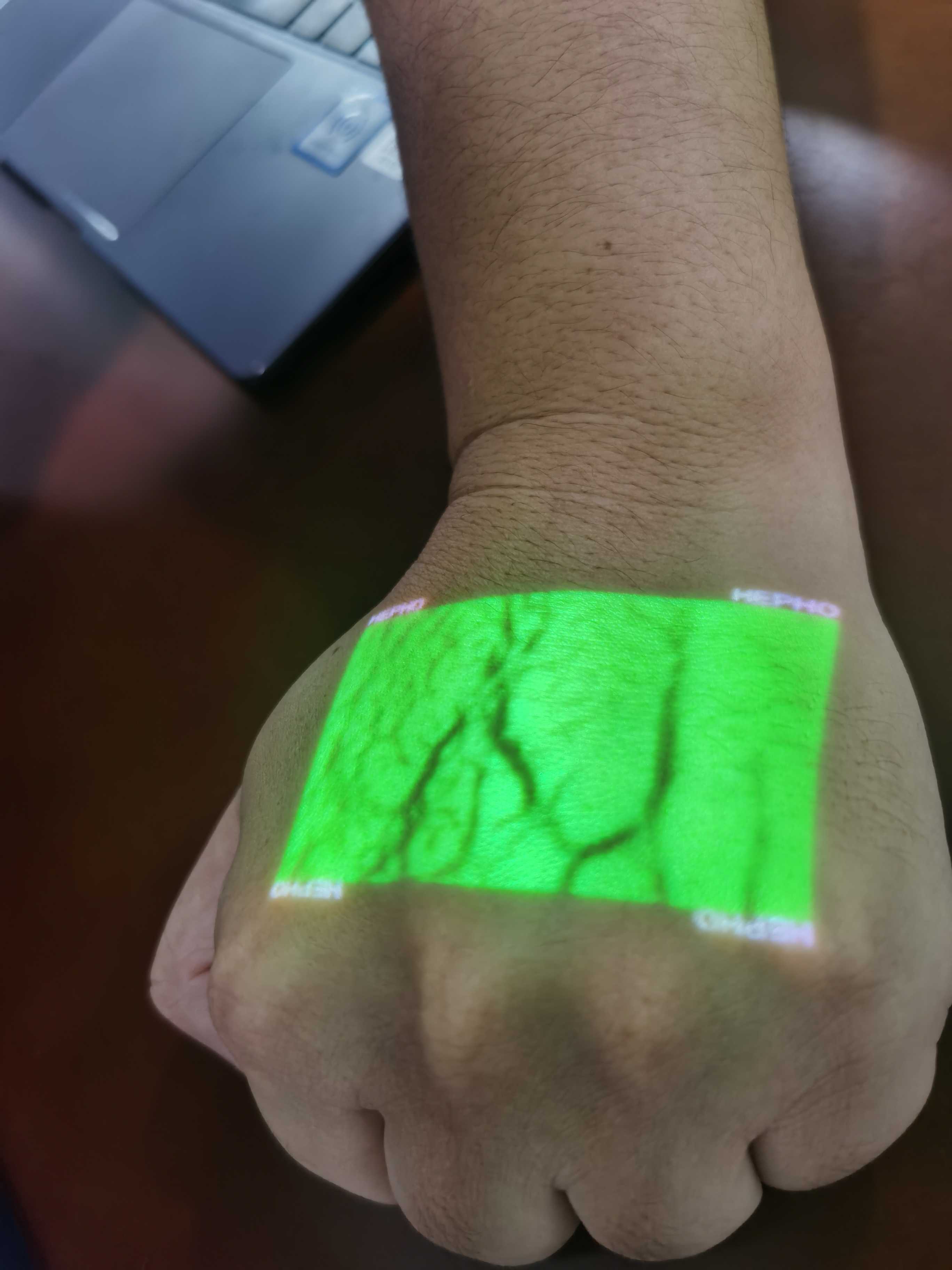

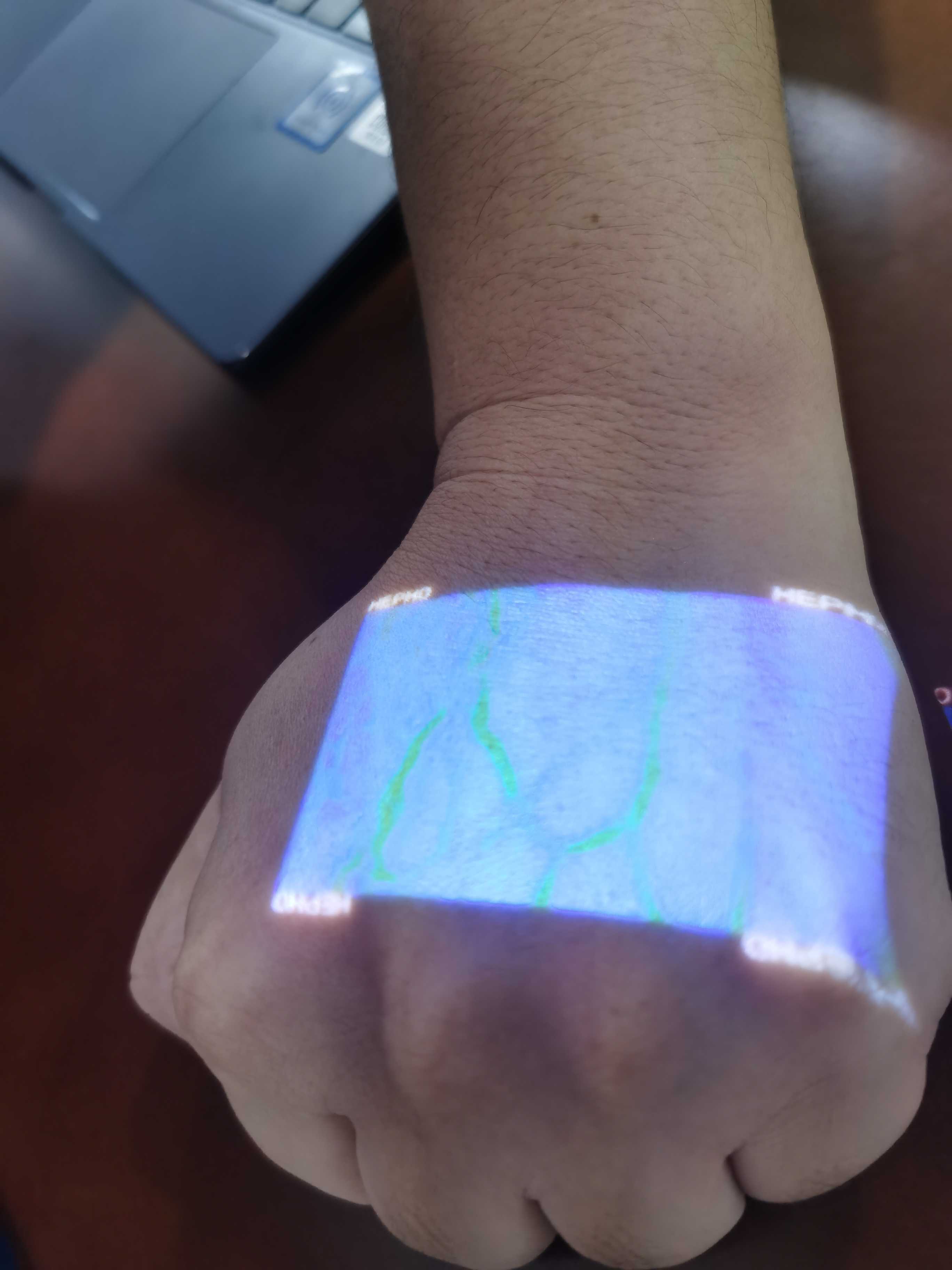

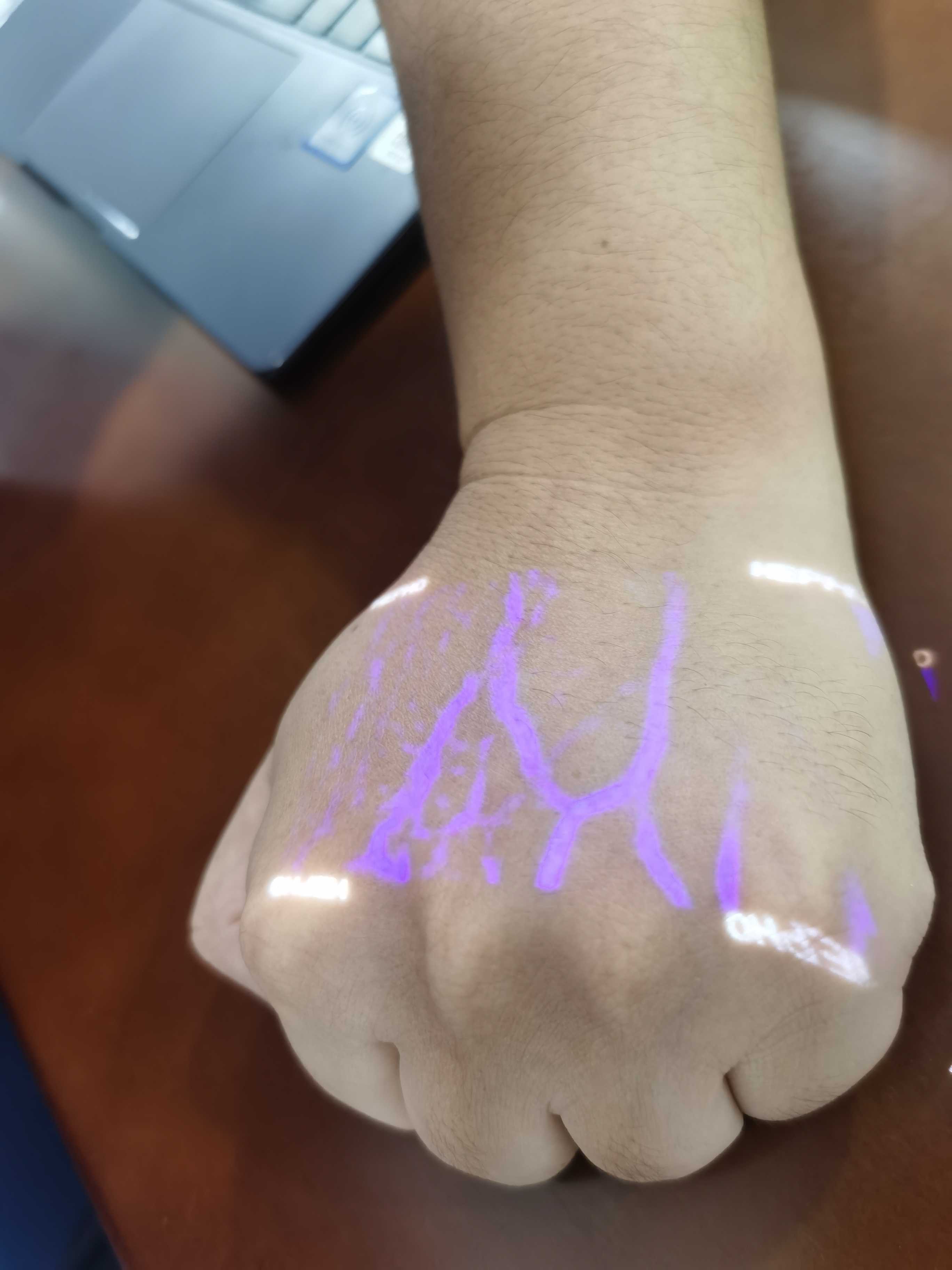

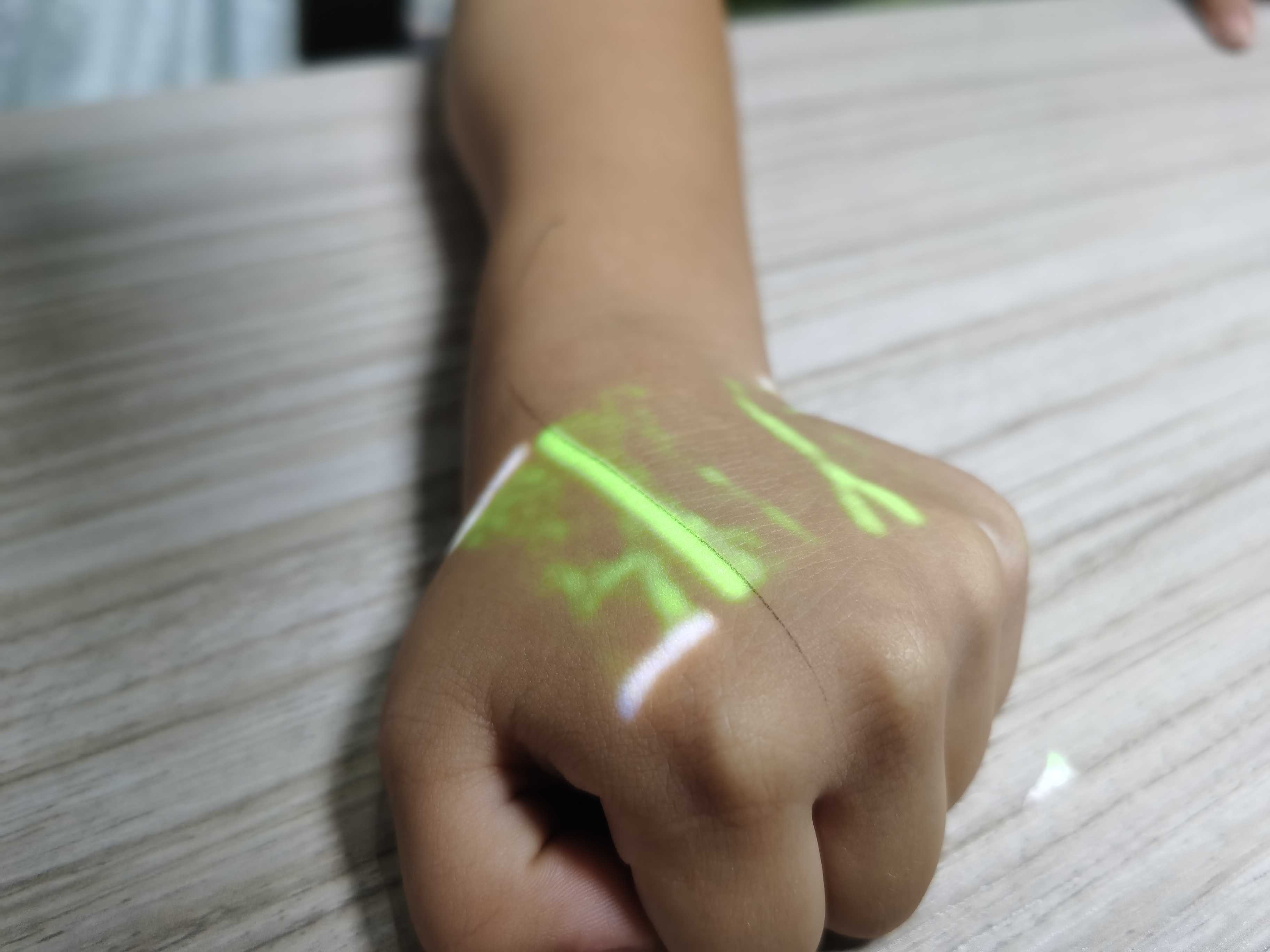

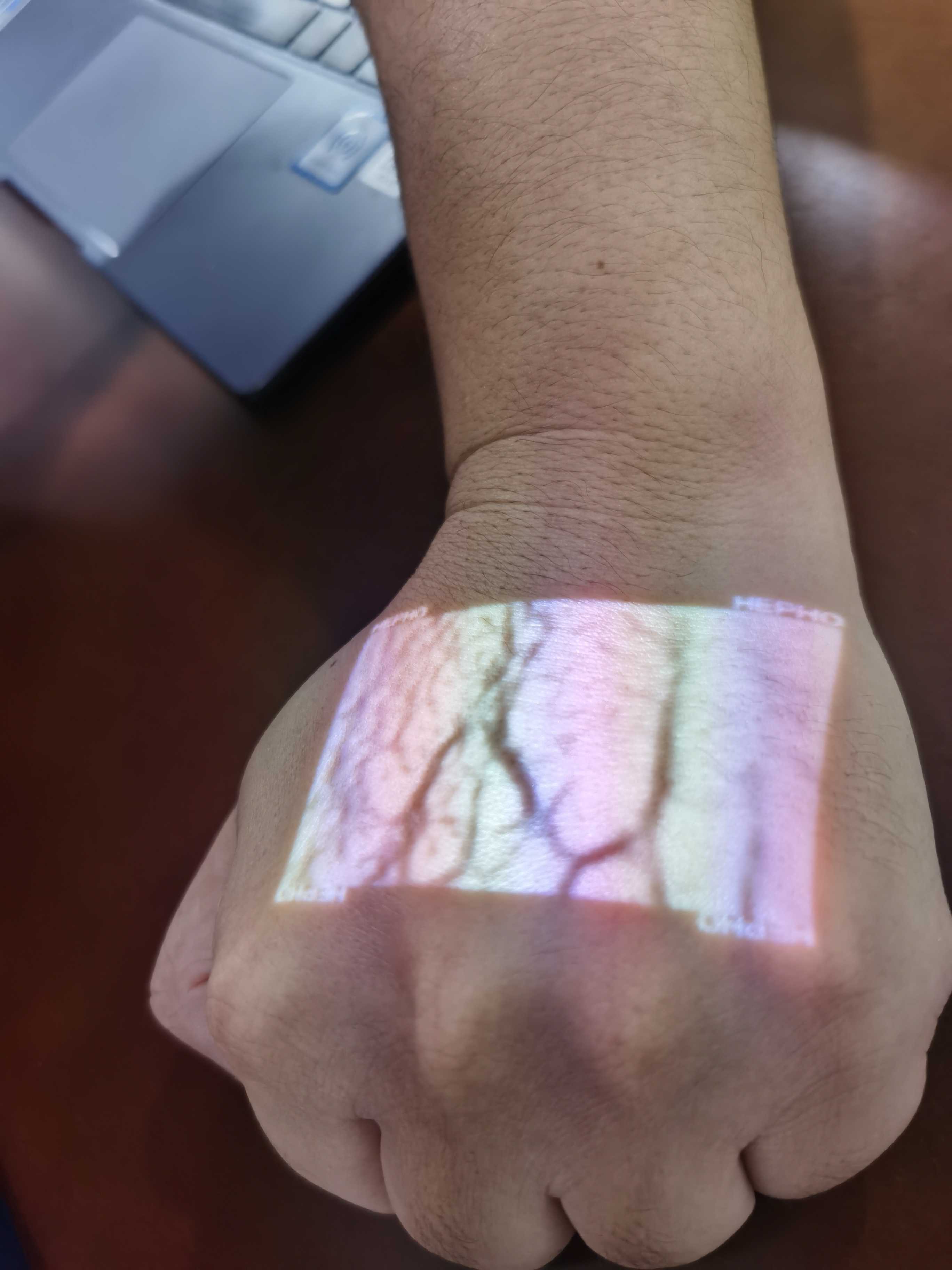

·Multiple Colors Display
Grey white,green, green background, red,blue, bluebackground, optional for different skin group.
·Multiple sizes and Bright-ness Display
Large, medium, small, and very small images optional and four level brightness optional.·Multiple Modes Display
Normal, enhanced and depth, depth mode with threepuncture position prompts: deep,medium, and shallow
-Multiple Fixed Option
Mobile stand, benchtop, and handheld
1.Light Source: Near lnfrared
2.Projector Resolution(pixel):854*480
3.Projection Size: Large,Medium, Small, Very Small
4.Projection Color: Grey white, green, green background, red, blue, blue background
5.Projection Brightness: 4 levels adjustable
6.Projection Mode: Normal, enhanced, depth
7.Depth Prompts: Deep, medium, shallow
8.Resolution Speed:60frames/s
9.Resolution Deviation:≤0.1mm
10.Best Projection Distance: 200±20mm
11.Minimum ldentified Blood Vessel Diameter: >0.4mm
12.Wave Length: 850nm
13.Maximum Detection Depth: ≤8mm
14.Sleeping Function: 30 minutes no operation goes into sleeping function

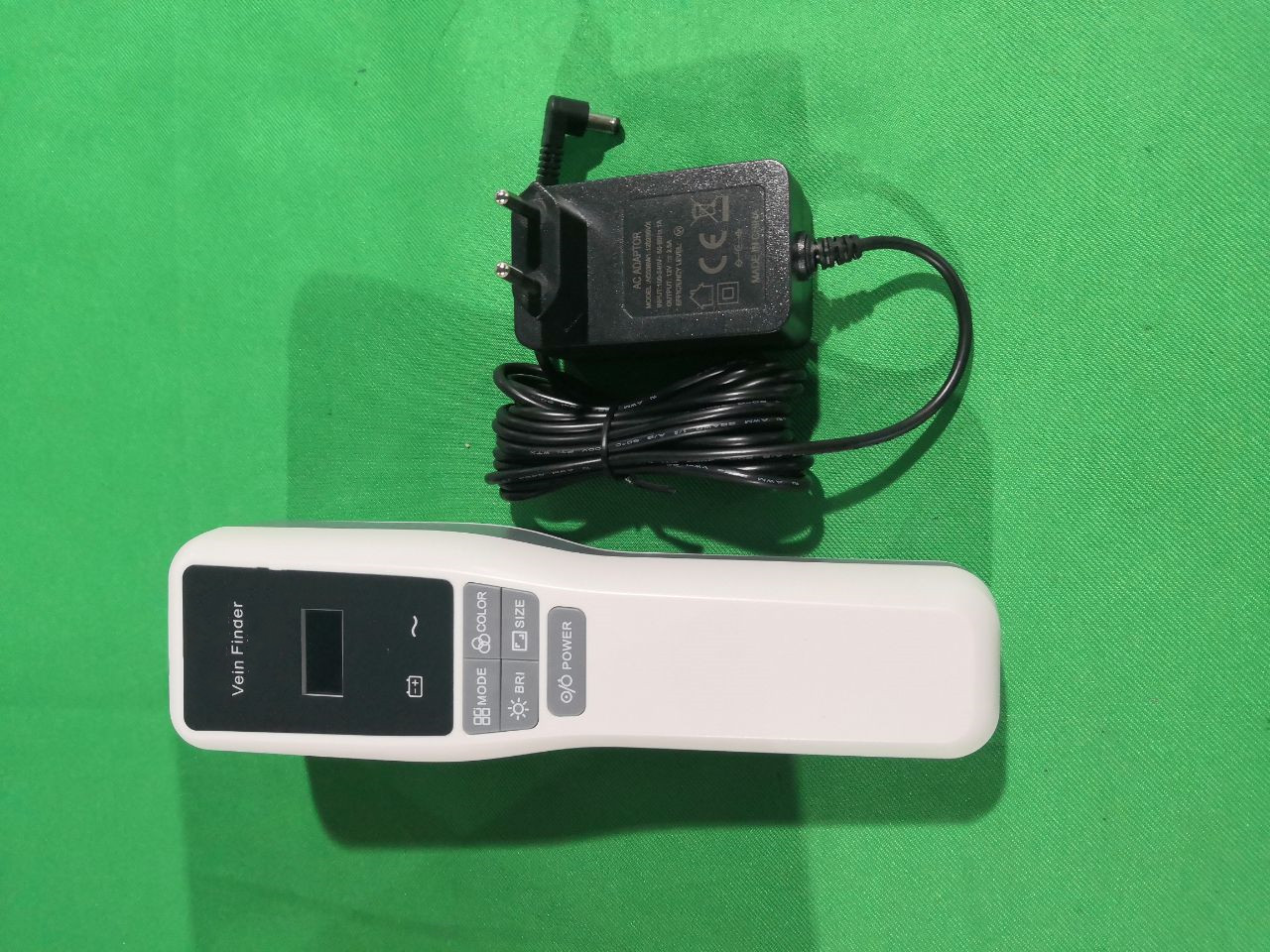

15.Display: 0.96inch OLED display module,displaying pixels,battery,brightness,color,mode, sleep countdown etc.
16.Main Unit Consumption: 16W
17.Power: 100~240V,50/60Hz,Adapter: 12V,2.5A
18.Battery: Internal 7.2V 2200mAh,charging timew3h, working time >4h
19.Fixed Option: Mobile stand, benchtop, handheld
20.Weight: 480g
21.Dimension:220mm*65mm*65mm
1.Light Source: Near lnfrared
2.Projector Resolution(pixel):854*480
3.Projection Size: Large,Medium, Small, Very Small
4.Projection Color: Grey white, green, green background, red, blue, blue background
5.Projection Brightness: 4 levels adjustable
6.Projection Mode: Normal, enhanced, depth
7.Depth Prompts: Deep, medium, shallow
8.Resolution Speed:60frames/s
9.Resolution Deviation:≤0.1mm
10.Best Projection Distance: 200±20mm
11.Minimum ldentified Blood Vessel Diameter: >0.4mm
12.Wave Length: 850nm
13.Maximum Detection Depth: ≤8mm
14.Sleeping Function: 30 minutes no operation goes into sleeping function
15.Display: 0.96inch OLED display module,displaying pixels,battery,brightness,color,mode, sleep countdown etc.
16.Main Unit Consumption: 16W
17.Power: 100~240V,50/60Hz,Adapter: 12V,2.5A
18.Battery: Internal 7.2V 2200mAh,charging timew3h, working time >4h
19.Fixed Option: Mobile stand, benchtop, handheld
20.Weight: 480g
21.Dimension:220mm*65mm*65mm
