Full-auto Hematology Analyzer LH90

Availability:
Quantity:

1.3-part differentiation of WBC, 23 parameters, single channel counter

2.Volume measurement by time ,not wrong warning

3.Adanced valve technology,long life

4.RS232 interface, PC connecting,up to 60 samples test per hour

5.Electrical resistance for counting and SFT method of hemoglobin

6.Low sample consumption : venous 9.8 ul, capillary 9.6 ul, pre-diluted 20 ul for twice testing one time

7.8.4”color TFT, Windows interface all testing parameter displayed simultaneously

8.Windows operation system graphical buttons mouse and keyboard operation

9.Double convolution and intelligent fitting

10.Automatic diluting , Mixing , rinsing and clog clearing

11.Automatically sample probe cleanning (inside and outside)

12.Large storage capacity: up to 10,000 samples +3 histogram

13.Internal thermal-sensitive printer or external printer

14.RS232 interface, PC connecting


1.Methodology: Electrical resistance for counting, hemoglobin cyanidemethod and SFT method for hemoglobin

2.Parameter: 3-part differentiation of WBC; 20 parameters and 3 colorhistograms (WBC, RBC, PLT)

3.Work mode : double Channel + unique Hemoglobin test system

4.Sample volume: 9.8uL for Venous and capillary mode, 20uL for pre-dilutedmode

5.Throughput: More than 60 samples per hour, operate 24 hours per day,auto sleeping and waking-up functions

6.Storage: up to 100000 sample results including histograms can be stored,convenient for inquiry and management of history data

7.Operation langue: English

8.QC control : X-B,L-J,X , SD,CV %

9.Reference Value Setting : Male , Female, Children, Neonate

10.Input / output : RS232,parallel printer and keyboard

11.Print : Graphic thermal printer with various printing format, optionalexternal printer

12.Temperature : 18℃ - 30°C,wet ≤10-90%

13.Power supply : 220V士22 VAC, 50±1Hz

14.Dimension : 33 CM ( L ) * 38 CM ( W)*43 CM(H)15.weight : 20 KG

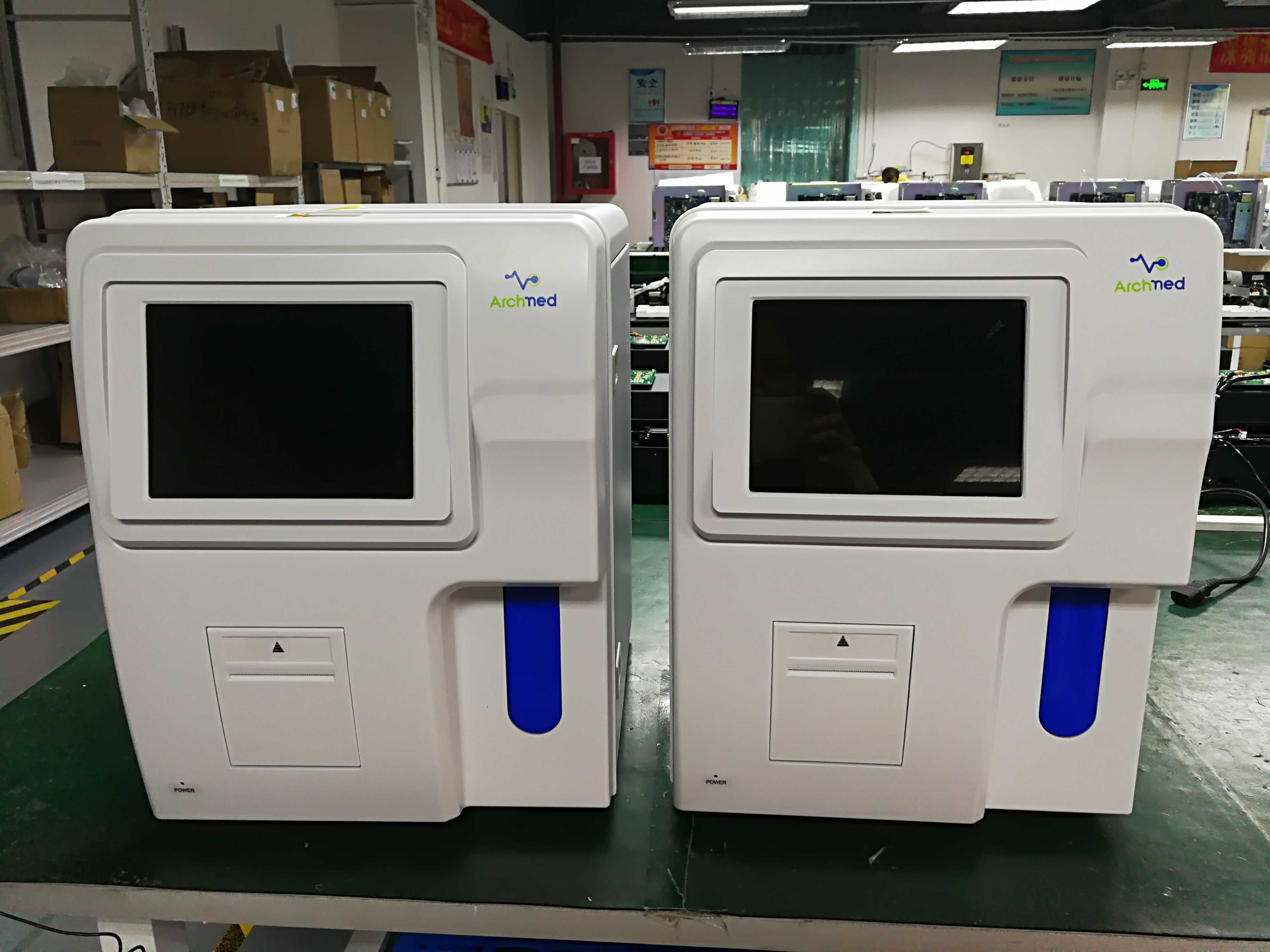

LH90 (1)LH90 (2)
