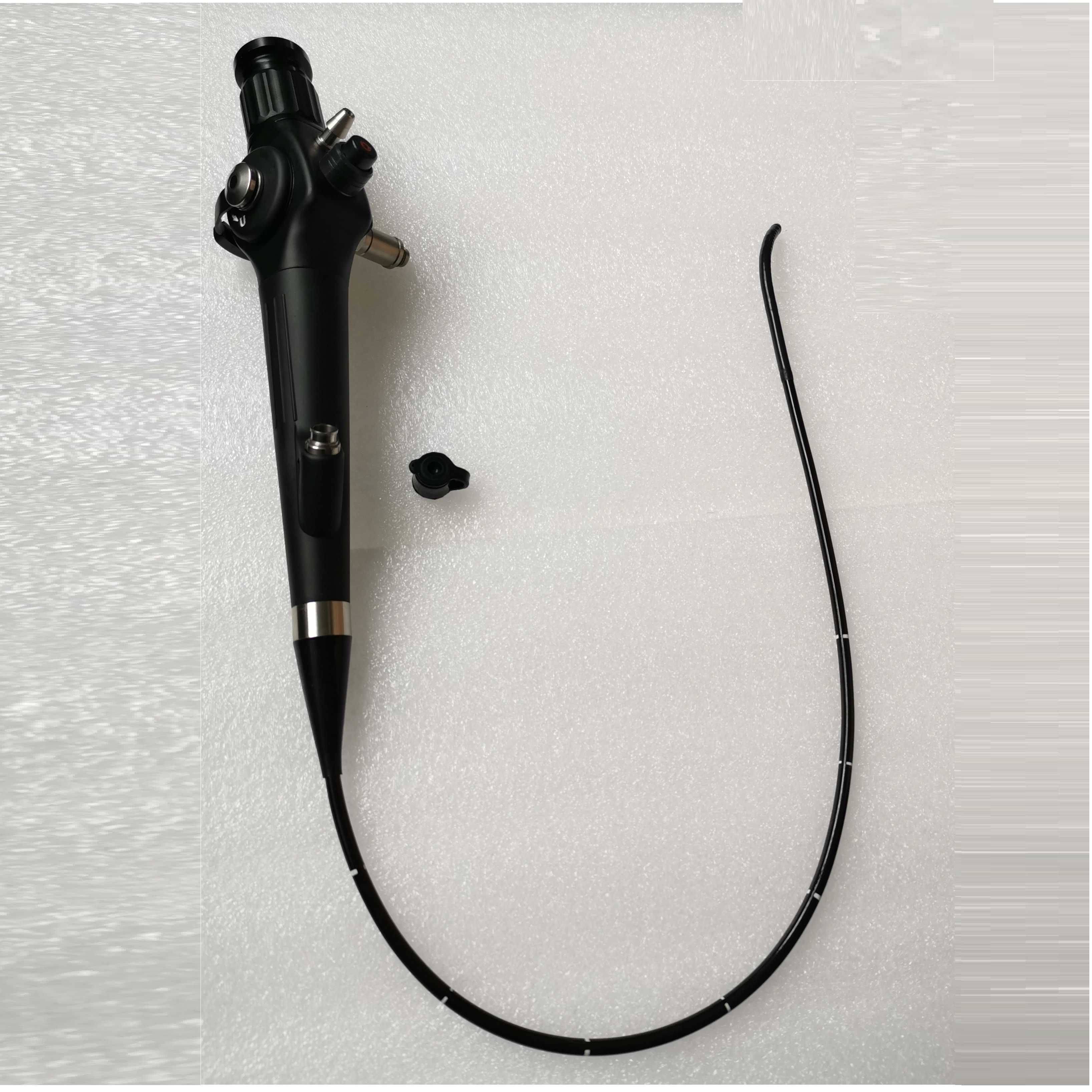

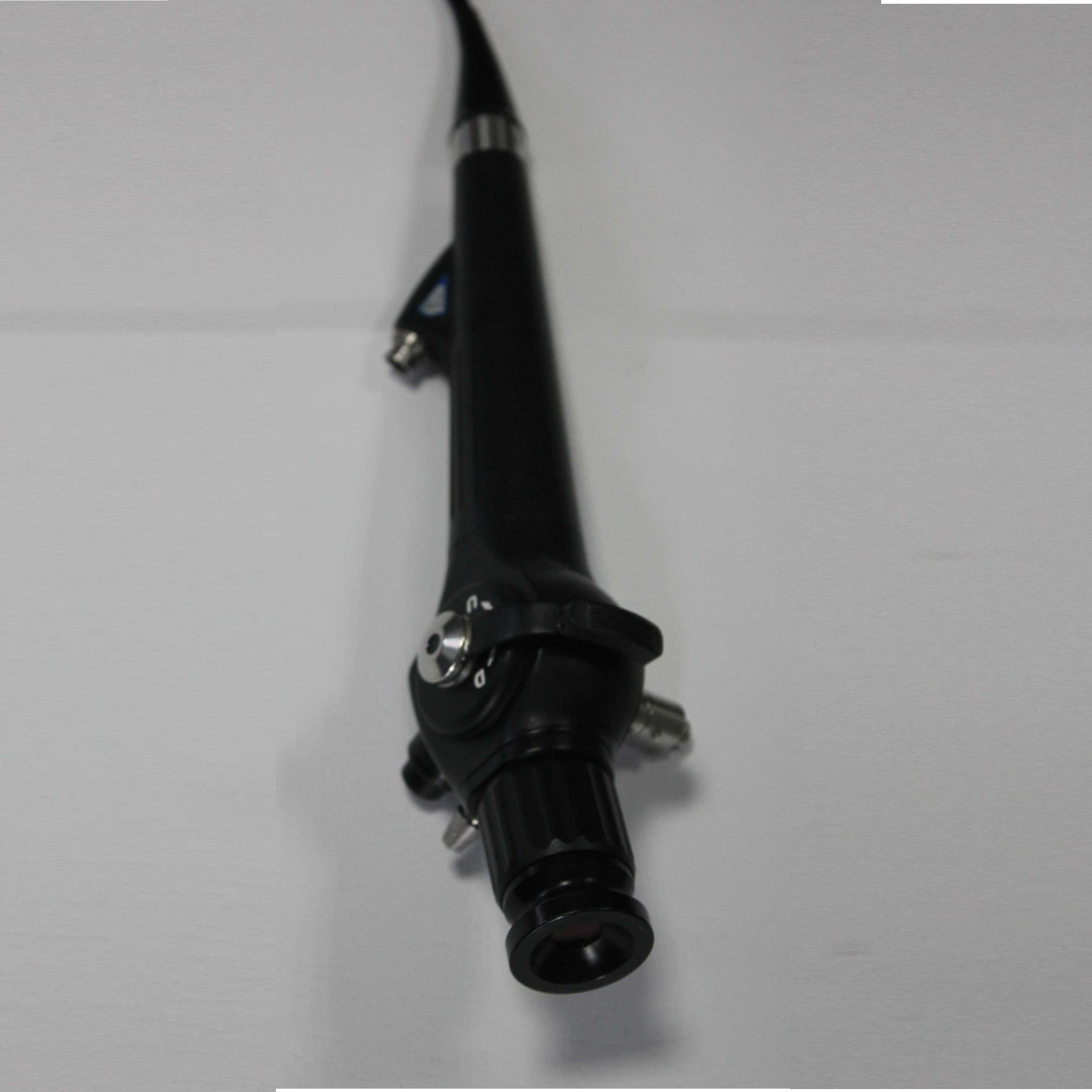

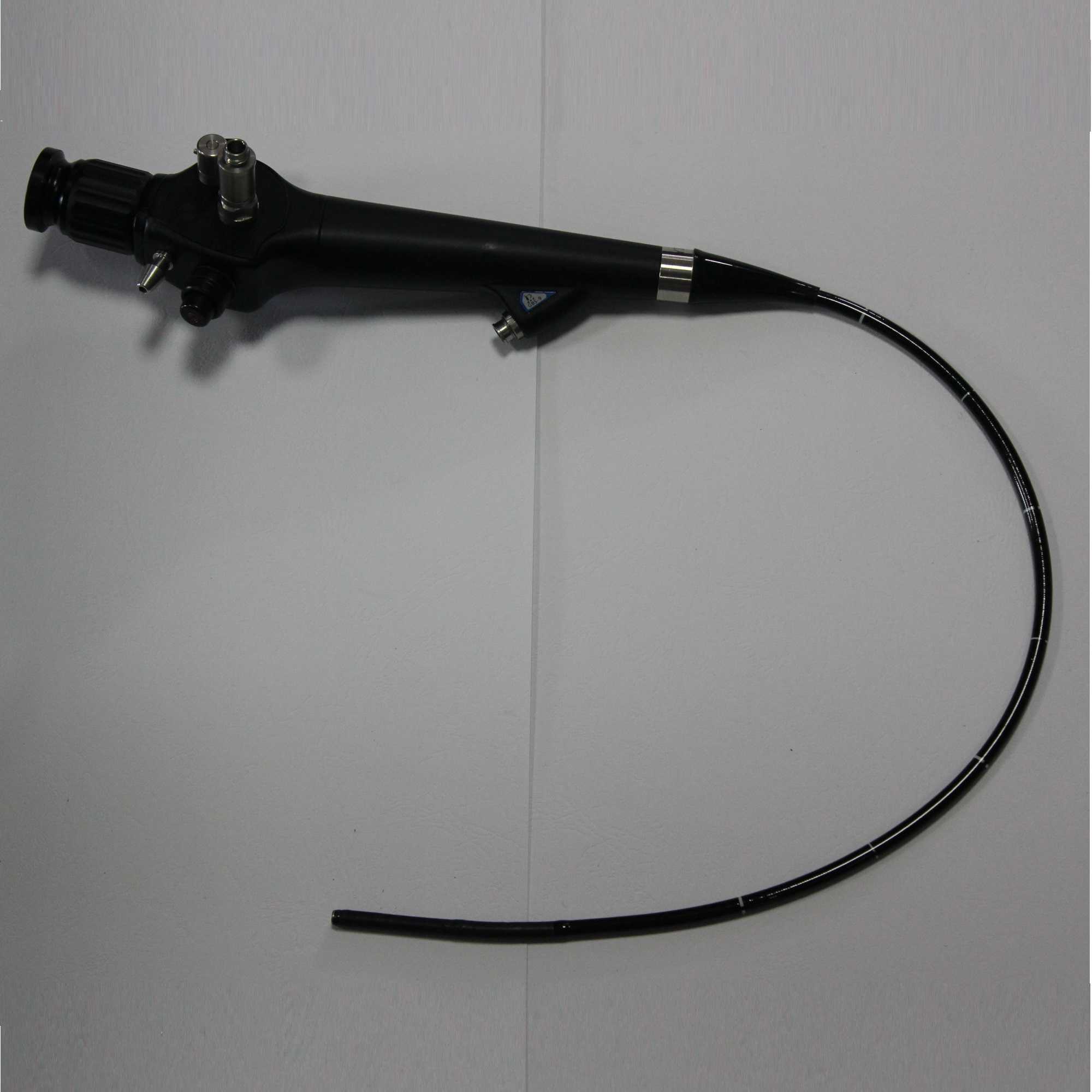

1.View of field :90°
2.Depth of field : 3-50mm
3.Range of bending : UP130°;Down90°
4.Working length : 410mm

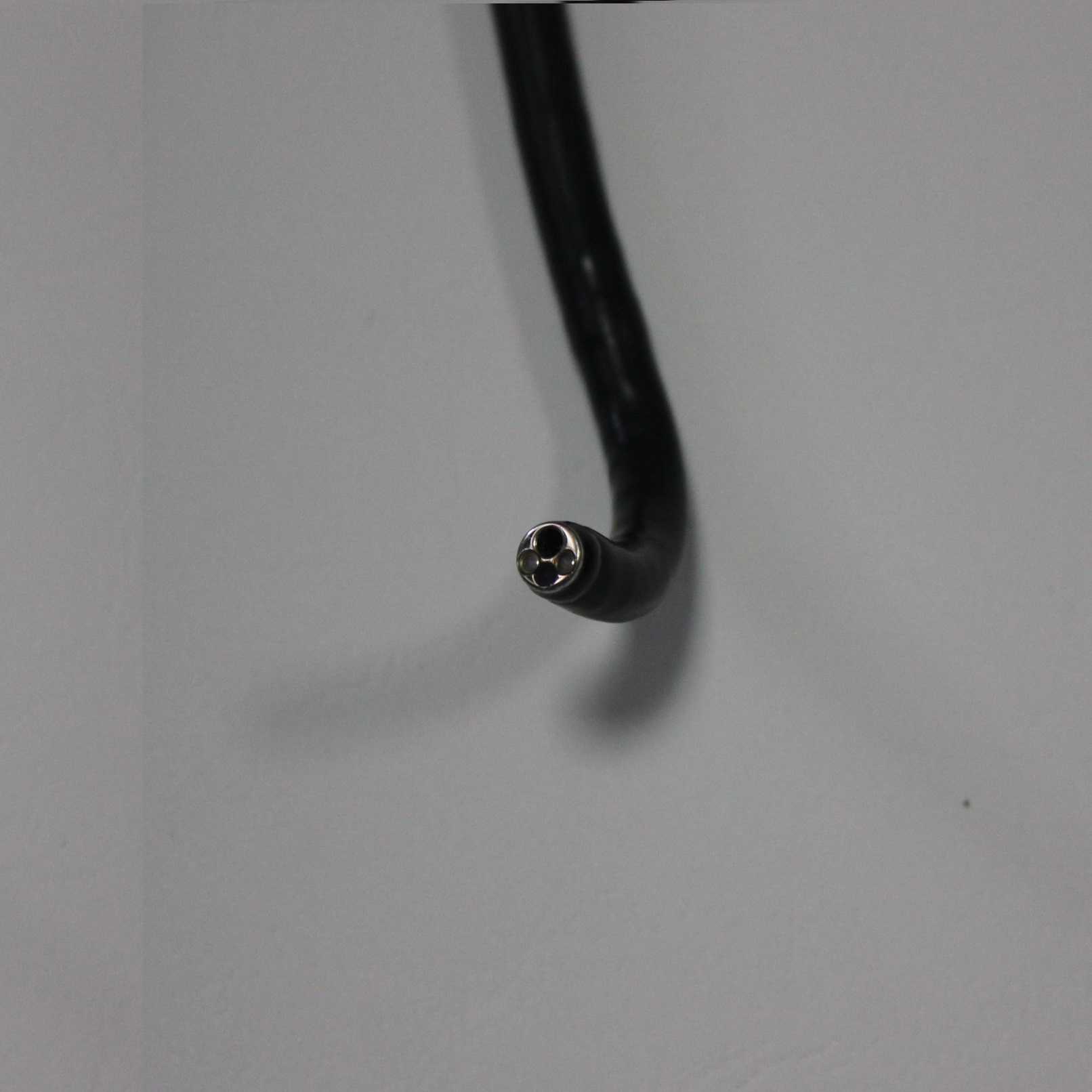

5.Diameter of distal end:5.0mm/5.5mm/3 8mm
6.Diameter of clamp aperture:2.2mm/1.0mm/NA

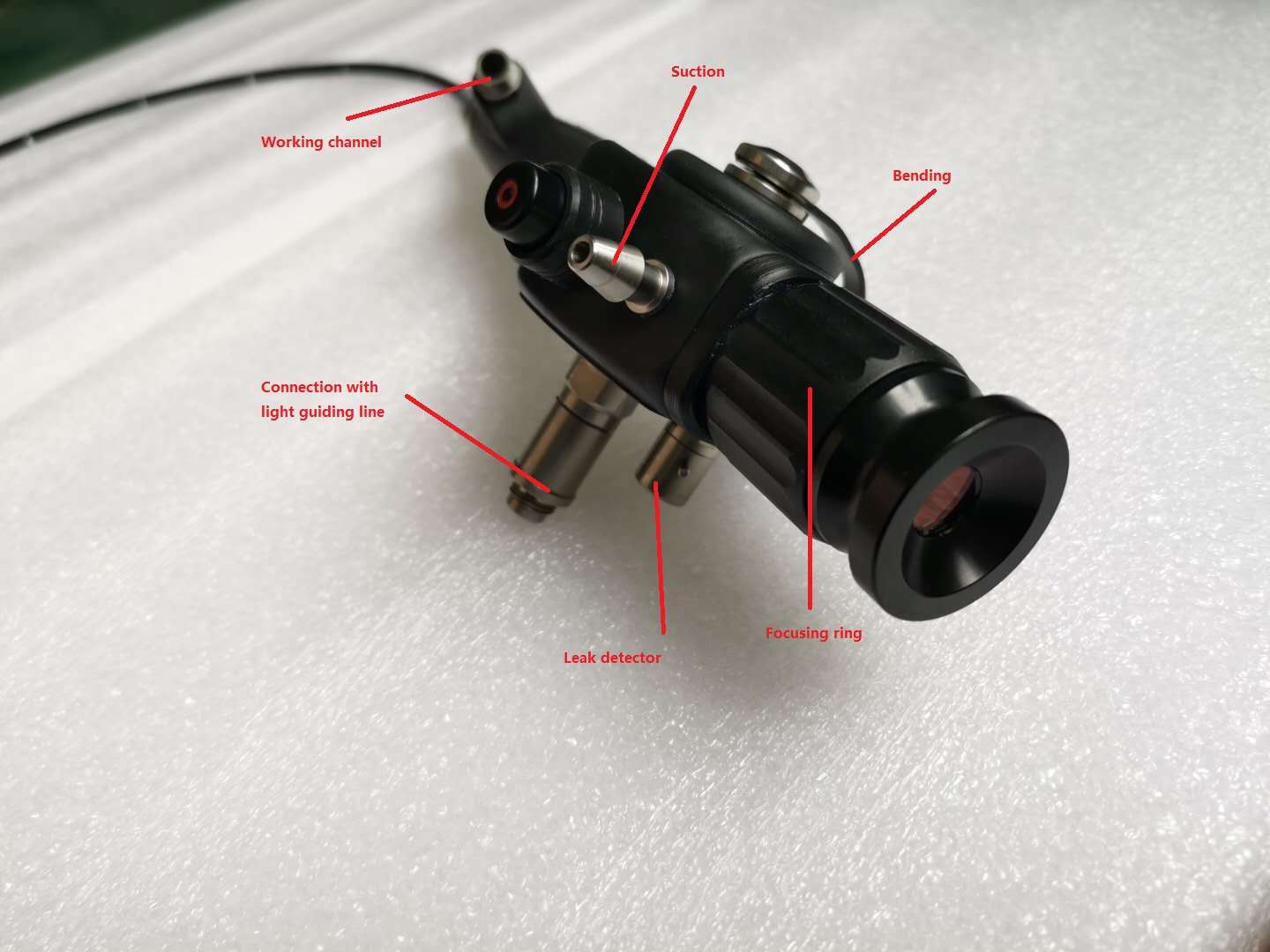

7. Bending operation: Traction chain structure, whole sealed waterproof
8.Image display : Two image display optional
9.Quality certification:CE
10.Warranty : One year(free), permanent repairs (not free)
11.Package size :64* 18*48cm (G.W.:5.0kgs)
1.View of field :90°
2.Depth of field : 3-50mm
3.Range of bending : UP130°;Down90°
4.Working length : 410mm
5.Diameter of distal end:5.0mm/5.5mm/3 8mm
6.Diameter of clamp aperture:2.2mm/1.0mm/NA
7. Bending operation: Traction chain structure, whole sealed waterproof
8.Image display : Two image display optional
9.Quality certification:CE
10.Warranty : One year(free), permanent repairs (not free)
11.Package size :64* 18*48cm (G.W.:5.0kgs)
Cold light source
1. Voltage: 220V-240V
2. Frequency: 50-60HZ
3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp
4. lumination: 70000LX (using special measuring tools)
5. Color Temperature: 3000~7000K
6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
7.Electric switch : AB light two sets light source
8.Main Function:
Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.
Built with micro axial fan cooling temperature.
Adopt dimming electronic control unit organization.
Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life,convenience to the operation
9.Package box:54*47*27.3cm (10.54kgs)
Camera System
1. Voltage: 220-240V
2. Frequency: 50-60HZ
3. System: PAL
4.Image regulation : Automatic regulate light, keep the image EMVat its best
5.video processor : DSP-Digital image processor with powerful multi-function , Brightness /
color / contrast adjustable 0- 100 level , Svideo / AV output.
6.Reverse function :Black and white reversed.
7.White balance : Auto white balance , manual white balance.
8.Manual white balance :Manual white balance can be calibrated color, color adjustable(Red, Blue).
9.Electronic shutter : 10 level electronic shutter adjustment.
10.Metering : Average metering, peak metering, metering area delineated.
11.Contour enhancement : 10-level contour enhancement.
12.Lens optional : Manual lens, automatic lens, video lens three optional.
13.Sharpness adjustment :0-30 sharp changes of the image in fine processing.
14.Digital WDR :Digital broadband function.
15.Backlight compensation : Improve the average brightness of the whole screen
16.Cama line :Cama line clarity 6 level adjustment.
17.R/L Mirroring: The left and right mirror position can be changing.
18.Package size :50.5*46* 20cm (G.W.:8.5kgs)
LCD Display
1. Display size: 15"
2. Power Supply: External Power Supply 12V
3. Resolution: 1024X768
4. Display Ratio: 4:3
5. Color: 16.7M
6. Camoration Brightness: 180士10 cd/m
7. Max.Brightness : 400 cd/m
8. Contrast Ratio: 700:1
9. Viewing Angle: 120/140 Response Time: 8ms
10.Package size : 44*36.5*16.5cm (G.W.:6.0kgs)
Equipment vehicles
1. Size : 500 * 700 *1350mm
2.Package size:118.5*63.5*22cm (G.W.:44.5kgs)
Cold light source
1. Voltage: 220V-240V
2. Frequency: 50-60HZ
3.lamp Power: 15V-150W environmentally friendly halogen tungsten lamp
4. lumination: 70000LX (using special measuring tools)
5. Color Temperature: 3000~7000K
6. Air Pump Pressure: 30-60kpa Air Flow: 4/L/min-10L/min (Quiet pump)
7.Electric switch : AB light two sets light source
8.Main Function:
Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation.
Built with micro axial fan cooling temperature.
Adopt dimming electronic control unit organization.
Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life,convenience to the operation
9.Package box:54*47*27.3cm (10.54kgs)
Camera System
1. Voltage: 220-240V
2. Frequency: 50-60HZ
3. System: PAL
4.Image regulation : Automatic regulate light, keep the image EMVat its best
5.video processor : DSP-Digital image processor with powerful multi-function , Brightness /
color / contrast adjustable 0- 100 level , Svideo / AV output.
6.Reverse function :Black and white reversed.
7.White balance : Auto white balance , manual white balance.
8.Manual white balance :Manual white balance can be calibrated color, color adjustable(Red, Blue).
9.Electronic shutter : 10 level electronic shutter adjustment.
10.Metering : Average metering, peak metering, metering area delineated.
11.Contour enhancement : 10-level contour enhancement.
12.Lens optional : Manual lens, automatic lens, video lens three optional.
13.Sharpness adjustment :0-30 sharp changes of the image in fine processing.
14.Digital WDR :Digital broadband function.
15.Backlight compensation : Improve the average brightness of the whole screen
16.Cama line :Cama line clarity 6 level adjustment.
17.R/L Mirroring: The left and right mirror position can be changing.
18.Package size :50.5*46* 20cm (G.W.:8.5kgs)
LCD Display
1. Display size: 15"
2. Power Supply: External Power Supply 12V
3. Resolution: 1024X768
4. Display Ratio: 4:3
5. Color: 16.7M
6. Camoration Brightness: 180士10 cd/m
7. Max.Brightness : 400 cd/m
8. Contrast Ratio: 700:1
9. Viewing Angle: 120/140 Response Time: 8ms
10.Package size : 44*36.5*16.5cm (G.W.:6.0kgs)
Equipment vehicles
1. Size : 500 * 700 *1350mm
2.Package size:118.5*63.5*22cm (G.W.:44.5kgs)
