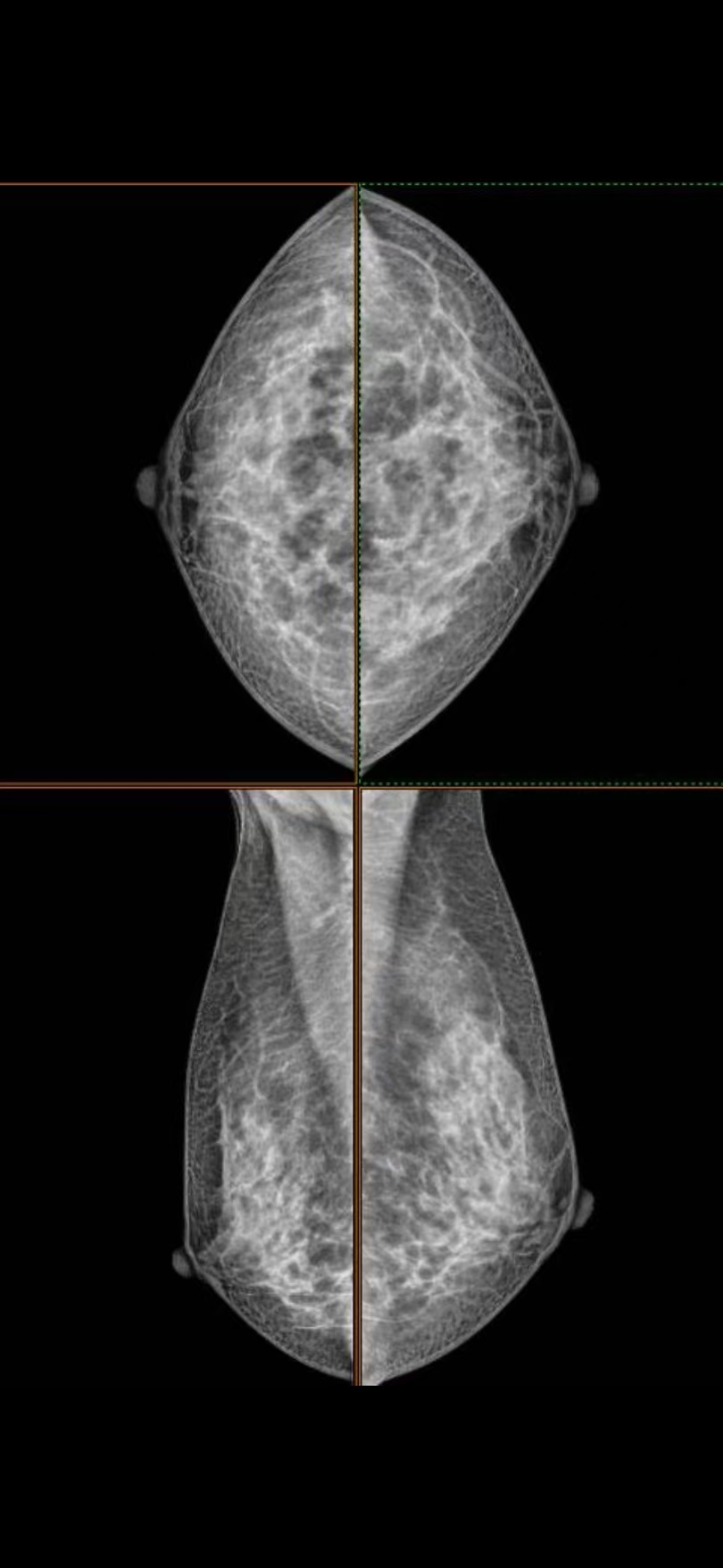

| Basic function | Application: it is specially used for human breast tissue photography to obtain tissue images for breast disease diagnosis and breast cancer screening; |

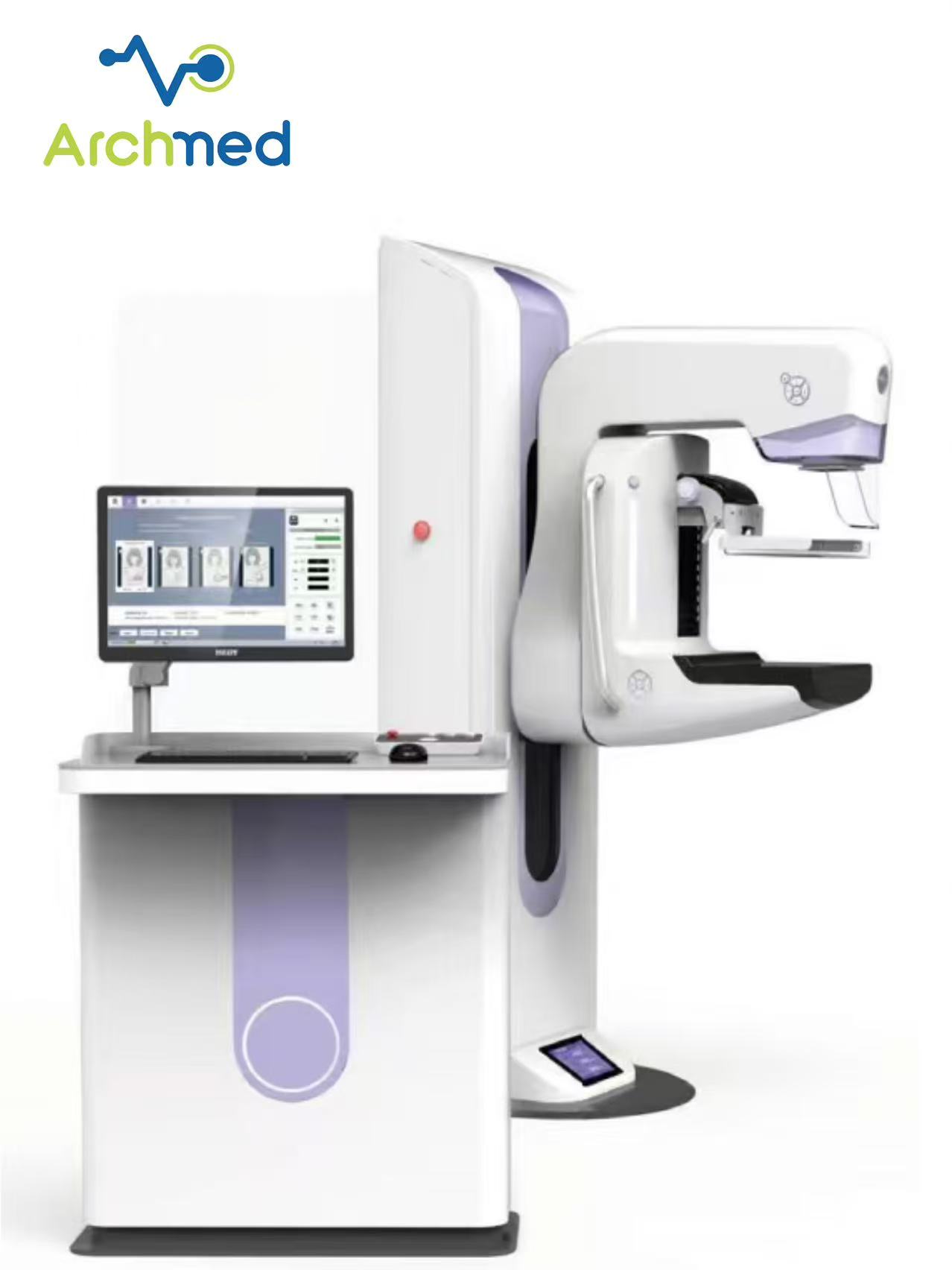

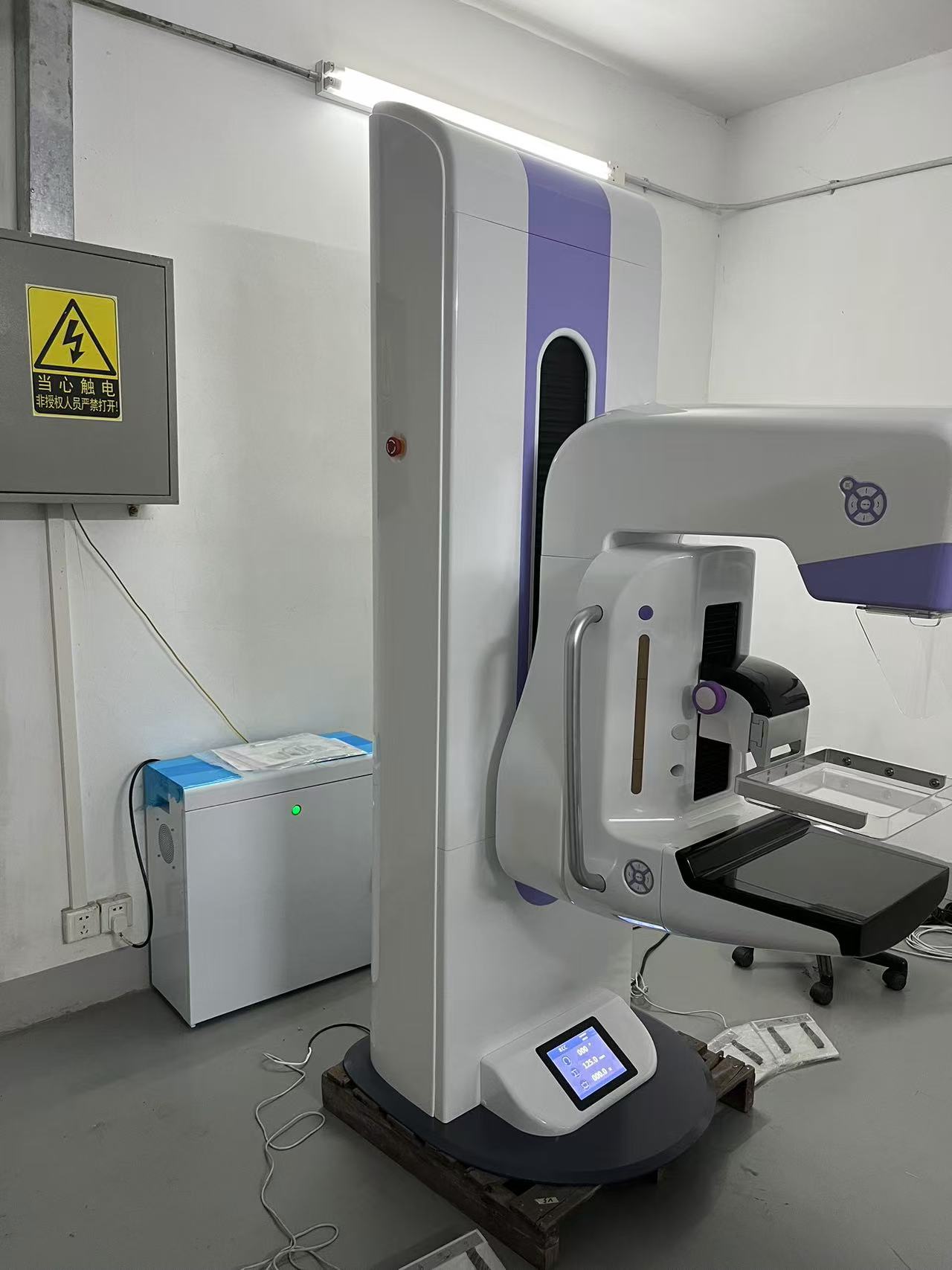

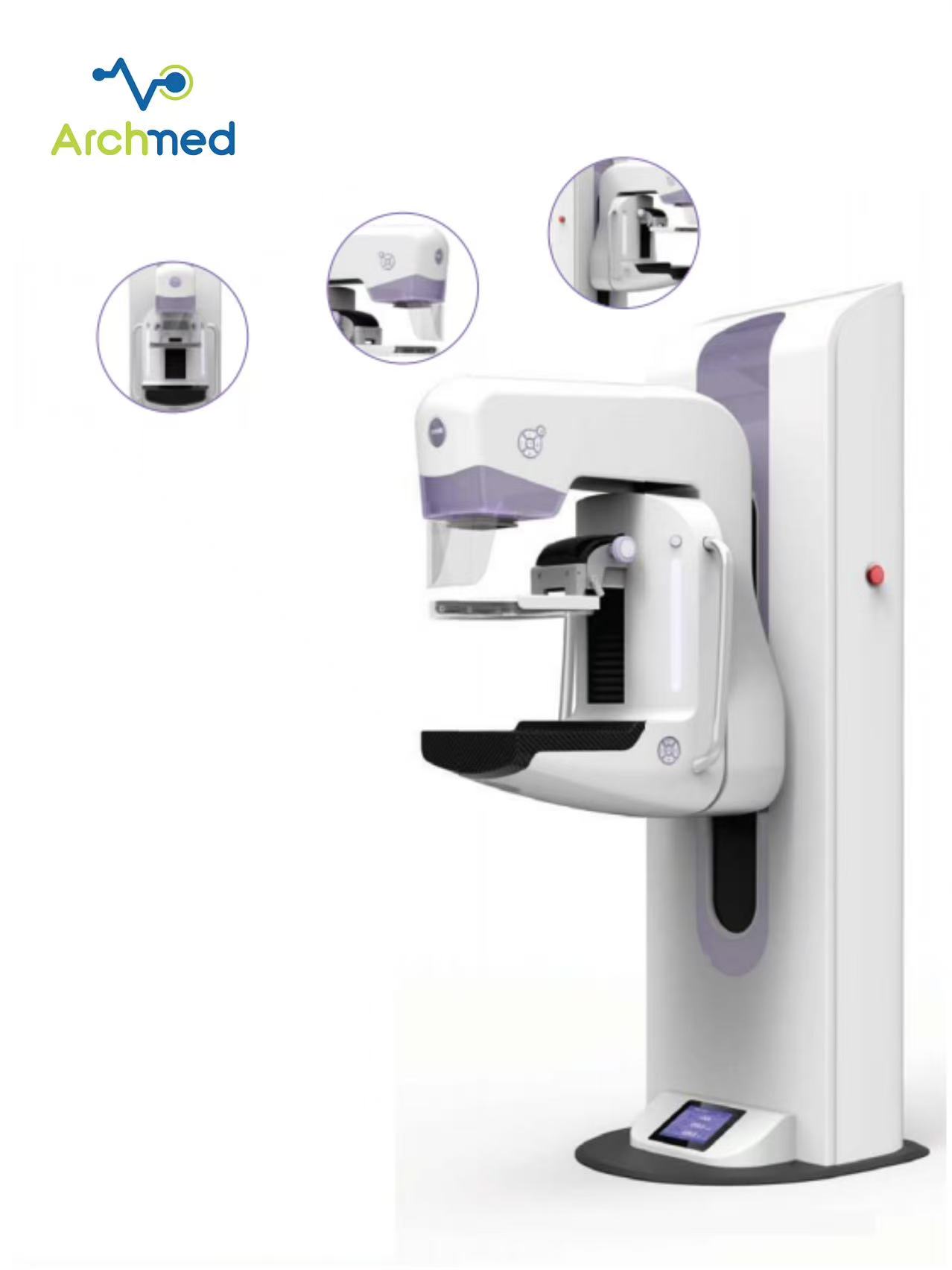

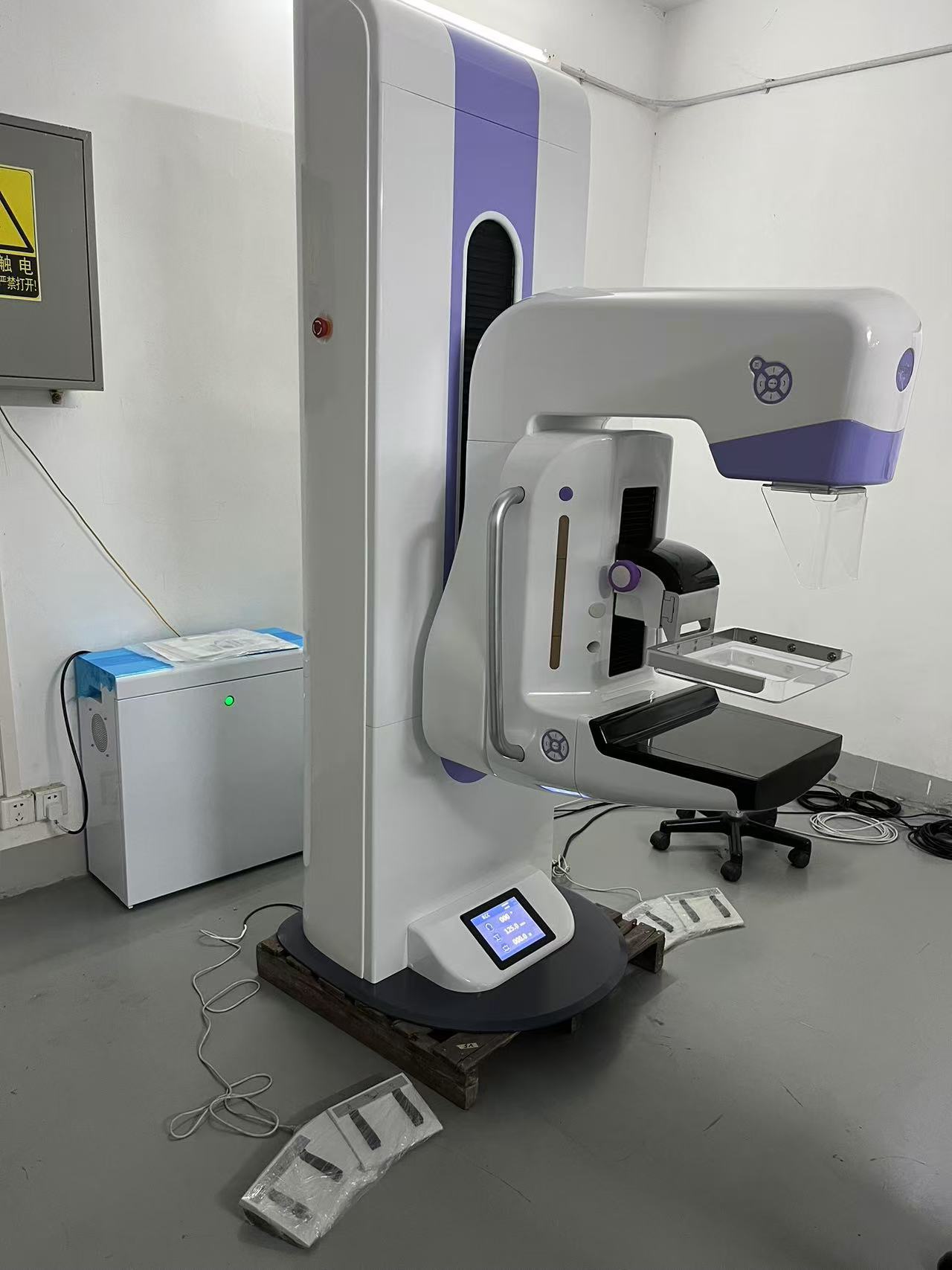

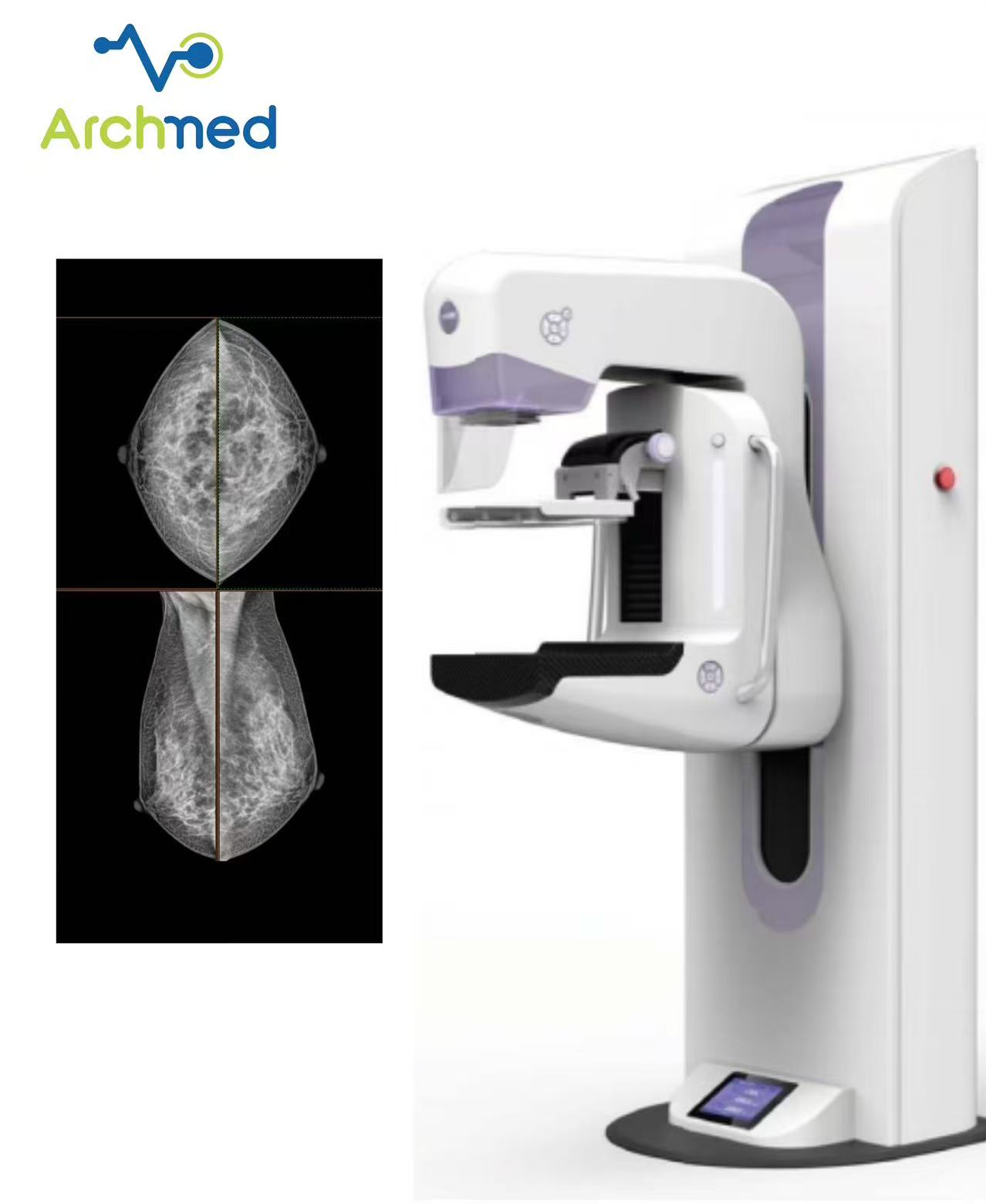

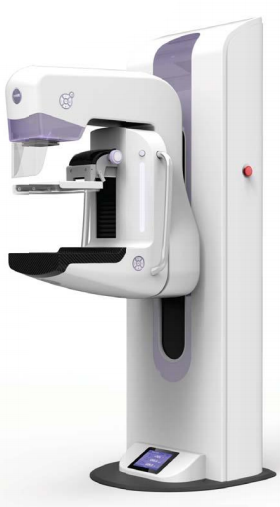

| Rack system | Frame structure: vertical C-arm type, |
| C-arm rotation range + 195 ° to - 155 ° |
| Vertical movement range ofC-arm: 630mm-1440mm |
| The C-arm can be locked at any position in the whole stroke |
The rack display screen can display the current position and position information to be photographed, and has the function of one key in place, which can switch the preset position
with one key |
| Distance between focus and image receiving surface (FID): 660mm |
| High voltage generator assembly (imported) | Maximum output power: 5KW |
| Output voltage range: 20-40kv |
| Output current range: 10ma-160ma |
| Loading time range: 0.005s-10s |
| Current time product regulation range: 0.5-560mas |
| With exposure control system, support one key exposure or hand brake exposure. |

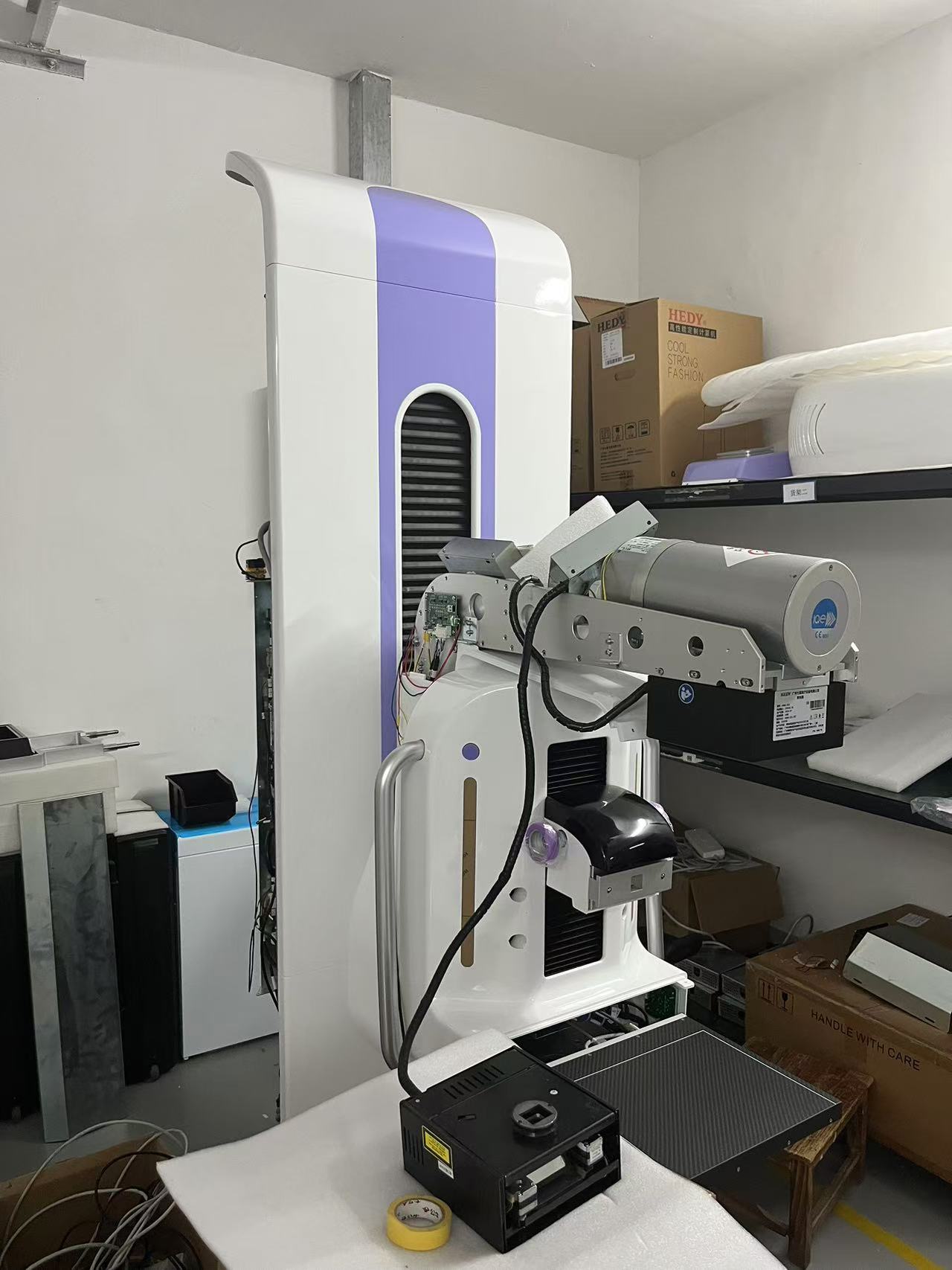

| X-ray tube assembly (imported) | Double speed rotating anode |
| Nominal tube voltage: 40kV |
| Anode heat capacity: 300KHU |
| Anode rotating speed: 10000 rpm |
| Anode material: Molybdenum |
| Nominal focus size: small focus 0.1mm, large focus 0.3mm |
| Flat panel detector Component | Imaging medium: amorphous silicon |
| Imaging size: 240mm × 300mm |
| Conventional spatial resolution: 7.0lp/mm |
| Pixel matrix: 2816×3584 |
| A / D conversion: 16 bits |
| Pixel size: 85 μm |
| Mammography compression device | The compression motion control is manual and electric, and the extrusion action can be released
at any time during the extrusion process. Occurring power failure, the pressure plate of the
compressor can release the pressure. |
Compression plate movement range: under the ordinary photographic platform, the movement
range is 245mm. Under the 1.5 times magnification photographic platform, the movement range
is 150mm, and under the 1.8 times magnification, the movement range is 75mm. |
| Compression plate pressure range: with electric drive: 150 ~ 200N; with manual drive: ≤ 300N; |
| Multifunctional image acquisition and processing integrated workstation | Professional medical display, 19 inch |
| Display resolution: 1280 × 1024 |
| Display contrast: 1000:1 |
| Workstation memory: 8g |
| Hard disk capacity: 1T |
| Workstation software function | Independently developed and produced by the manufacturer |
| Real-time monitor high-voltage generator and flat panel detector communication status |
| One-key switch function |
| Support diagnostic report writing with corresponding template; |
Support DICOM3.0 standard laser camera printing with optional configuration(film size,
typesetting) |
Support DICOM3.0 standard archiving service: archive image to server and automatically send
in the background. |
Compliant with DICOM3.0 standard (DICOM transmission, storage, printing), seamlessly
connect with RIS system |
Support manual input, barcode scanning for patient information, or attain directly from HIS/RIS
via DICOM Worklist |
| Case management: patient information, inspection information and image management |
Multiple display modes: image display layout, automatic / manual window width & window
level adjustment, positive and negative image display, step zoom or infinite zoom display |
Window width, window level and Gamma adjustment; multi-point LUT curve adjustment;
positive and negative film conversion; image scaling, mirroring, translating, rotating and
magnifying; image smoothing, sharpening, noise reduction, edge extraction, and tissue |
equalization; image annotation function including straight line drawing, rectangle and character,
original image display, full-screen display, histogram display, window width preset for different parts, real-time warning image capacity that can be stored in the system; |
| Digital photography function: configurable positive and negative image acquisition; real-time window width and window level adjustment; real-time ROI clipping, real-time horizontal and vertical mirroring and rotating to be selected according to different parts; Patient information,inspection information, device information and image information can be displayed; |
