Electrocardiograph 12 Leads Cheapest 3 Channel Portable Touch Screen Electrocardiogram Ecg Machine china

The ECG machine is such a kind of electrocar-
diograph, which samples 12 leads ECG signals
simultaneously and prints out the ECG wave-
forms with thermal printing system.
Availability:
Quantity:
  • COR-Y3

Electrocardiograph 12 Leads Cheapest 3 Channel Portable Touch Screen Electrocardiogram ECG Machine China

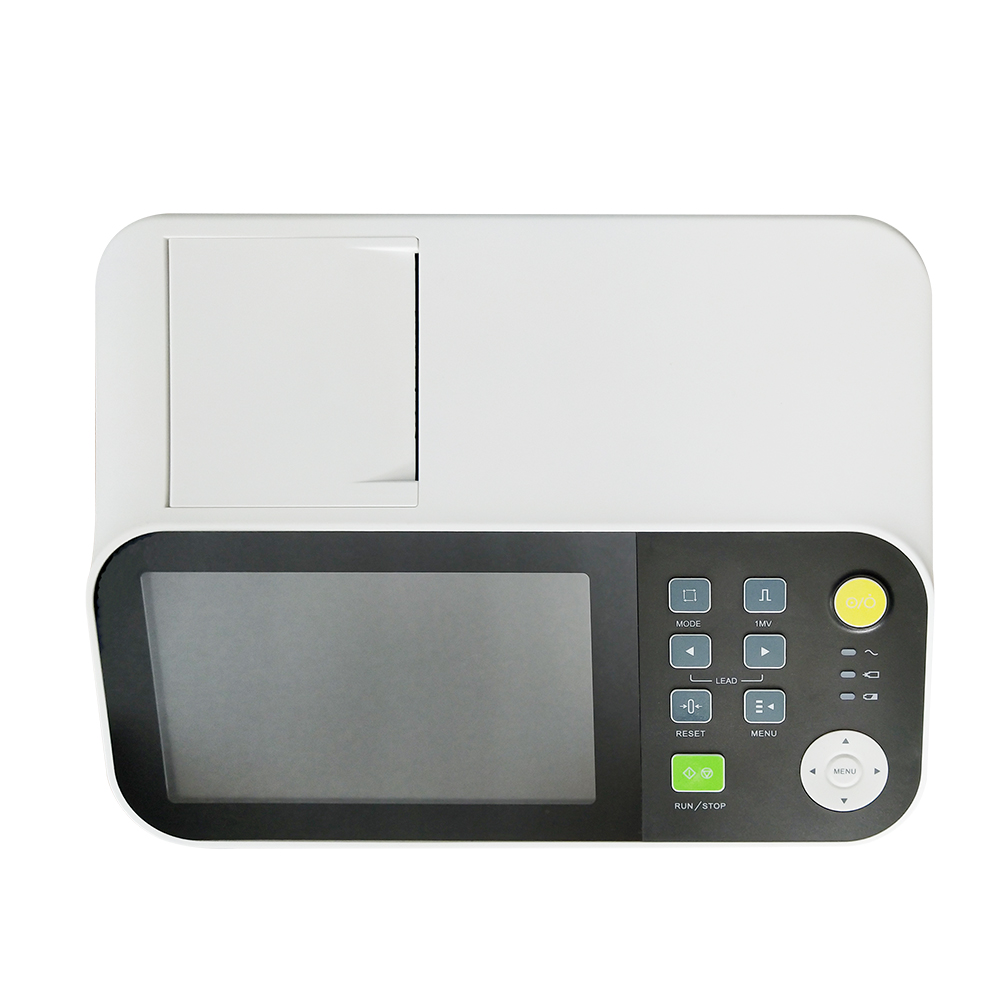

Model:COR-Y3

Hd6f3bdfe72a242c6a5f11a0dcad316e6S

Features
®  Modern in design, light in weight, compact in size.
®  Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.
®  7'' color screen, both push-button and touch operation(optional).
®  Sensitive filters of ADS, HUM, and EMG.
®  Automatic measurement, calculation, analysis, waveform freezing. Auto-analyze and auto-diagnostic can
   reduce doctor's burden and improve working efficiency.
®  Automatic adjustment of baseline for optimal recording.
®  Thermal printer with 80mm print paper, synchronization print.
®  Lead off  detection function.
®  Built-in rechargeable li-ion battery (12V/2000mAh), AC/DC power conversion.
®  Adapt to 100-240V, 50/60Hz AC power supply.
®  Historical data and patient's information can be reviewed and printed.
®  The machine can store over 500 ECG reports in its built-in flash.
®  USB communication interfaces (optional).
®  The device can record real time clear and exact 12 channel ECG waveform and remark continually. The remark
    includes: lead sign, sensitivity, paper speed, filter state, etc.


Functions are as follows: recording and display- ing ECG waveforms in auto/manual mode;
auto-measuring and auto-diagnosing the ECG wave parameters; save patient data into
machine, USB driver automatically(optional), prompting the state of lead off.
