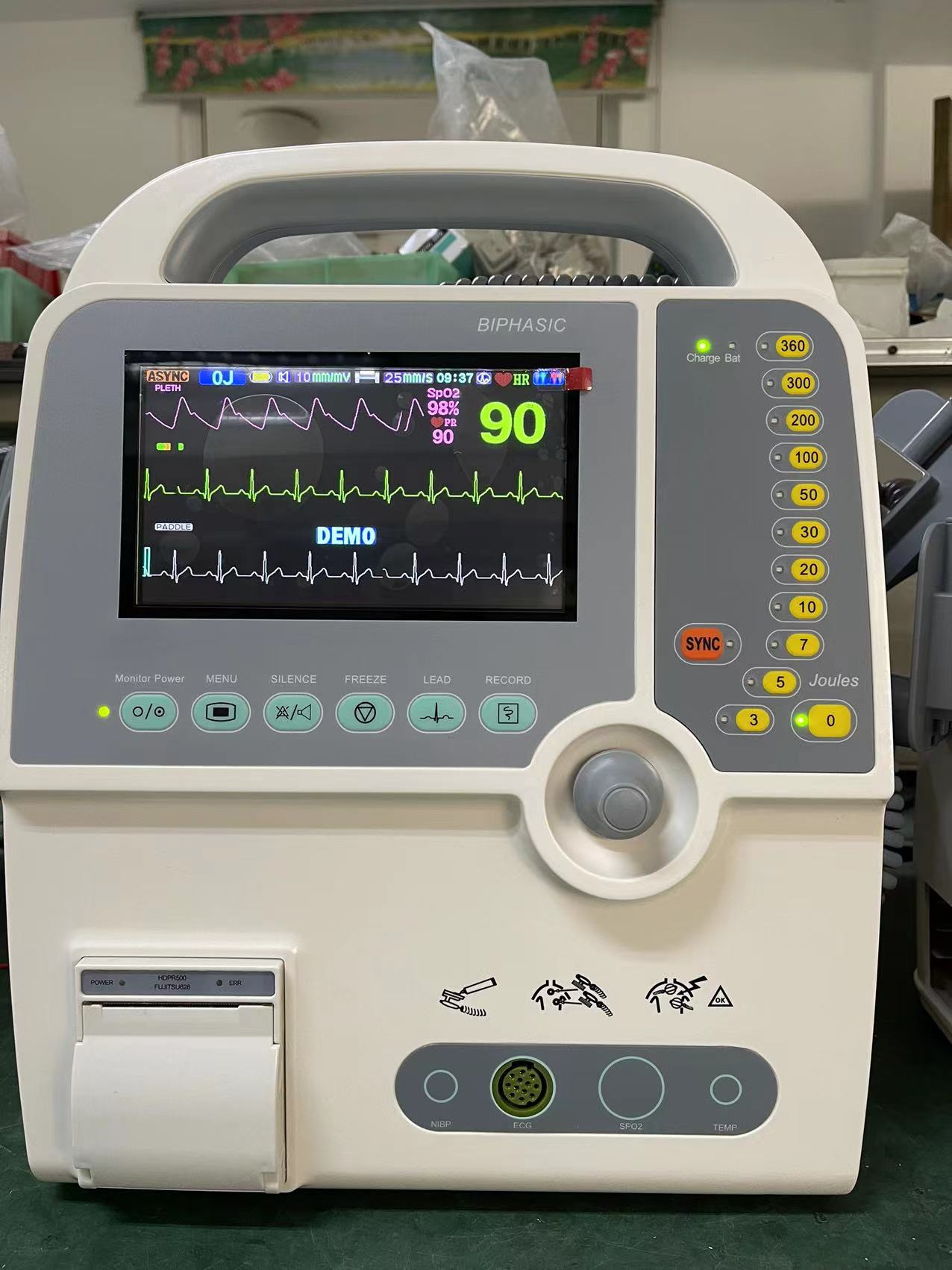

Display
Screen Type: High-resolution display, TFT colour display
Screen Size: 7 inches (17.7cm) diagonally
sweep Speed: 12.5/25/50mm/sec
Information: Heart Rate, Lead,Alarm On/Off, Delivered Energy
Resolution: 800×480
ECG
Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I,II,III,AVR,AVL,AVF,V.
ECG Size:2.5,5,10,20,30 mm/mV display on monitor.
Heart Rate: 20-350BPM.
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Defibrillator
Waveform: Biphasic
Defibrillator type: Manual External Synchronous/AsynchronousDefibrillation.
Charge Time: Less than 10 seconds to 360 Joules
Energy Display: Monitor display indicates both selected anddelivered energy.
Charge Prompt Type: Voice and visual prompts.
Energy Selection: Selectable at 0,3,5,7,10,20,30,50,100,200,300,360 joules

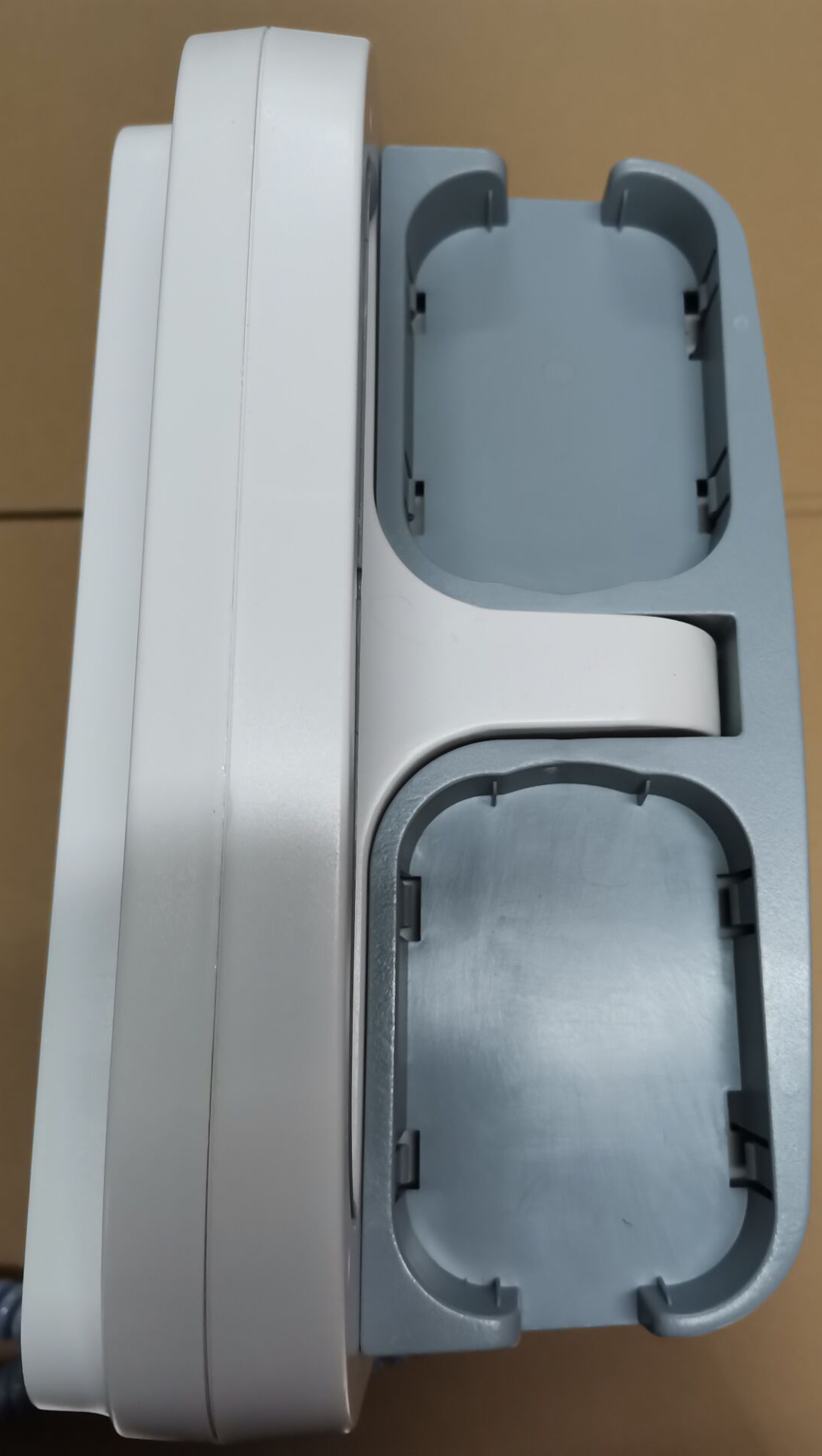

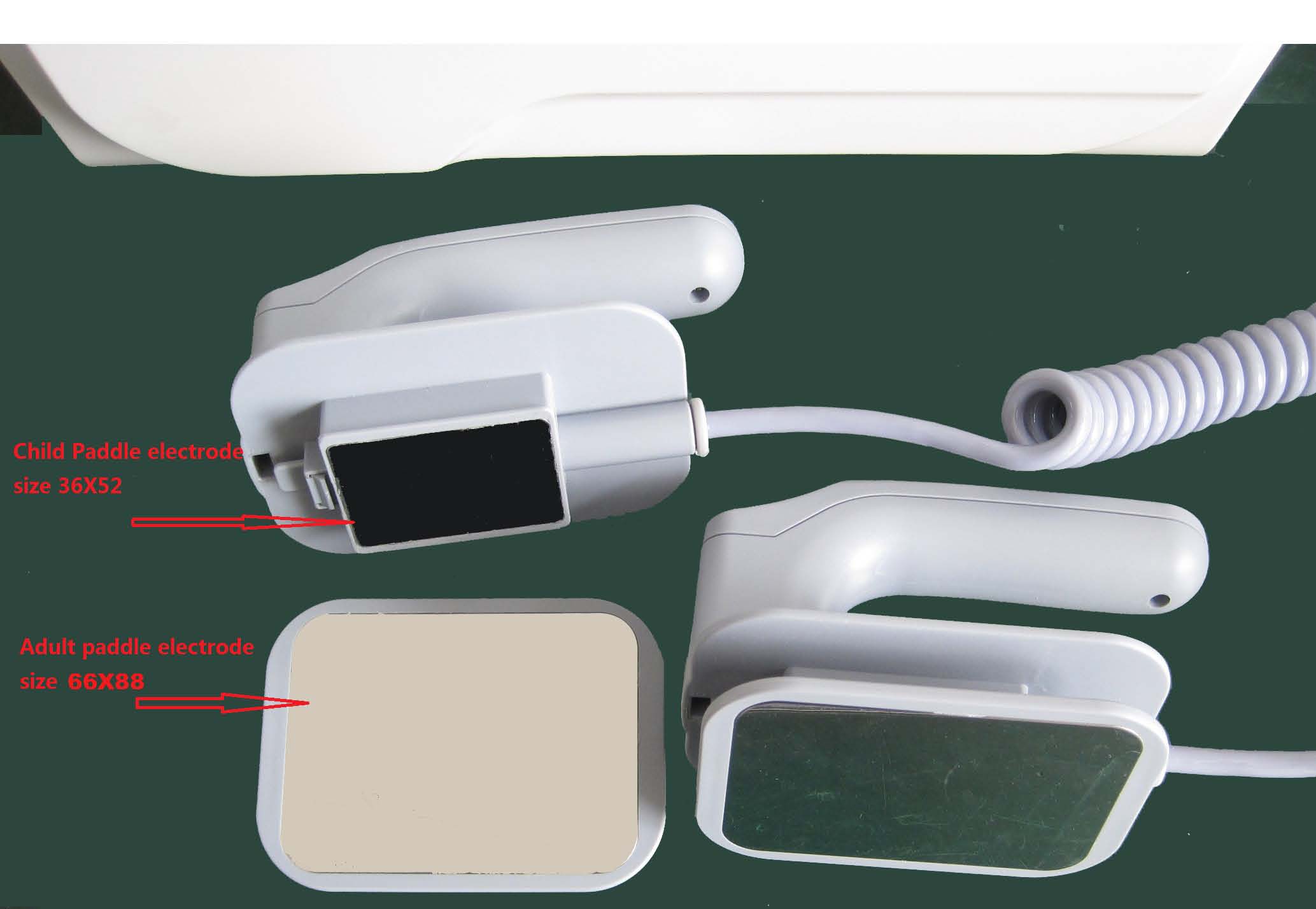

Standard Adult/Pediatric Paddles: Reusable external adultpaddles (pediatric paddles integrated)

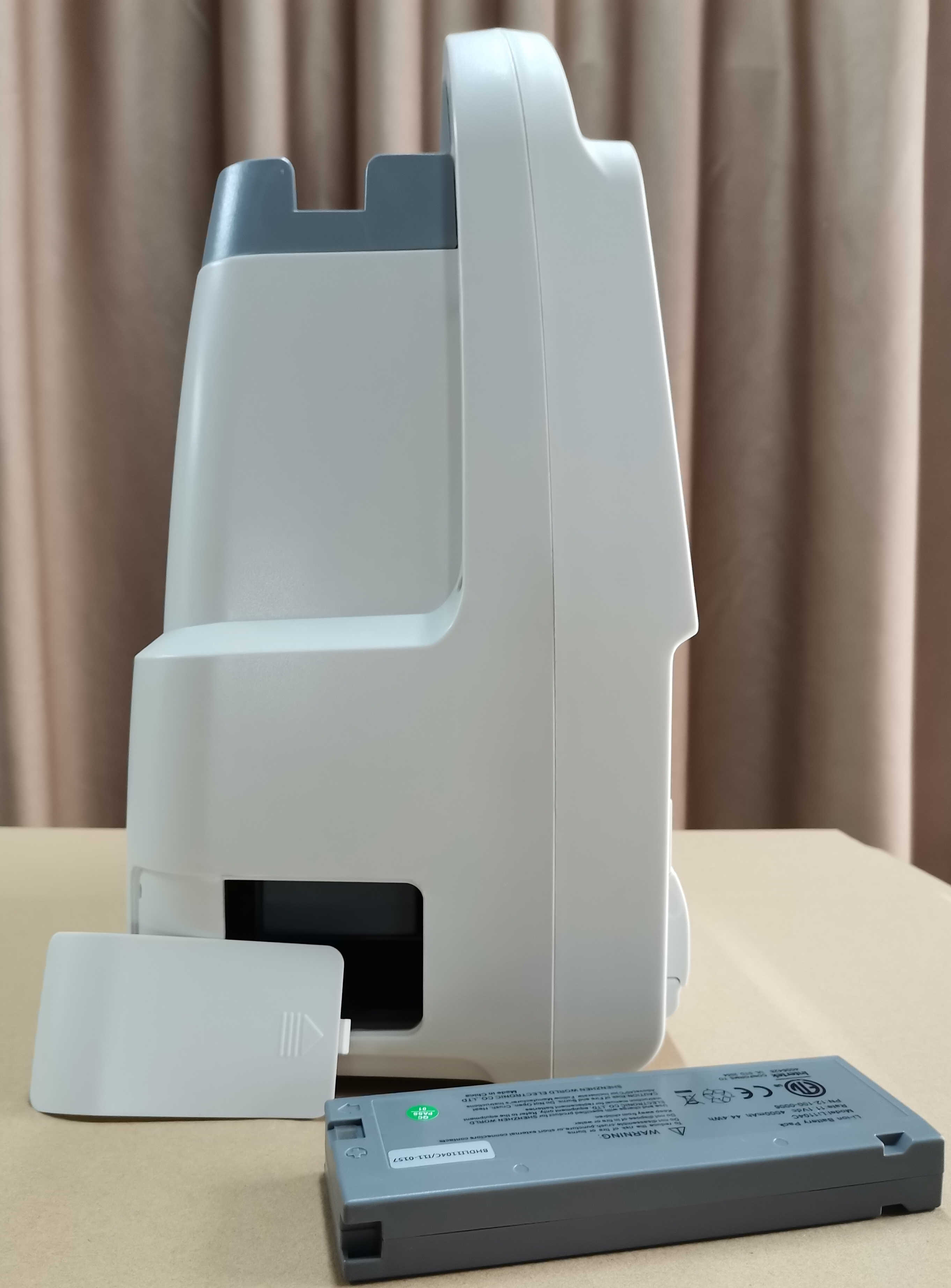

Battery Description
Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAhX2
Standard Capacity: Up to 10 hours ECG monitoring or 60full-energy discharges.
Low Battery lndicator: Flashing low battery icon ondisplay and Bat Indicator on the panel of defi-monitor be on
Recharge Rate:80% in 3 hours.100% in 5 hours.
Built-in Recorder
Paper: 50mm thermal.
Printing Method:High-resolution, thermal print head.
Record date,time ,sweep speed, waveform gain, heartrate, energy (joule) and ECG waveform
Print mode:
HR exceed limits alarm recording
Auto timed recording
Real-Time Recording
Defibrillation discharge trigger recording
Power
AC-DC dual-use: Use the batteries,AC100V~240V,50/60 Hz.
Vehicle Voltage(Option): DC 12V
Main unit
Portable
Dimensions:L320xW205xH410
Weight:7.5kg
Display
Screen Type: High-resolution display, TFT colour display
Screen Size: 7 inches (17.7cm) diagonally
sweep Speed: 12.5/25/50mm/sec
Information: Heart Rate, Lead,Alarm On/Off, Delivered Energy
Resolution: 800×480
ECG
Patient Connection: 3-lead ECG cable, or 5-lead ECG cable, paddles.
Lead Selection: Displayed on monitor, paddles, I,II,III,AVR,AVL,AVF,V.
ECG Size:2.5,5,10,20,30 mm/mV display on monitor.
Heart Rate: 20-350BPM.
Protection: With stand 4000vAc/50Hz voltage in isolation and work against electrosurgical knife and defibrillation
Defibrillator
Waveform: Biphasic
Defibrillator type: Manual External Synchronous/AsynchronousDefibrillation.
Charge Time: Less than 10 seconds to 360 Joules
Energy Display: Monitor display indicates both selected anddelivered energy.
Charge Prompt Type: Voice and visual prompts.
Energy Selection: Selectable at 0,3,5,7,10,20,30,50,100,200,300,360 joules
Standard Adult/Pediatric Paddles: Reusable external adultpaddles (pediatric paddles integrated)
Battery Description
Standard Type: Li-ion battery Li1104c 11.1Vdc 4000mAhX2
Standard Capacity: Up to 10 hours ECG monitoring or 60full-energy discharges.
Low Battery lndicator: Flashing low battery icon ondisplay and Bat Indicator on the panel of defi-monitor be on
Recharge Rate:80% in 3 hours.100% in 5 hours.
Built-in Recorder
Paper: 50mm thermal.
Printing Method:High-resolution, thermal print head.
Record date,time ,sweep speed, waveform gain, heartrate, energy (joule) and ECG waveform
Print mode:
HR exceed limits alarm recording
Auto timed recording
Real-Time Recording
Defibrillation discharge trigger recording
Power
AC-DC dual-use: Use the batteries,AC100V~240V,50/60 Hz.
Vehicle Voltage(Option): DC 12V
Main unit
Portable
Dimensions:L320xW205xH410
Weight:7.5kg
Pulse Oximeter(Optional)
Display: Spo2 value,waveform, Pulse
Probe: Standard adult finger clip
Range: 0-99% for adult, pediatric and neonatal patients
AED (Optional)
Voice prompts and screen prompts.
Energy Programmable Sequence:
200,300,360 Joules;
150,150,200 Joules;
50,75,100 Joules;
30,30,50 Joules;
Discharge Control: Control on device front panel.
Pulse Oximeter(Optional)
Display: Spo2 value,waveform, Pulse
Probe: Standard adult finger clip
Range: 0-99% for adult, pediatric and neonatal patients
AED (Optional)
Voice prompts and screen prompts.
Energy Programmable Sequence:
200,300,360 Joules;
150,150,200 Joules;
50,75,100 Joules;
30,30,50 Joules;
Discharge Control: Control on device front panel.
