Blood and Infusion Warmer F12B

Blood and lnfusion Warmer is to warm the blood or fluid and to relieve the patient' shyperthermia; it is widely used before operation, during operation and after operationand ICU, NICu, Pediatric Dept, Emergency Dept., and outpatient Dept.,for heating bloodor infusion.Small design, direct display and simple operation makes it user friendly.
Availability:
Quantity:

1.Multiple Temperature Control Protection Technology:Hardware and software temperature control protection toensure the effective and safe heating.

2.Medical Heating Silicone Heating Profile:The heating profilemakes the heat reach the patient directly and effectively.

3.Different Kinds Heating Profiles: lV tubes with diameter 3.5,5,7mm connection to heating profile 60 90,100,120,140cmoptional.

4.Dry Heating: Dry flow process, easy installation, fast heating.

5.Display: Display the preset temp, heating temp, time, alarmmassage, working status.


Temperature Setting
°C: 32℃~42.0°C;°F:95.0°F~107.6°F
Temperature Deviation
°C:≤±1℃
°F:≤±1.8°F
Temperature Increment
°C:0.1℃
°F:0.2F
Optional Unit
°C
°F
Warming up time
≤4min
Overheat Protection
50±5℃
hardware and software protection
Alarm
Overheat
low temperature
system error
over time
warming up alarm
Blood/Iv Sets
Standard single use PVC blood/IV tubes
( diameter: 3.5-7mm)
Display
72x72mm
Heating Way
Dry silicone heating profile
Mute time
2mins
Heating Profiles
lV tubes with diameter 3.5-7mm connectionto heating profile 60
90
100
120
140cm optional
Heating Time
00h00min~99h59min
Operation Environment
Temp.:+5*C-+30"C; Relative Humidity: 20%-93% ;
Atmosphere:70.0kPa-106.0kPa
Transportation and Storage Environment
Temp:-20°℃-+55°C
Relative Humidity: 10%-95%
Atmosphere:50.0kPa-106.0kPa
Degree of Protection against Ingress of Liquids
IPX4
Degree of Protectionagainst Electric Shock
Class ll
Type CF
Working Mode
Continous heating
Dimension
155x110x170mm
Weight Net Weight
1.2kg( 1pc 120cm heating profile included)
Power Supply
Input:100-240V(AC Power),
50/60HZ
Power Consumption
80VA

Click to Play

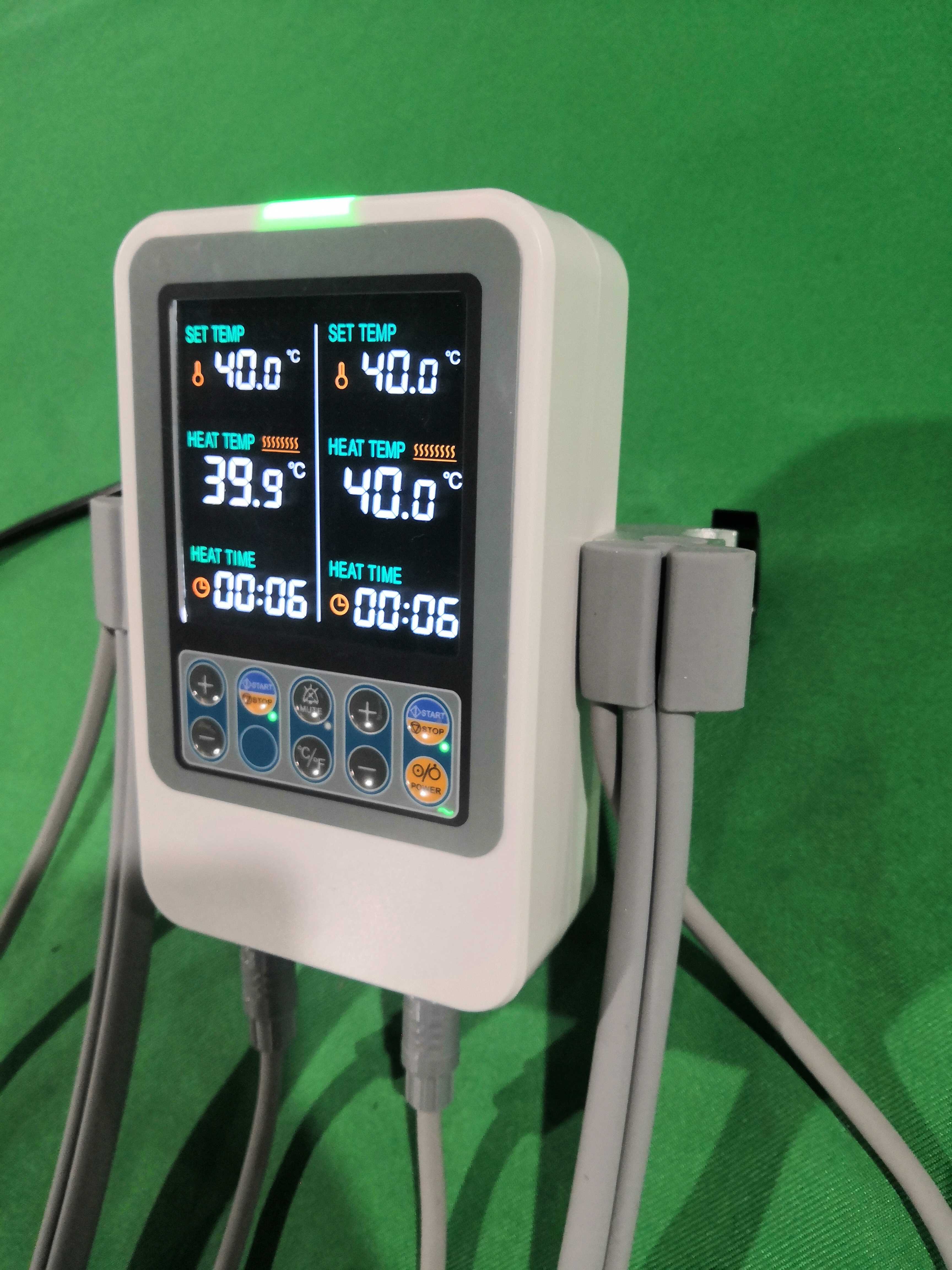

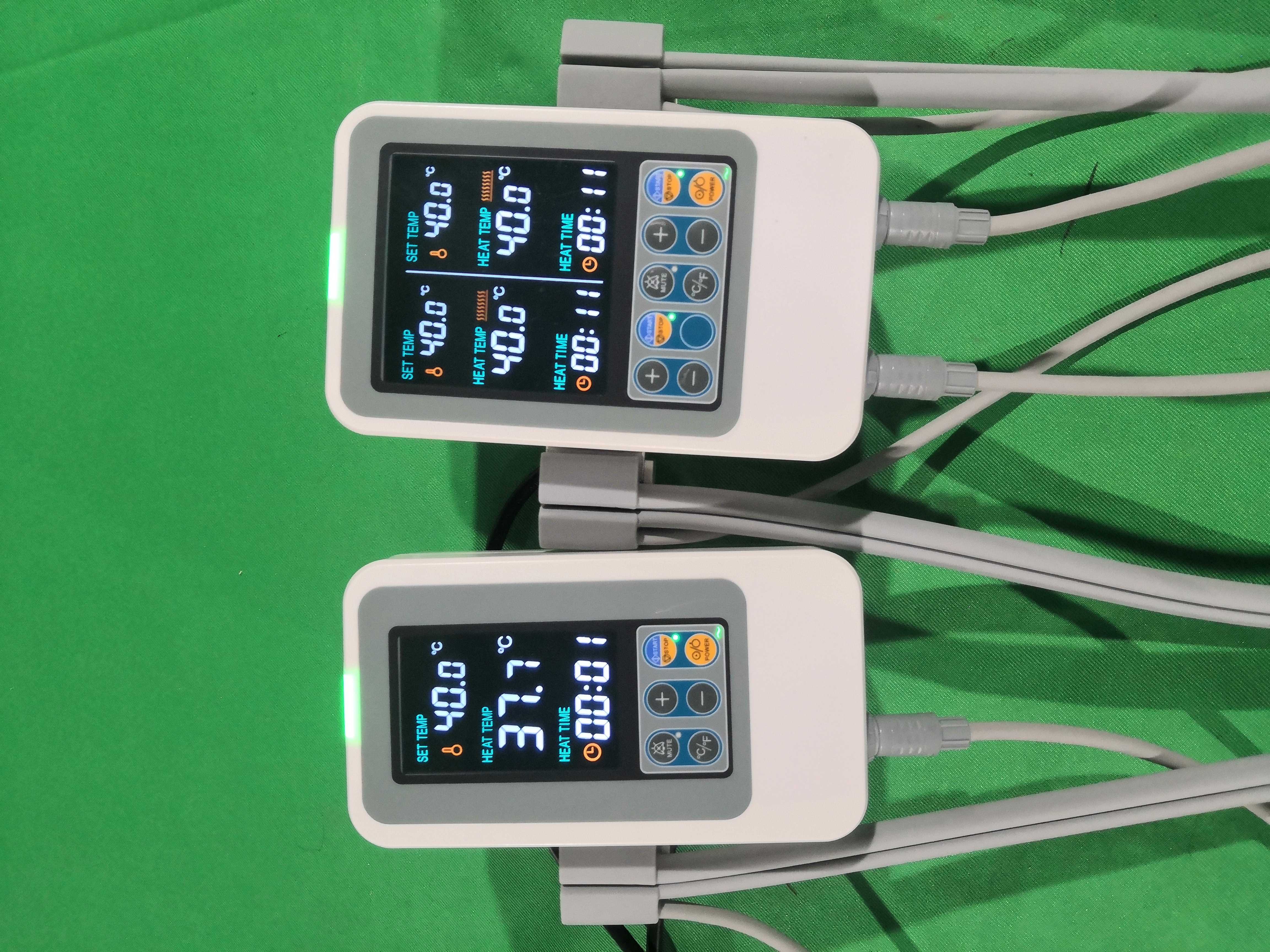

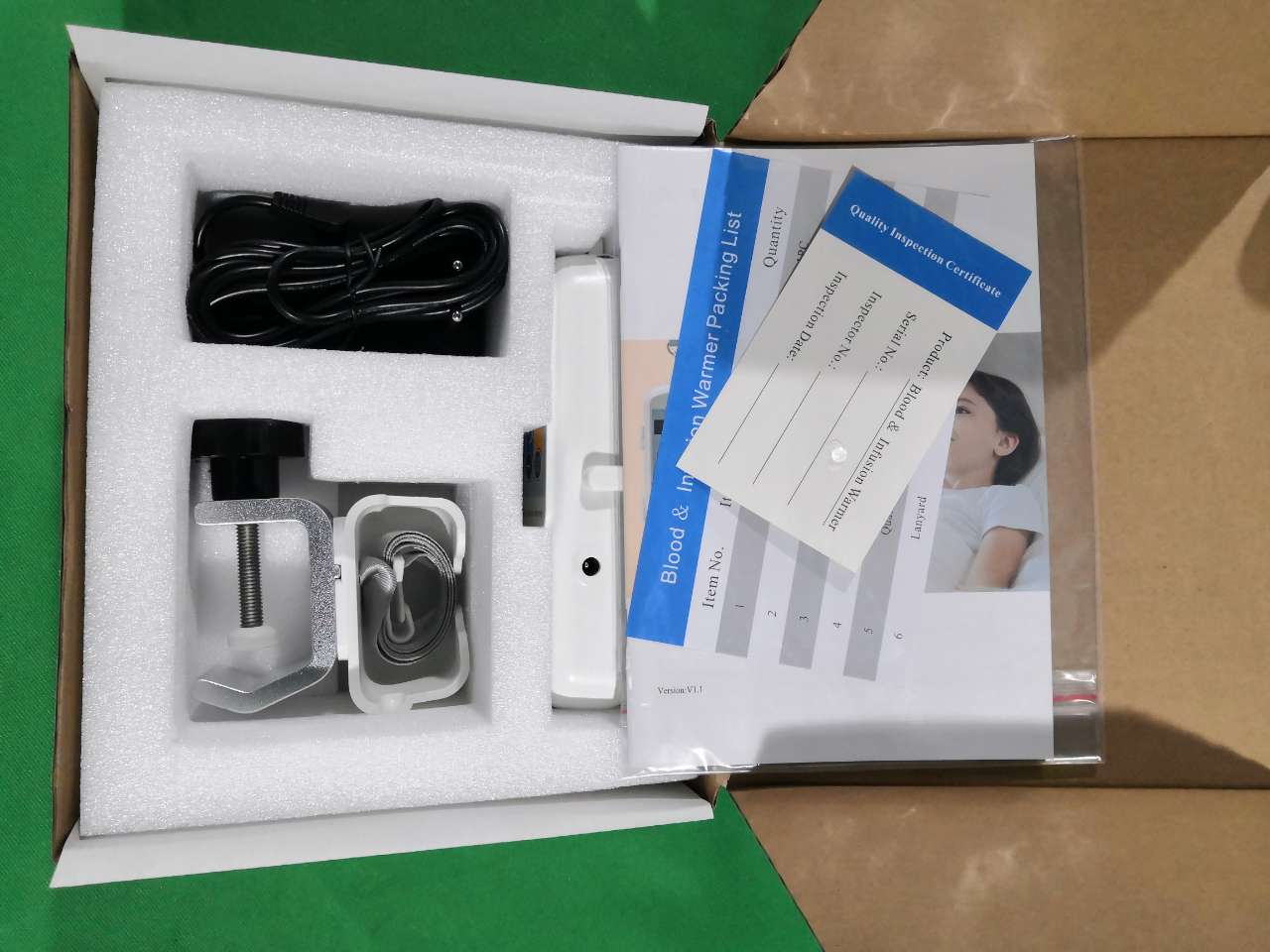

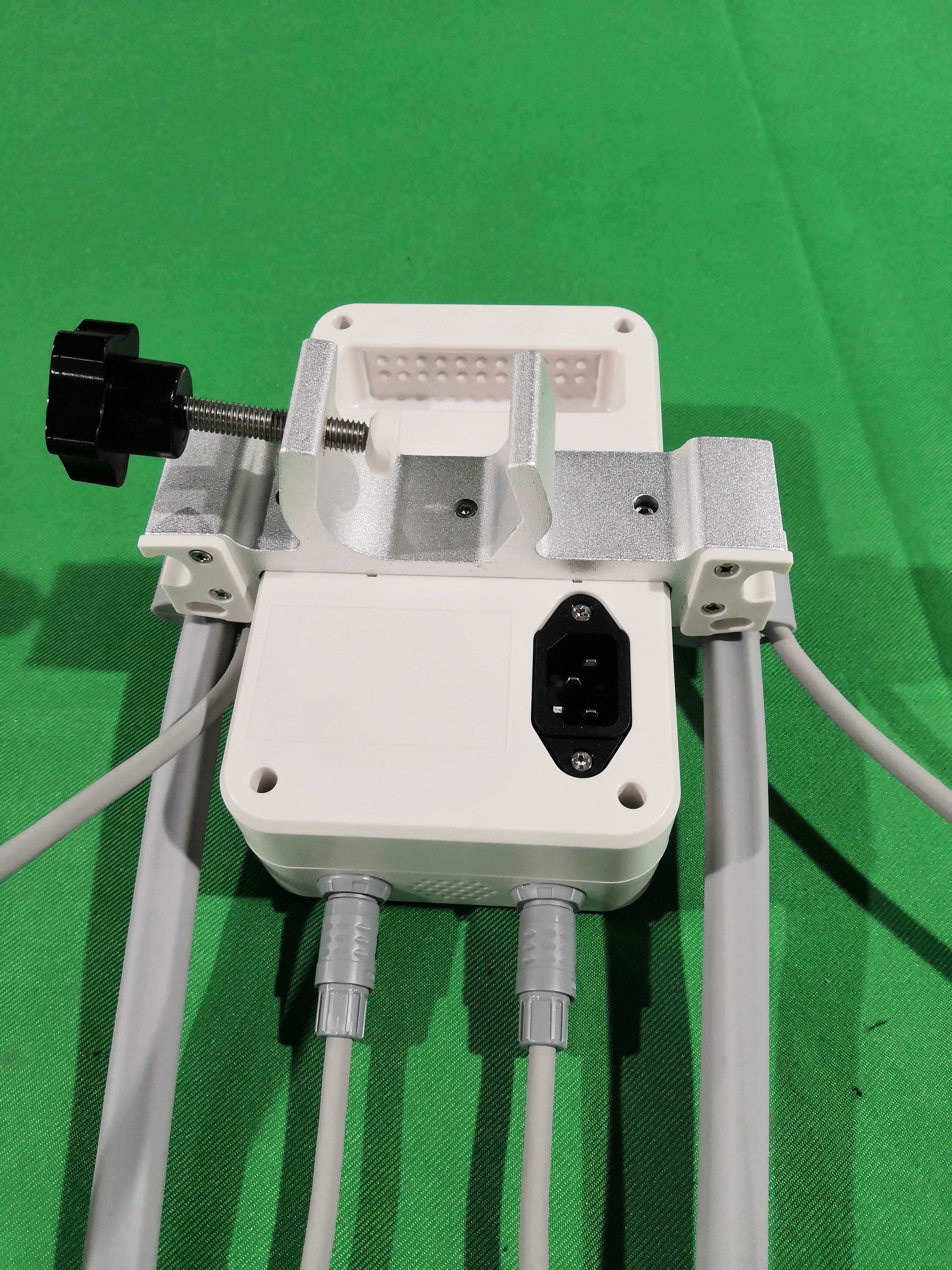

F12B 实物图 (1)F12B 实物图 (2)_proF12B 实物图 (3)_proF12B 实物图 (4)_pro
