1.Multiple Temperature Control Protection Technology:Hardwareand software temperature control protection to ensure theeffective and safe heating.
2.Medical Heating Silicone Heating Profile:The heating profilemakes the heat reach the patient directly and effectively.
3.Different Kinds Heating Profiles: lV tubes with diameter 3.5，5,7mm connection to heating profile 60,90,100,120,140cm optional.
4.Dry Heating: Dry flow process, easy installation, fast heating.

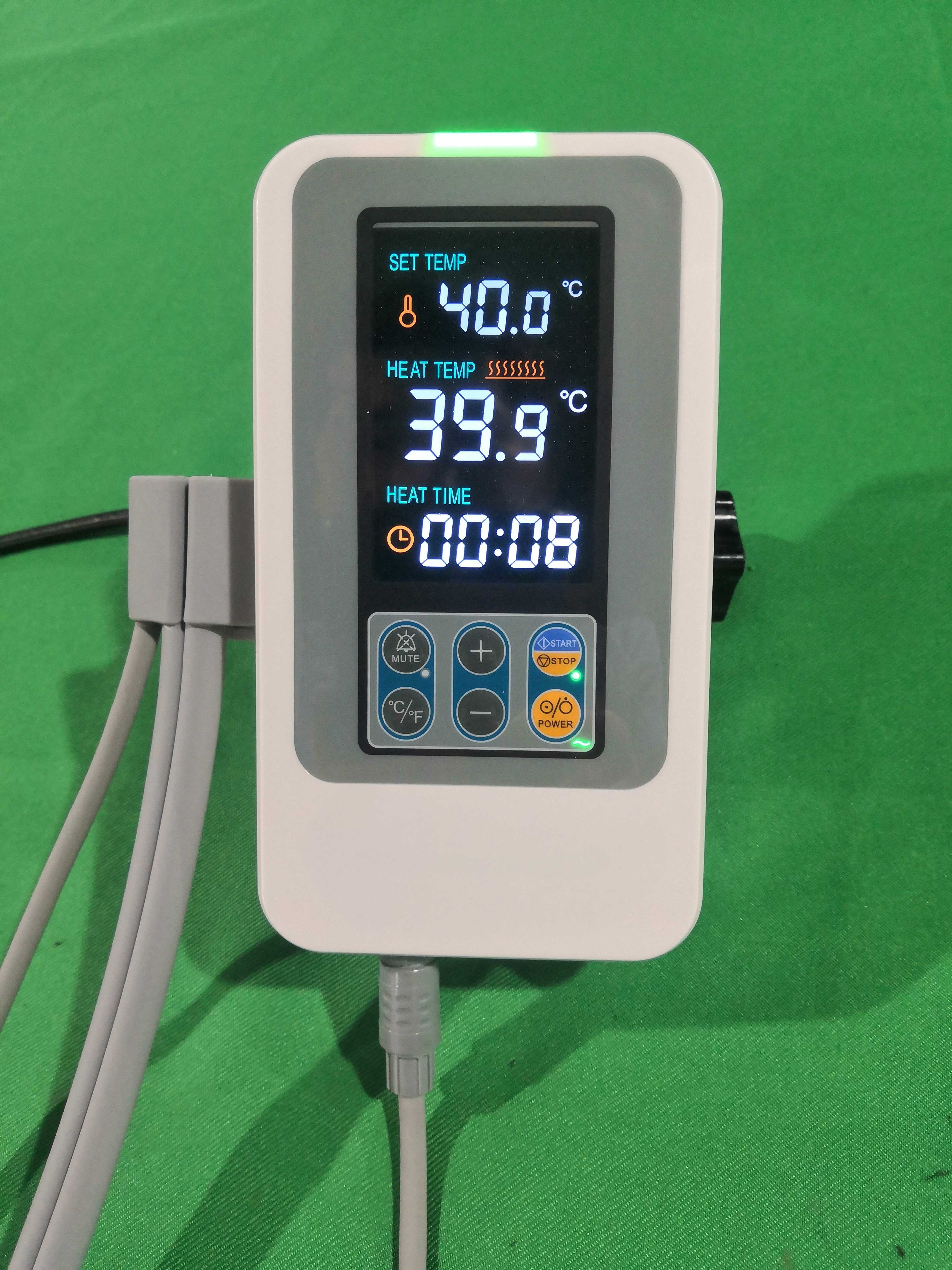

5.Display: Display the preset temp,heating temp,time,alarmmassage, working status.
1.Multiple Temperature Control Protection Technology:Hardwareand software temperature control protection to ensure theeffective and safe heating.
2.Medical Heating Silicone Heating Profile:The heating profilemakes the heat reach the patient directly and effectively.
3.Different Kinds Heating Profiles: lV tubes with diameter 3.5，5,7mm connection to heating profile 60,90,100,120,140cm optional.
4.Dry Heating: Dry flow process, easy installation, fast heating.
5.Display: Display the preset temp,heating temp,time,alarmmassage, working status.
Temperature Setting
°C: 32℃~42.0°C;°F:95.0°F~107.6°F
Overheat Protection
50±5℃
hardware and software protection
Alarm
Overheat
low temperature
system error
over time
warming up alarm
Blood/Iv Sets
Standard single use PVC blood/IV tubes
( diameter: 3.5-7mm)
Heating Way
Dry silicone heating profile
Heating Profiles
lV tubes with diameter 3.5-7mm connectionto heating profile 60
90
100
120
140cm optional
Operation Environment
Temp.:+5*C-+30"C; Relative Humidity: 20%-93% ;
Atmosphere:70.0kPa-106.0kPa
Transportation and Storage Environment
Temp:-20°℃-+55°C
Relative Humidity: 10%-95%
Atmosphere:50.0kPa-106.0kPa
Degree of Protection against Ingress of Liquids
Degree of Protectionagainst Electric Shock
Weight Net Weight
0.86kg( 1pc 120cm heating profile included)
Power Supply
Input:100-240V(AC Power)，
50/60HZ
{"type":"2","json":[{"index":"0","tran_label":"Temperature Setting","tran_value":["°C: 32℃~42.0°C;°F:95.0°F~107.6°F"]},{"index":"1","tran_value":["°C:≤±1℃","°F:≤±1.8°F"],"tran_label":"Temperature Deviation"},{"index":"2","tran_label":"Temperature Increment","tran_value":["°C:0.1℃","°F:0.2F"]},{"index":"3","tran_label":"Optional Unit","tran_value":["°C","°F"]},{"index":"4","tran_label":"Warming up time","tran_value":["≤4min"]},{"index":"5","tran_label":"Overheat Protection","tran_value":["50±5℃","hardware and software protection"]},{"index":"6","tran_label":"Alarm","tran_value":["Overheat","low temperature","system error","over time","warming up alarm"]},{"index":"7","tran_label":"Blood/Iv Sets","tran_value":["Standard single use PVC blood/IV tubes","( diameter: 3.5-7mm)"]},{"index":"8","tran_label":"Display","tran_value":["72x72mm"]},{"index":"9","tran_label":"Heating Way","tran_value":["Dry silicone heating profile"]},{"index":"10","tran_label":"Mute time","tran_value":["2mins"]},{"index":"20","tran_label":"Heating Profiles","tran_value":["lV tubes with diameter 3.5-7mm connectionto heating profile 60","90","100","120","140cm optional"]},{"index":"21","tran_label":"Heating Time","tran_value":["00h00min~99h59min"]},{"index":"13","tran_label":"Operation Environment","tran_value":["Temp.:+5*C-+30\"C; Relative Humidity: 20%-93% ;","Atmosphere:70.0kPa-106.0kPa"]},{"index":"14","tran_label":"Transportation and Storage Environment","tran_value":["Temp:-20°℃-+55°C","Relative Humidity: 10%-95%","Atmosphere:50.0kPa-106.0kPa"]},{"index":"15","tran_label":"Degree of Protection against Ingress of Liquids","tran_value":["IPX4"]},{"index":"16","tran_label":"Degree of Protectionagainst Electric Shock","tran_value":["Class ll","Type CF"]},{"index":"17","tran_label":"Working Mode","tran_value":["Continous heating"]},{"index":"18","tran_label":"Dimension","tran_value":["140x110x170mm"]},{"index":"19","tran_label":"Weight Net Weight","tran_value":["0.86kg( 1pc 120cm heating profile included)"]},{"index":"11","tran_label":"Power Supply","tran_value":["Input:100-240V(AC Power)，","50/60HZ"]},{"index":"12","tran_label":"Power Consumption","tran_value":["60VA"]}]}
