Blood and lnfusion Warmer is to warm the blood or fluid and to relieve the patient' shyperthermia; it is widely used before operation, during operation and after operationand ICU, NICu, Pediatric Dept, Emergency Dept., and outpatient Dept.,for heating bloodor infusion.Small design, direct display and simple operation makes it user friendly.
1. Exquisite workmanship:small design,0.2kg weight, more installation way optional
2. Multiple Temperature Control Protection Technology: Hardware and softwaretemperature control protection to ensure the effective and safe heating
3. 2 mins Fast Heating: Fast heating to transfer the heat to the patient

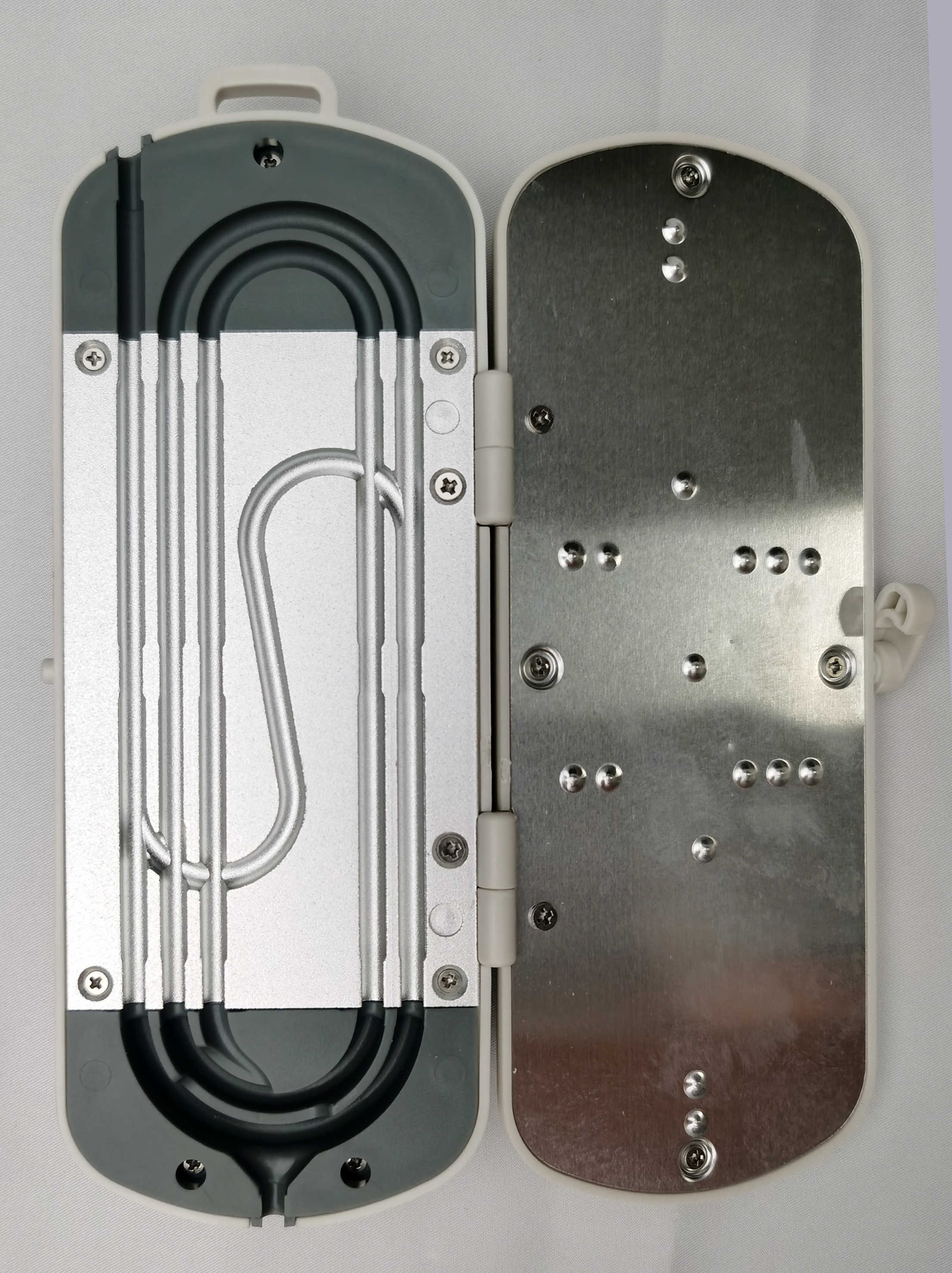

4. Three Heating Groove: Long, middle , short groove to meet different needs
5.High Accuracy: Deviation is within土1°℃
1. Exquisite workmanship:small design,0.2kg weight, more installation way optional
2. Multiple Temperature Control Protection Technology: Hardware and softwaretemperature control protection to ensure the effective and safe heating
3. 2 mins Fast Heating: Fast heating to transfer the heat to the patient
4. Three Heating Groove: Long, middle , short groove to meet different needs
5.High Accuracy: Deviation is within土1°℃
Temperature Setting
°C: 32℃~42.0°C;°F:95.0°F~107.6°F
Temperature Deviation
°C:≤±1℃
°F:≤±1.8°F
Temperature Increment
°C:0.1℃
°F:0.2F
Optional Unit
°C
°F
Warming up time
≤2min
Overheat Protection
46℃
hardware and software protection
Alarm
Overheat
low temperature
system error
over time
warming up alarm
Blood/Iv Sets
Standard single use PVC blood/IV tubes
( diameter: 3.4-4.5mm)
Display
LED
Heating Way
Long
Middle
short grooves
lnstallation Way
lV Knob
Hanger optional
Power Supply
Input:100-240V(AC Power)，
50/60HZ
0.3-0.7A
Output: 12v(DC Power)2.5A
Power Consumption
85VA
Operation Environment
Temp.:+5*C-+30"C; Relative Humidity: 20%-80% ;
Atmosphere:76.0kPa-106.0kPa
Transportation and Storage Environment
Temp:-20°℃-+55°C
Relative Humidity: 10%-93%
Atmosphere:50.0kPa-106.0kPa
Degree of Protection against Ingress of Liquids
IPX1
Degree of Protectionagainst Electric Shock
Class ll
Type CF
Working Mode
Continous heating
Dimension
180x70x35mm
Weight Net Weight
0.2kg ; With Knob:0.4kg
