Main specification:
| Power output | 5.0KW |
| Inverter frequency | 30KHz |
| X-ray Tube | Fixed anode |
| Focus | 1.5mm |
| Thermal capacity | 600KJ |
| Tube voltage | 40～120KV(interval 1KV) |
| mA Range | 25-100mA |
| mAs | 1～200mAs(47 steps) |
| Power supply | 220V/50Hz, or 220V/60Hz, or 110V/60Hz |
Radiography specification setting:

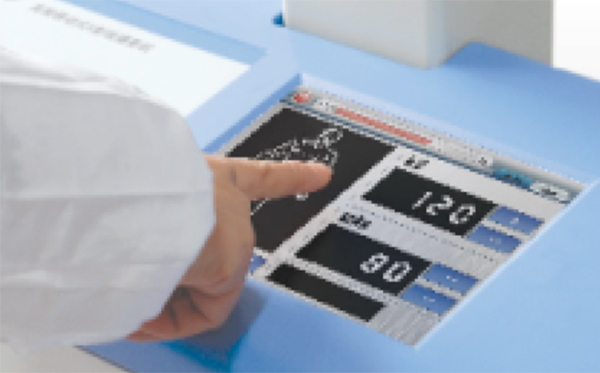

8” touch-screen. Choose the parts of body to finish KV & mAs value setting, or separately adjust KV & mAs value.
Image work station:

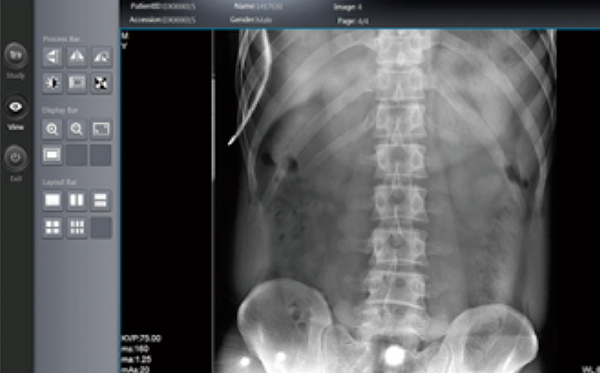

Small portable laptop built in x-ray system, including software, which conclude DICOM connector to PACS system, which can get image and transfer image to medical display, can do printing and edition on that.
Exposure control method:
Wire control(hand control device) & wireless control(remote control device, microwave type, in 20m)
Modular High-Voltage Generator:
High Frequency and high-voltage generator, KV, mAs closed loop control, steady output; Real-time control by microprocessor, guarantee the accuracy and repeatability of exposure.
Wheel:
Select the imported large-size wheel, being quite during moving, portable. Even in narrow space, it also can move steadily and rapidly.
Flat Panel Detector:
China No.1 Brand I-ray Wireless Flat Panel Detector Mars 1717V assure the high quality digital image.
