System configuration
| SN | Description | Quantity |
1 | High Frequency Generator 50KW | 1set |
| 2 | Xray Tube Max 630mA | 1set |
3
| High Voltage Cable | 2pcs |
| 4 | Collimator | 1set |

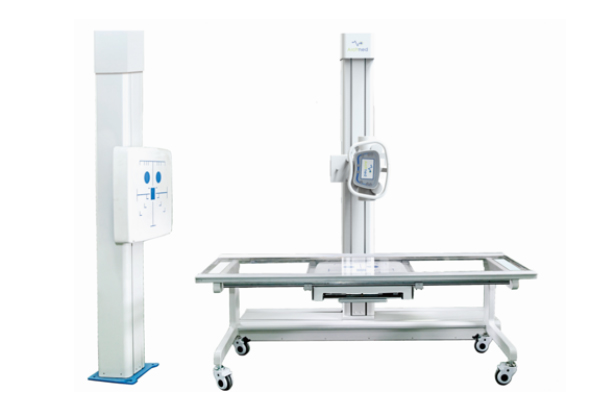

| 5 | Electric-Magnetic 4 direction Floating Radiography Table | 1set |
| 6 | Machine Frame with column track | 1set |
| 7 | Electric Bucky Stand 17*17inch | 1set |
| 8 | Condition Setting&Exposure Control Panel | 1set |
| 9 | CsI Flat Panel Detector and software | 1set |
| 10 | 23'' High Resolution LCD Monitor | 1set |
| 11 | DELL Image acquisition workstation | 1set |
Features
High Voltage Generator

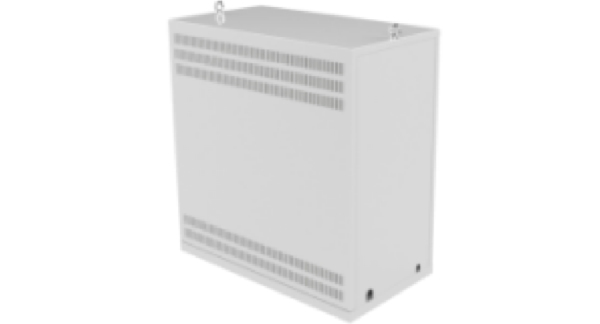

High kV, high power, short-term transient exposure, effectively improve the image resolution, make the image clear, and meet the needs of clinical comprehensive diagnosis.
Intelligent control of the system, easier operation, and greatly improved the stability of the X-ray output
Advanced high-frequency inverter technology is used to make random compensation for mA effect and improve mA accuracy.
Xray Tube Assembly Set

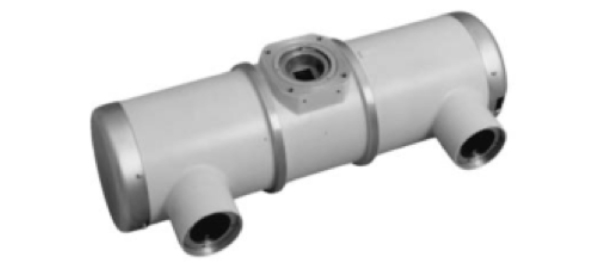

Small focus, rotating anode tube, high efficiency, less scattered lines, effectively improve image resolution, imaging effect is more clear
The CPU controls the X-ray tube load and heat capacity, making the X-ray output more stable and effectively extending the life of the tube. China tube and Toshiba Tube for options
Mechanical Frame
Excellent operating system, one-button programming, fully automatic positioning, making the tube & column movement easier and more convenient, tube column and bucky stand are linked synchronized movement, it is automatic positioning for chest radiography, no need doctor to do any manual calibration for the bucky position, avoiding repeated operations by the operator; easily complete multi-angle, various parts of the investment.
Flat Panel Detector

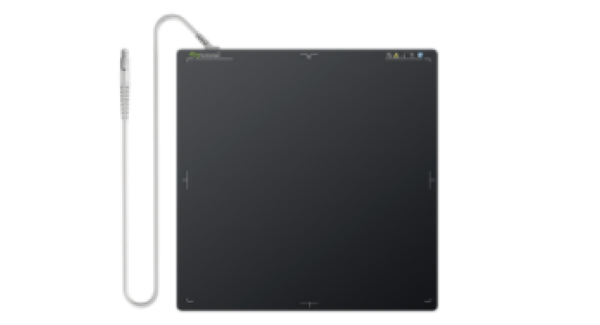

Venu1717X Flat Panel Detector is a 17×17 inch, tethered cassette-sized FPD for radiographic imaging. It Features a 139μm pixel pitch with direct deposition CsI, and with a reliable AED enables a smart workflow. It is the optimal choice for a high-end DR system. Light Weight, portable, can be taken out of the bed or chest frame, easily do some emergency radiography for patient who can not move freely.
Image acquisition workstation system
High Integration of High Voltage generator software and image acquisition software. Set all generator parameters through image Acquisition working Station
Image Processing Function: Image width, position adjustment, Gray Scale Inversion, Roaming Amplification and Magnification, rotation,explanatory note, all types measurement, cutting, balancing, wave flitering, data information management.
Image output:Support different rules and format image, Support image-text report system.
All-in Design Friendly Radiography Control Panel for Condition Setting & Exposure, Cover all Patient type and All Body Position
Optional Luxury Mobile Radiography Table
Save Space and the transparent organic glass material surface also compatible use for C-arm System
Technical Parameters
Model No | ACM-DR500 |
X-ray high-frequency high-voltage generator | Power Output | 50KW |
Tube Voltage | 40-150KV |
Tube Current | 30-630mA |
Power Voltage | 380V |
Xray Tube Assembly | Small Focus | 0.6mm |
Large Focus | 1.2mm |
Anode Heat Capacity | 240KHU |
The maximum voltage | 150KV |
Maximum current | 630mA |
Bed and chest frame system | Electric-Magnetic Fixed Bed (L2000mm*W720mm*H750mm) |
Column Up and down movement range:0-1400mm |
Column horizontal movement range:1600mm |
Chest stand bucky up and down movement range:0-1400mm |
Chest stand bucky and the tube are synchronized to move up and down |
Tube rotation Angle:±190° |
Flat Panel Detector | Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 427×427m2 |
Pixel Matrix | 3072×3072 |
Pixel Pitch | 139μm |
Spatial Resolution | 3.6lp/mm |
AD Conversion | 16bit |
Data Transmission | Gige |
Trigger Mode | AED/Software/Prep |
Preview Image Time | 3s |
Full Image Time | 5s |
Dimensions | 460×460×15mm |
Weight | 4kgs |
Power Dissipation | 30W |
Image acquisition workstation system | Computer | DELL Brand |
Hardware | CPU: i3, memory ≥ 8G; hard disk ≥ 1T |
Display | 23" LCD High Resolution Monitor |
